TIAGOR

FATC

mix of conditioned and/or heated air that will, as

quickly as possible, raise or lowers the interior

temperature to your preference.

D. When you set the temperature to its lower limit

(Lo) or its upper limit (Hi), the system runs at full

cooling or heating only. It doesn’t regulate the

interior temperature.

Semi-automatic Operation:

You can manually select various functions of the

climate control system when it is in fully automatic

mode. All other features remain automatically

controlled. Making any manual selection causes

the word ‘AUTO’ in the display to go OFF and

overridden setting is displayed. System will remain

in semiautomatic mode till ‘AUTO’ is re-pressed.

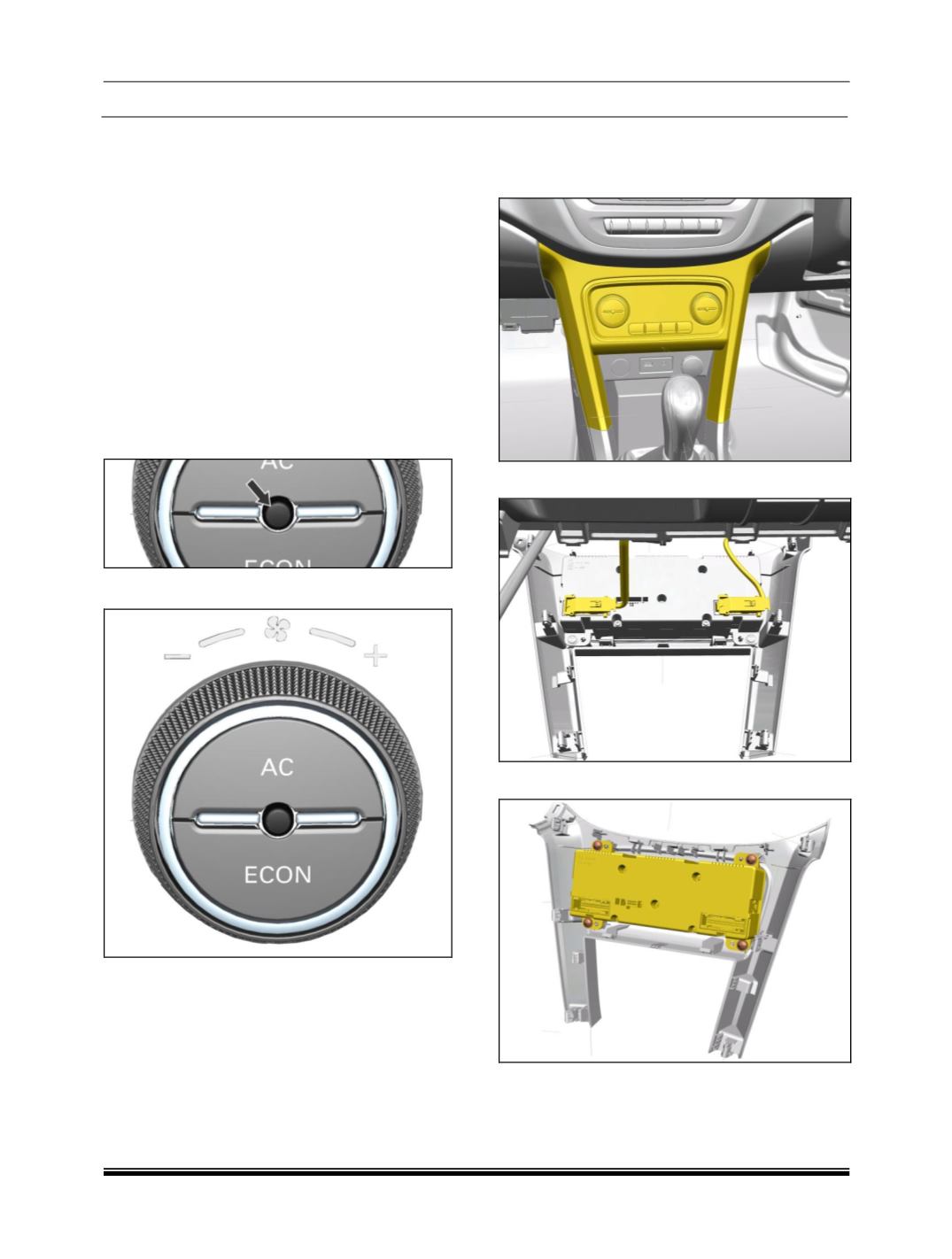

10. INCAB

SENSOR

11. BLOWER SPEED CONTROL KNOB

A. Rotate the knob clockwise to increase the blower

speed up to MAX 7 speed, whereas anticlockwise

would reduce the speed up to ‘SPEED 1

B. In ‘AUTO’ mode, the FATC system will regulate

the blower speed automatically.

REMOVAL

1. Remove the top console panel along with control

panel.

2. Disconnect the electrical connection of panel.

3. Remove four mounting screws of control panel.

4. Take out the control panel.

REFITMENT

For refitment follow reverse procedure of removal.
