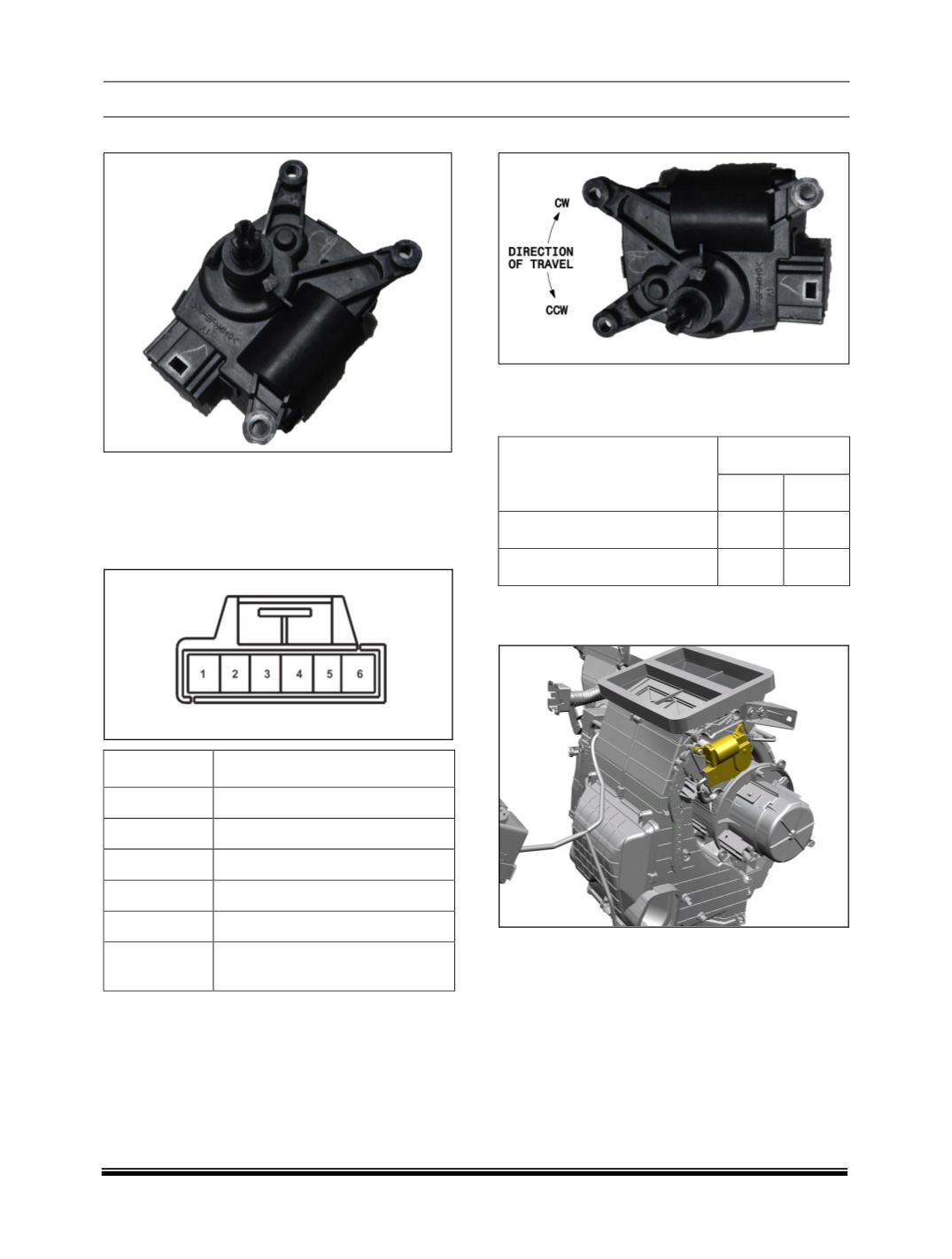

D. AIR INLET ACTUATOR.
The actuator used to operate the air intake door is a
bi-directional with no feedback actuator. It controls
the air intake door through the air intake control
voltage.
PINOUT
PIN NO
DESCRIPTION
1
-ve (Ground)
2
feedback potentio meter
3
+ve
4
Not Used
5
+ve for CW & -ve for CCW
6
-ve ground for CW & +ve for
CCW
INSPECTION
When 12.0V supply is given to pin 5 and pin 6, the
movement of the actuator should follow the following
table.
Motor Movement
Input
Pin 5
Pin 6
Clockwise rotation
+ VE
- VE
Counter Clockwise rotation - VE
+ VE
LOCATION
1. Mode Actuator
To operate mode flap inside HVAC Box, This Flap
change air flow direction inside BOX to get air in
different modes. e.g. Face, Foot, Defrost etc.
