OIL COOLER
62
TRANSMISSION
WATER
OIL
COOLER

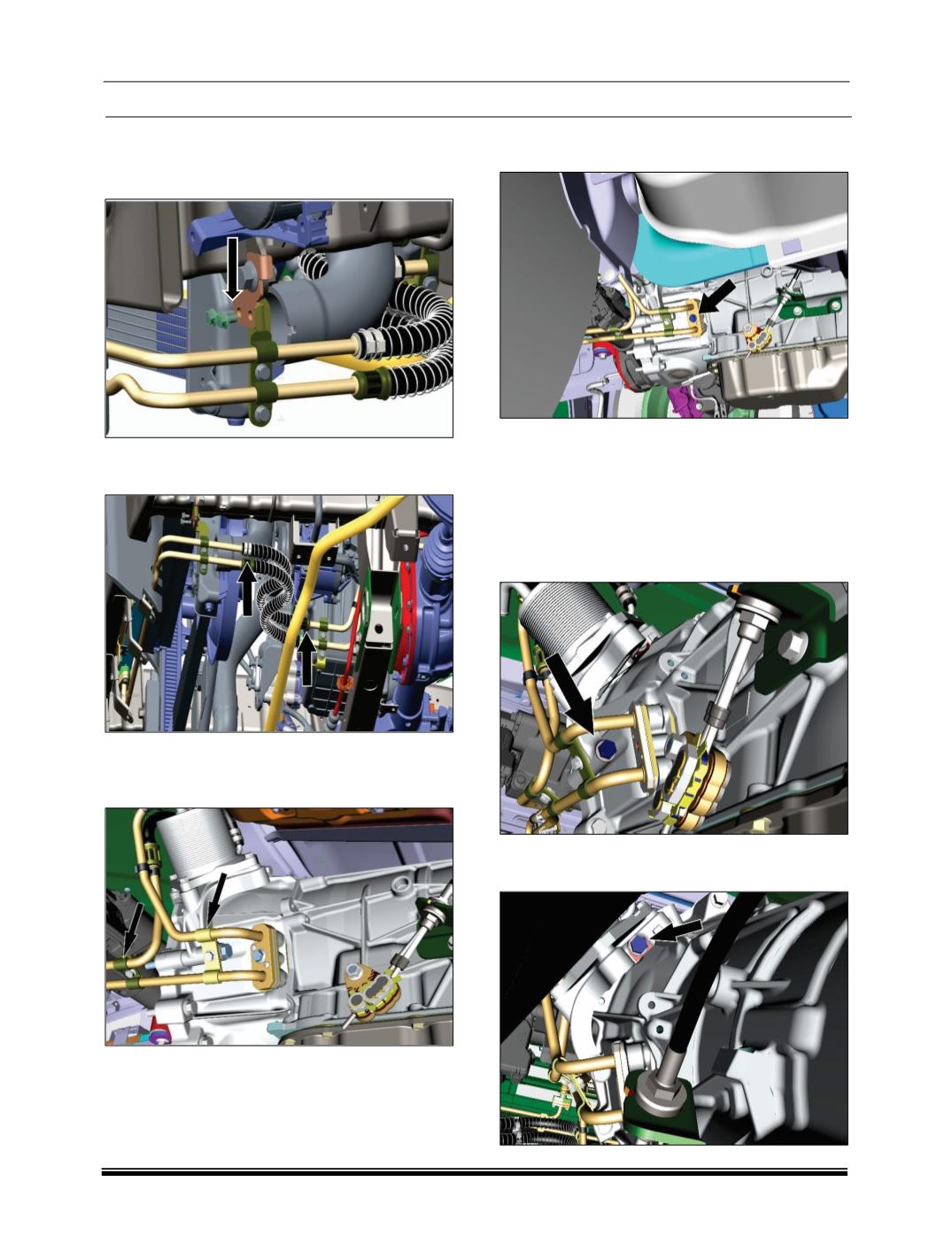

REMOVAL PROCEDURE:
1. Remove the cooling line bracket and W/H clip.
2. Remove the step less ear clamps (which are not
reusable) without damaging the hose and tube.
3. Remove the clamp plates of small TAOC end
and big TWOC end transmission oil cooling
system.
4. Remove the TWOC cooling line assembly
clamp plate.
NOTE
Be careful: some amount of the automatic
transmission fluid may flow out the holes. Place a
container under transmission cooler holes.
5. After removing the TWOC clamp plate you have
some free space to remove the water oil cooler
mounting bolt.
6. Removing another M10 Hex bolt of water cooler
mounting.
