OIL COOLER
60

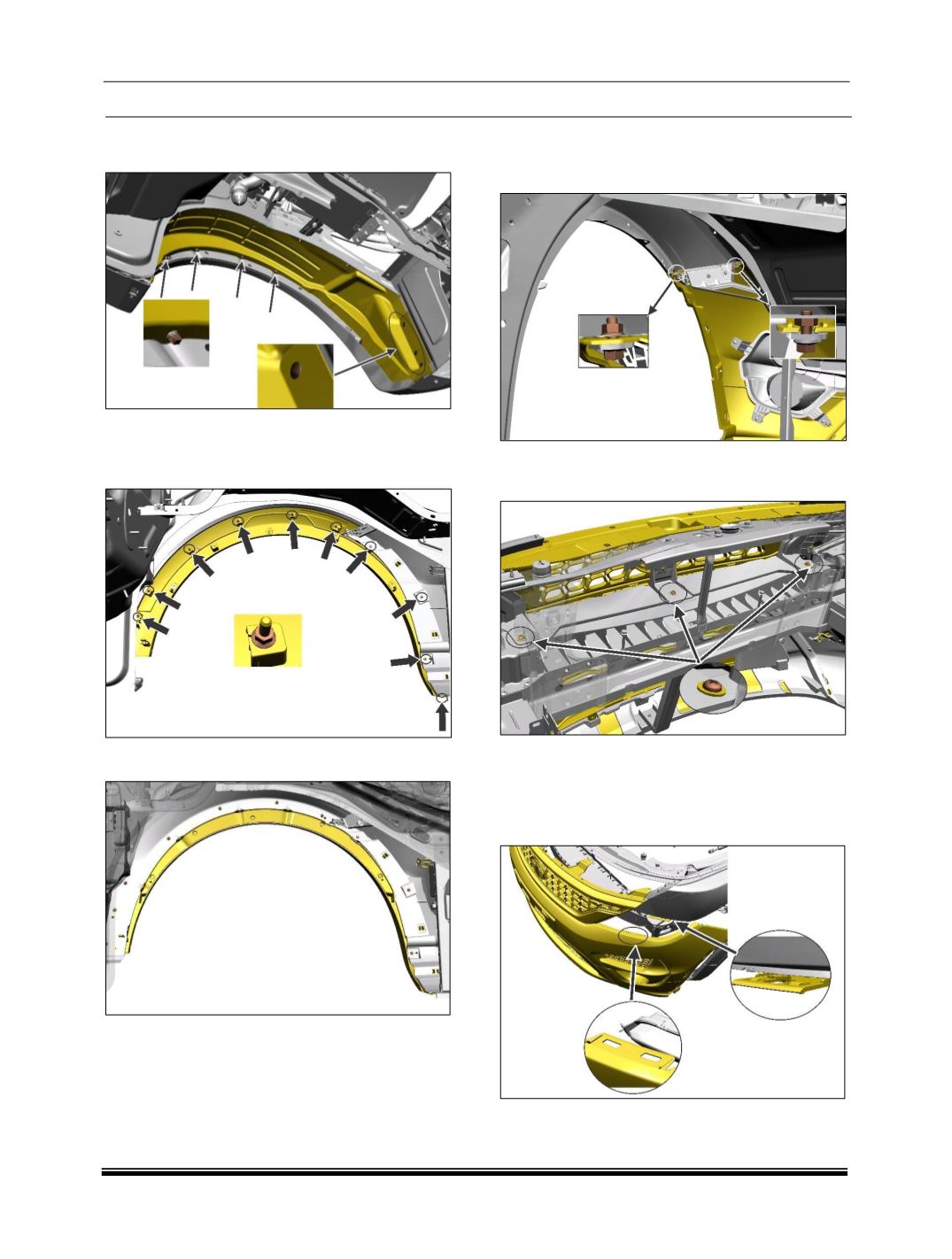

7. Remove all the clips and take out the liner front
wheel house outer from the vehicle.
8. Loosen and remove two mounting screws from
the wheel cladding. Follow the same
procedure at the other end also.
9. Remove cladding support bracket LH and RH.
10. Loosen and remove two mounting screws,
access the screws from the wheel arc end.
Follow the same procedure at other end.
11. Removal of three mounting screws & washer
from the mid area of the bumper.
12. Disconnect fog lamp connectors and remove
the bumper by unsnapping at 4 locations (i.e.
Bumper holding bracket LH/RH at fender
location and Head lamp mounting bumper
support bracket LH/RH).
