HEXA

GEAR BOX

DISMANTLING

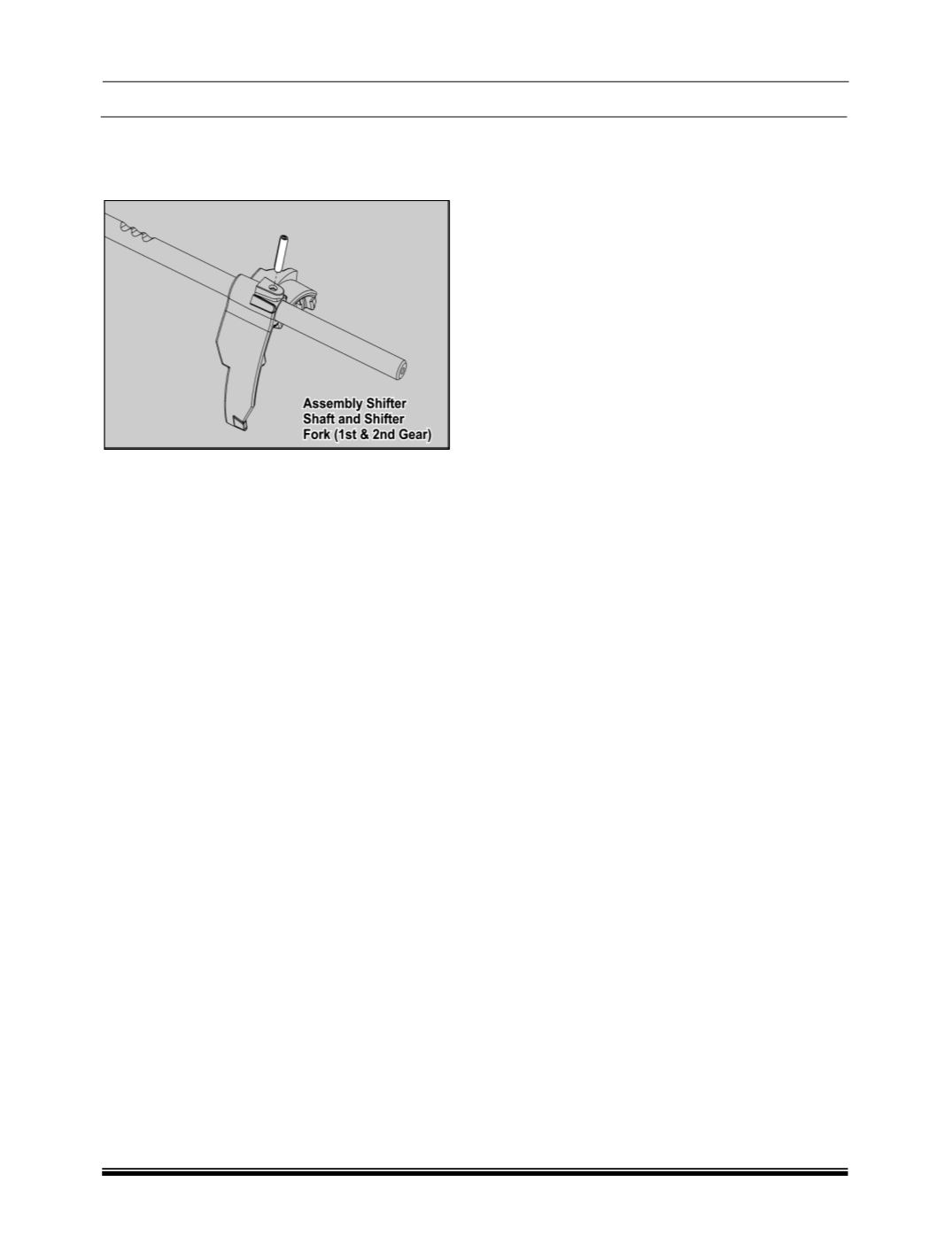

Press out the spiral pins and remove the shifter fork

from the shifter shaft.

Follow the same procedure for other shifter shafts.

INSPECTION



Burrs, damages, wear of shafts, dogs and de-

tents.



Conditions of spiral pin mounting in forks, spac-

ers and dogs.

NOTE

Before assembly refer component identification sec-

tion for ensuring the correct shifter for is placed on

their respective shaft.

ASSEMBLY

For assembly follow the reverse procedure of re-

moval.
