HEXA

GEAR BOX

DISMANTLING

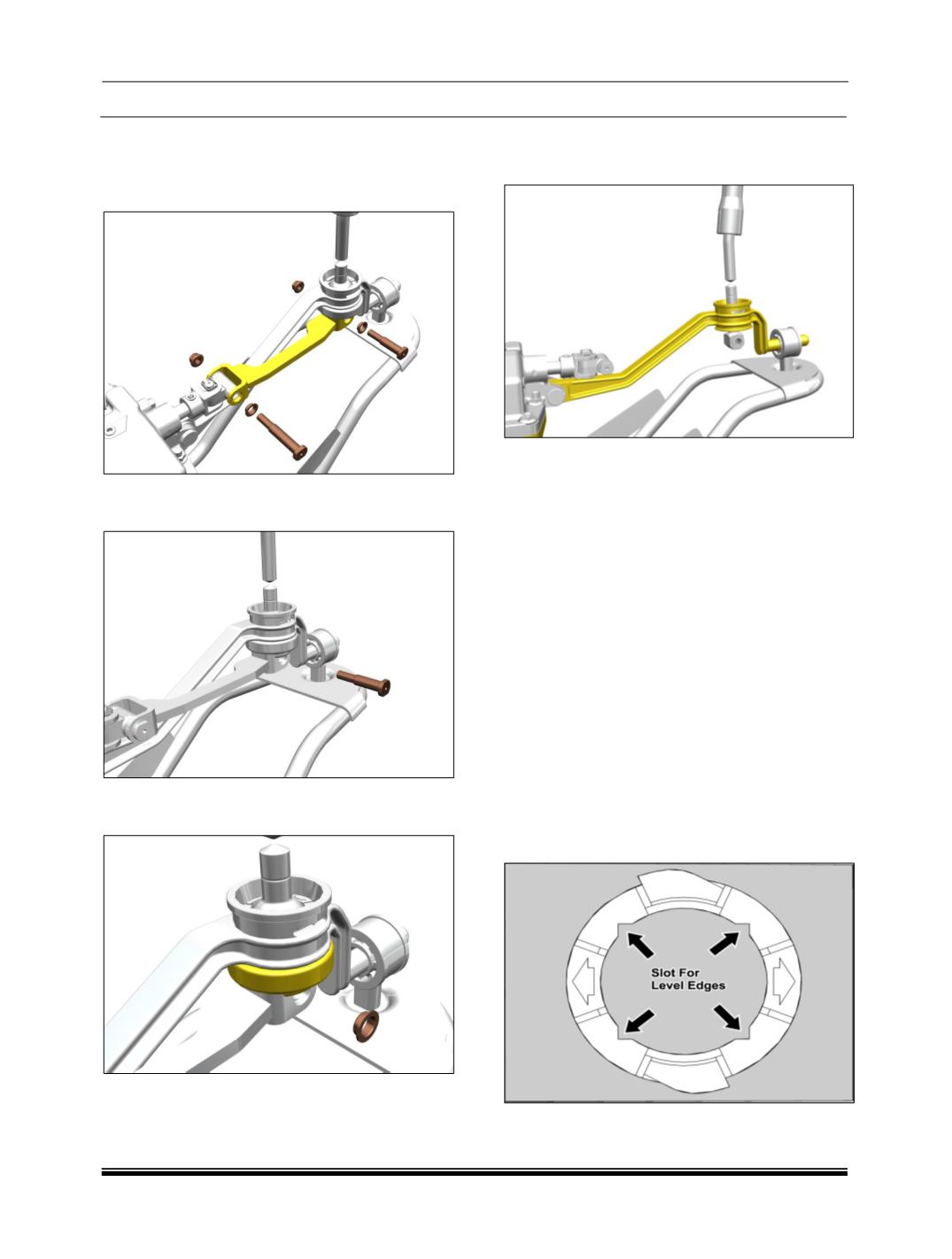

1. Loosen and remove 2 nuts, take out the shift link

rod from the ‘C’ clamp.

2. Take out the pin from bottom side of the gear

shifter lever and take out the ‘C’ clamp.

3. Remove the bushes (2 Nos.) from the shifter

lever and pull out the rubber bellow.

4. Support the extension arm and pull the shifter

laver assembly upward from extension arm.

NOTE

While doing this the bush will get damaged, remove

the bush from the lever. Always use new bush and

“O’ ring at the time of assembly.

INSPECTION

1. Check condition of bushes if required replace the

same with new bushes at the time of assembly.

2. Check the rubber bellow.

3. Check the extension arm for any crack or dam-

age.

ASSEMBLY

1. Heat the plastic bush by immersing it in the hot

oil.

2. Apply a light coat of grease 3% MOS 320 over

gear shifter lever ball seat.

3. Press the bush over the shifter lever ball and

allow the plastic bush to cool down such that it is

seated properly on the lever ball.
