GEAR BOX
51

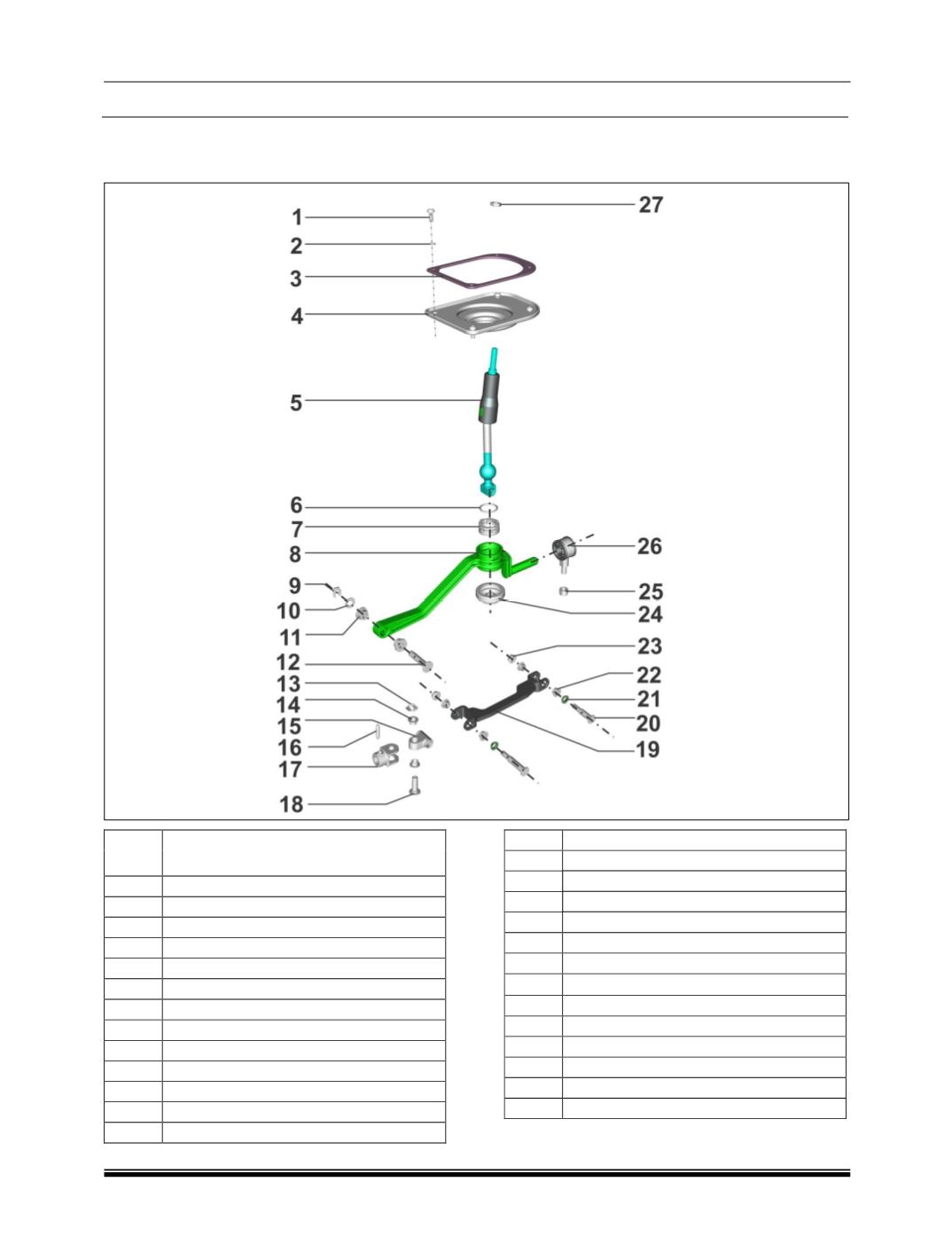

J. NON-ADJUSTABLE SHIFTER LINKAGE
CONSTRUCTIONAL DETAILS
SR.
NO
DESCRIPTION
01
CR Pan HD Screw M6X16
02
Spring Washer B6
03
Clamping Plate
04
Sealing Bellow
05
Assy Gear Shifter Lever
06
O-Ring D28X2
07
Bush Gear Shift Lever Ball Seat
08
Extension Arm
09
Retainer Plate
10
Spring Washer A10
11
Rubber Bush (Extension Arm)
12
Pin (Extension Arm Bracket)
13
Retainer Plate
14
Bush
15
Shift Link Yoke
16
Table Spiral Pin
17
Shifting Yoke
18
Pin (Fixed Yoke)
19
Shifting Plate (Shift Link Assy)
20
Pin (Shift Link) Extension Arm End
21
Collar Bush
22
Bush
23
Hex FL Nut AM8
24
Rubber Bellow
25
Nyloc Nut M10
26
Rubber Bush
27
Hex Thin Nut M10X1
