HEXA

GEAR BOX

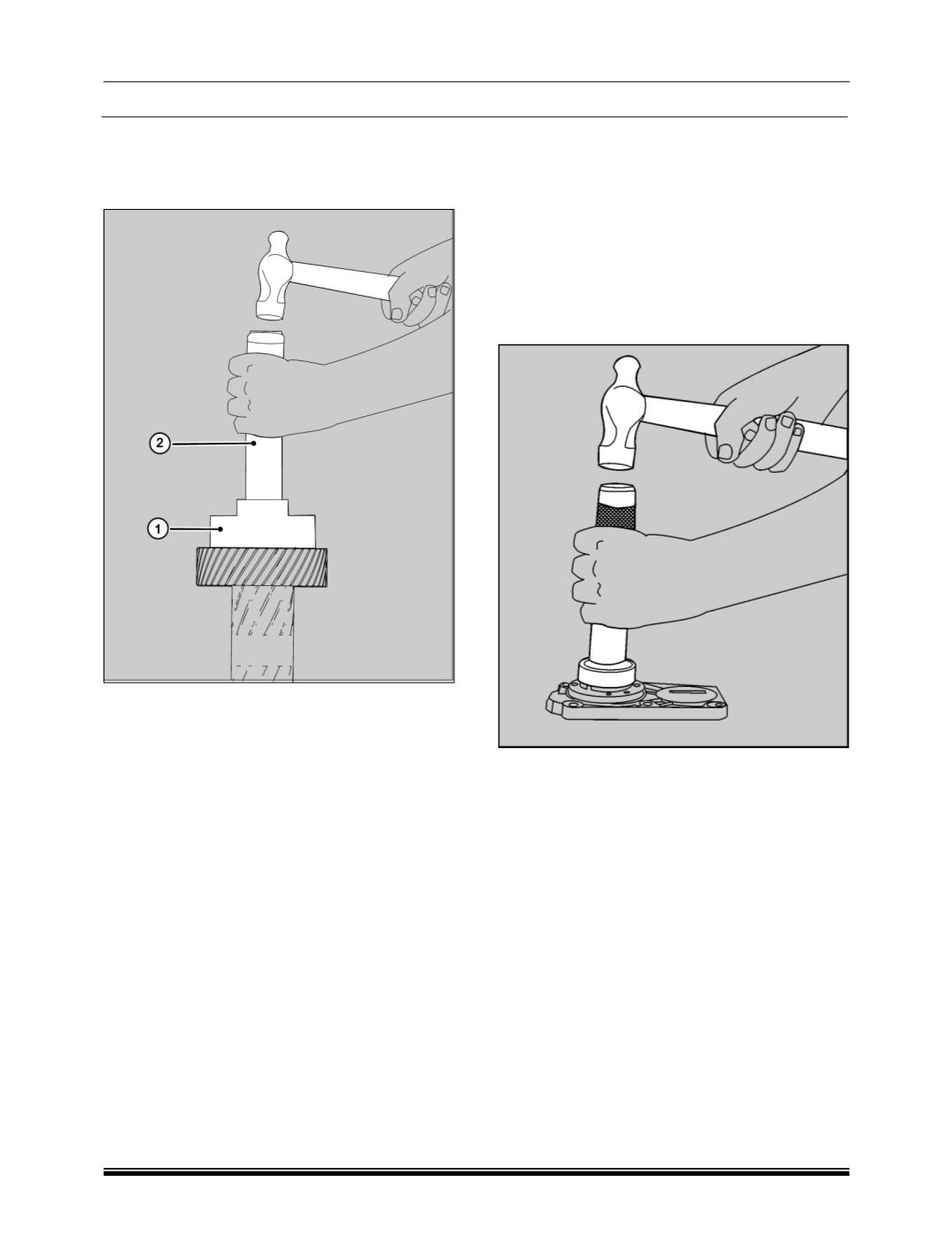

3. Press inner race of taper roller bearing over coun-

ter shaft 5

gear side end with help of drift (Part.

No. 2654 5890 26 06) (1) and handle (Part No.

2640 5890 35 11) (2) .Place outer race over it.

4. Reverse the assembly, slide spacer and press

another taper roller bearing inner race. Place out-

er race over it. Counter shaft Taper roller half

bearing preloading by 0.03 to 0.06mm.

E. FRONT COVER

DISMANTLING

1. Press out the oil seal from the front cover with the

help of suitable punch.

2. Press out the cylindrical pins if required.

ASSEMBLY

1. Push the oil seal with the help of drift (Part No.

2654 5890 26 07) and handle (Part No. 2640

5890 35 11).

2. Press the cylindrical pin if removed.
