HEXA

GEAR BOX

REVERSE IDLER GEAR SHAFT

DISMANTLING

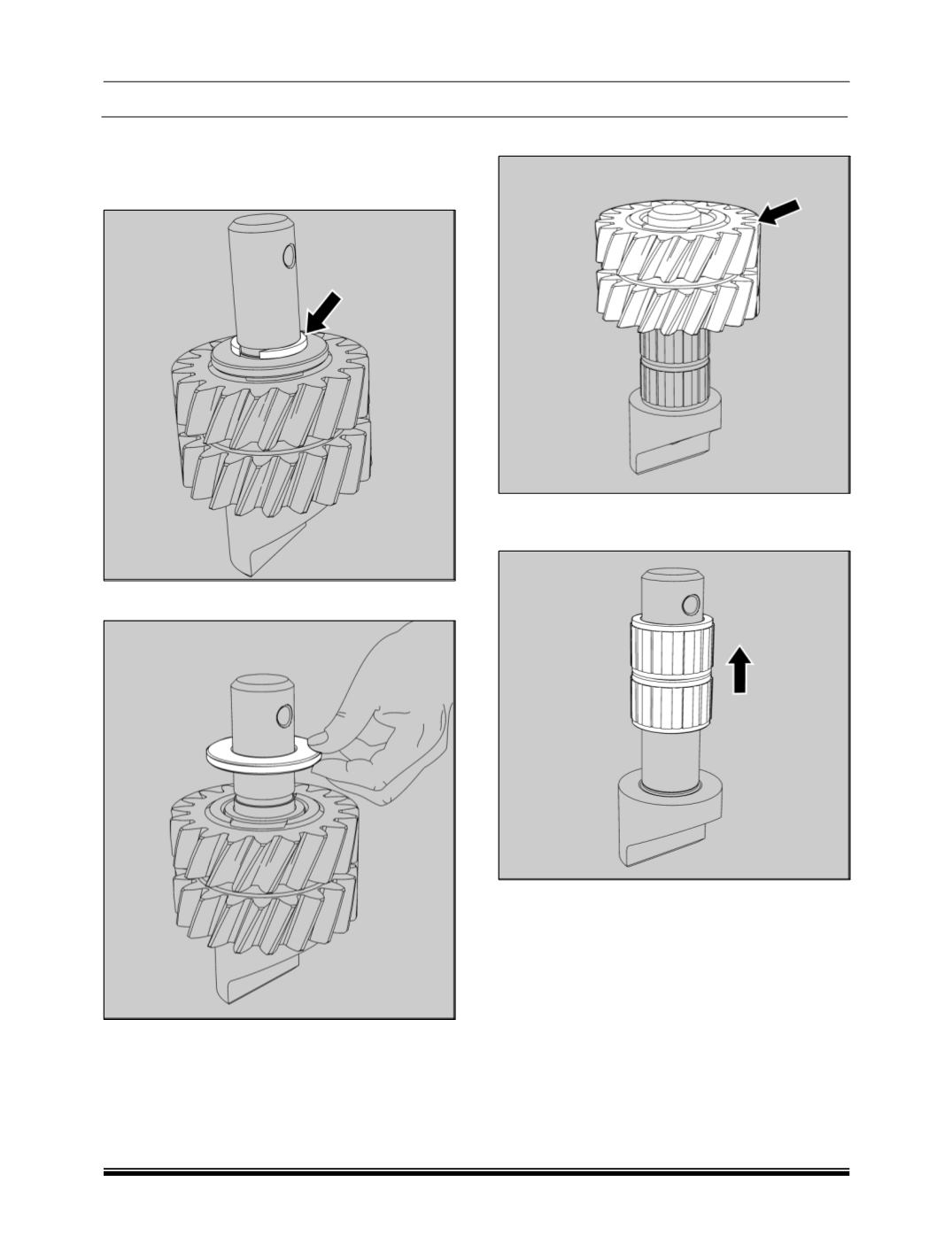

1. Remove the snap ring.

2. Remove the spacer.

3. Take out the reverse idler gear from idler shaft.

4. Remove needle cage bearings from the reverse

idler shaft.

INSPECTION



Gear teeth for breakage, wear, pitting, scoring

and overheating marks.



Bearing seats for rotation marks.



Make sure that the needle bush bearing is

crimped to the reverse idler gear correctly.

ASSEMBLY

For assembly follow reverse procedure of removal
