4. If sensor doesn’t have slip ring, please mount one slip ring from spare parts.
5. Don’t apply radial as well as axial force on the sensor and connector.
6. Snap fits need to be released properly.
7. Insert sensor into holder very gently to avoid slip ring twisting with bumper hole.
Check, if slip ring is mounted centrally.
Don’t apply torque to the membrane of the sensor or sensor covering and housing (this may lead to
internal connection wire brakes). If torque is applied to sensor, ensure to discard the sensor.

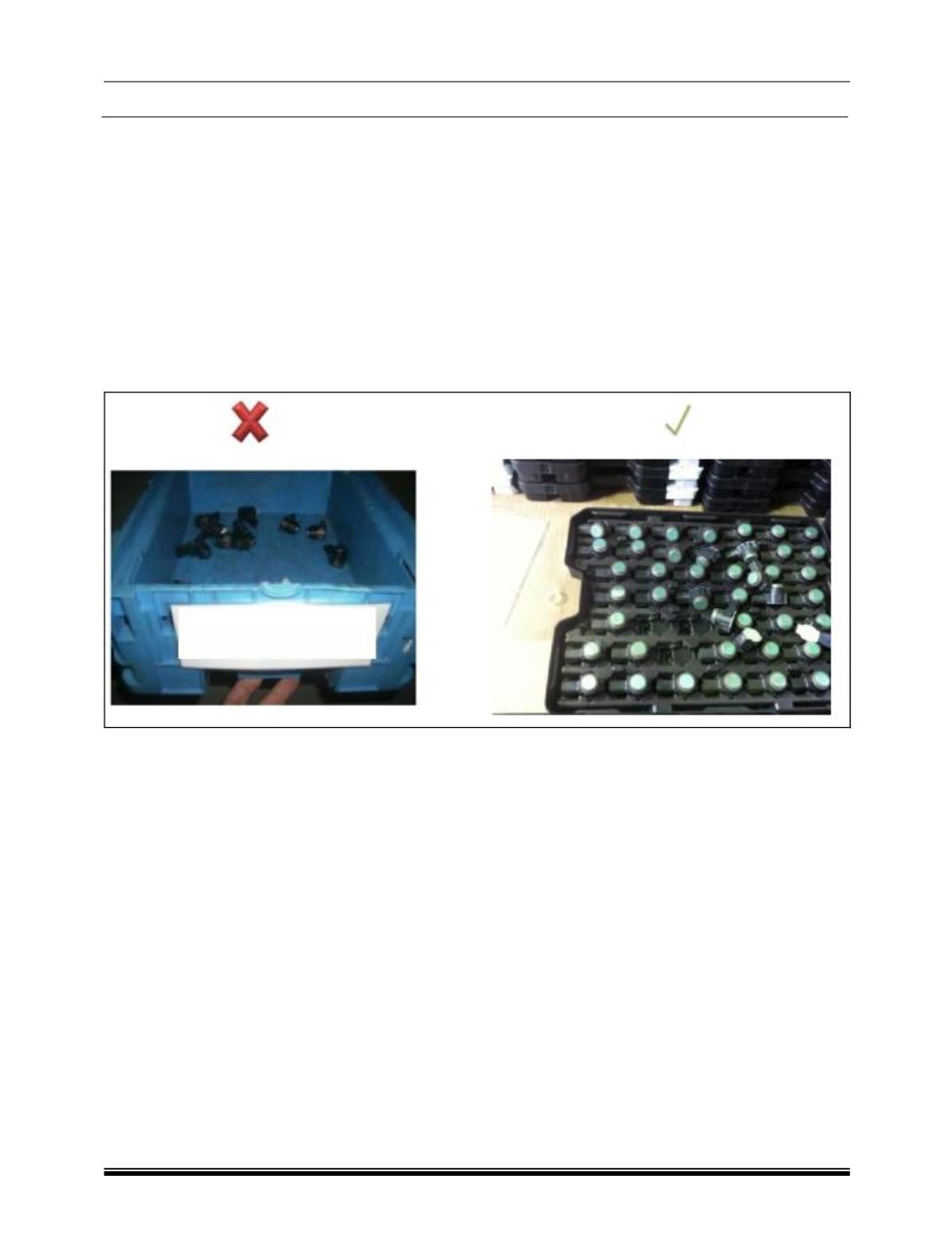

Do not store sensor and ECU messy.
Wear gloves
Don’t touch connector pin, EPA (electrical Protected Area) and LM ECU.
