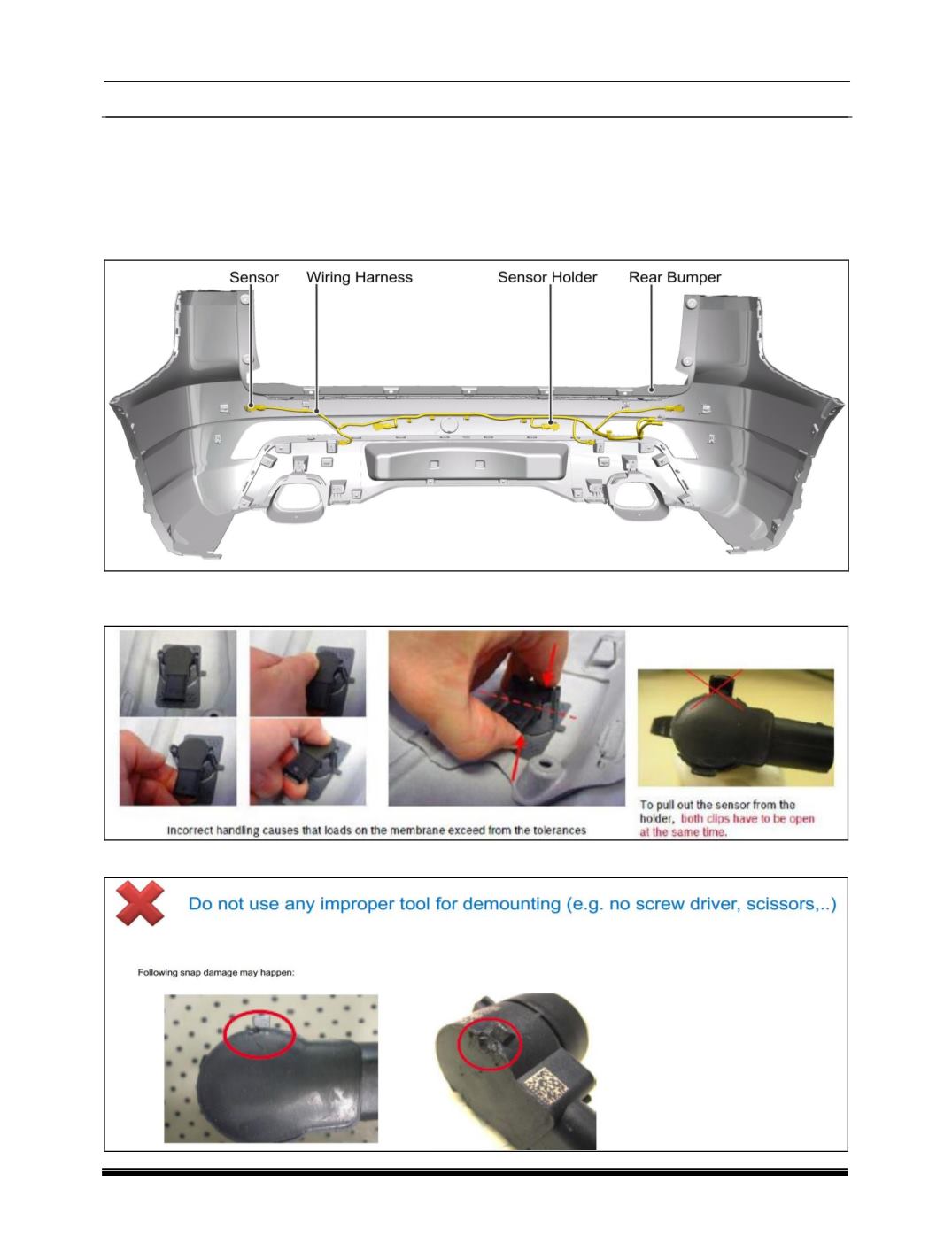

17.Sensor Fitment to the bumper:

Due to any reasons, if sensor damages physically, need to replace the sensor with the new, Sensor lost or

PDC system malfunctioning following sequence of operations are required to replace the sensor on rear

bumper.

Step 1:

Remove the bumper carefully without damaging the wiring harness. Hold the bumper until wiring

harness is carefully ejected from the connectors.

Step 2: Gently remove the damaged sensor from the snap fitted holder. Don’t put heavy force while

removing. This may cause sensor holder loosening/eject out from the bumper.

Step 3: Remove the sensor wiring harness gently without damaging mating connector lock.
