8.9.5 WINDOW WINDING SWITCHES

DESCRIPTION:

Window winding switches are used to move the window glasses UP & Down. It gives the signal to window

winding controller. Then window winding Controller sense the signal from low current switches and operate

the window motor according to switch position (

Manual UP/ Manual Down/Auto Down

There is an individual switch at each window and a set of switches in the driver's door, so the driver can

operate all the windows. Switches are used only to provide a mode signal to controller for further operation,

motor current does not pass through the switch.

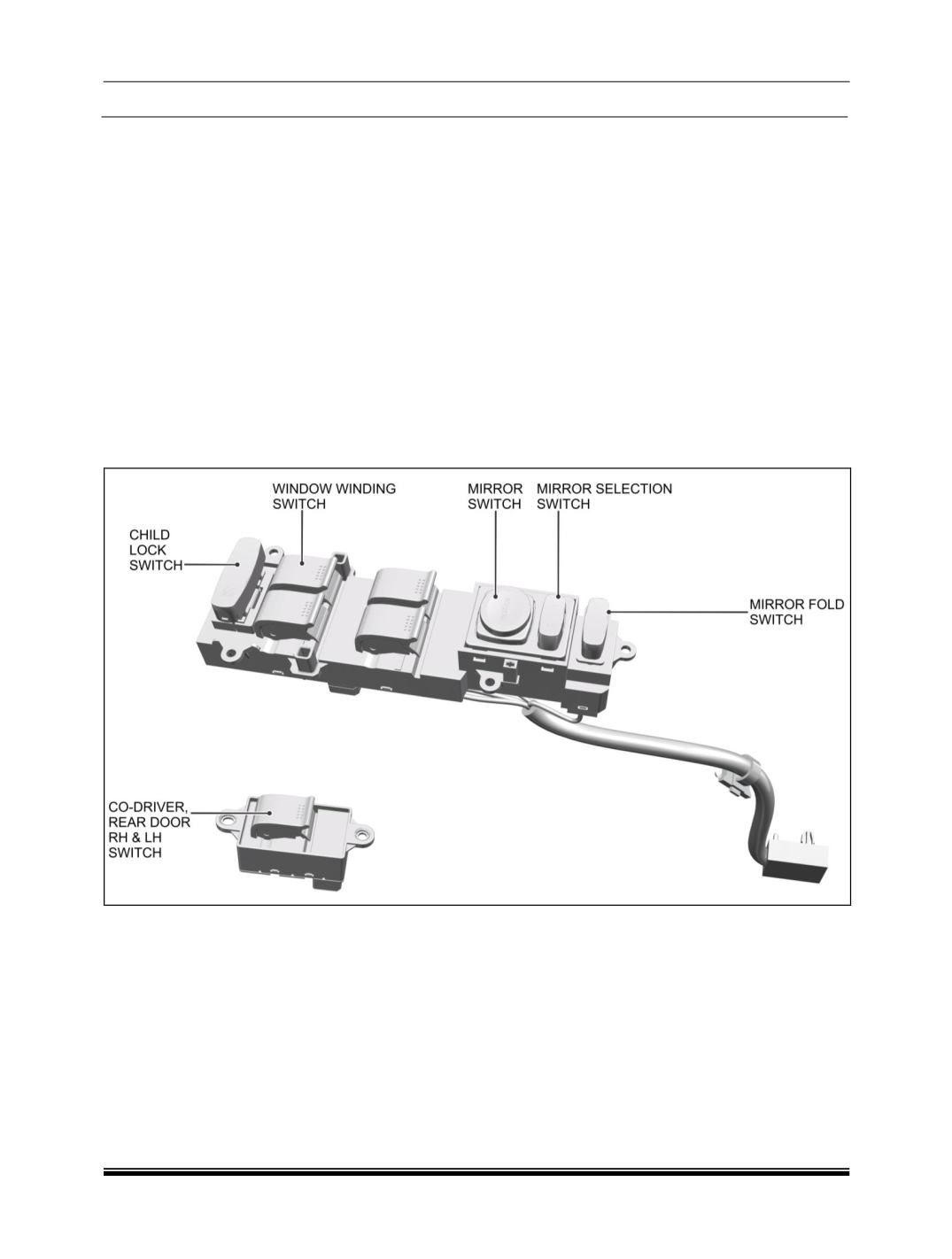

Driver door window winding switch consist of following switches:

1. Window winding switches for all doors

2. Power mirror switch

3. Mirror fold switch

4. Child lock switch

Co-driver, LH & RH window winding switch consist only window winding switch.

WINDOW WINDING SWITCHES:

Each window winding switch has four positions:



Off



Manual Up (MU)



Manual Down (MD)



Auto Down (

)

For operational details refer window winding

controller section

CHILD LOCK SWITCH:

In switch circuit, driver has an option to disable the

rear switches by locking the window lock switch.

The rear power windows operation is disabled

when the window lock switch of the power window

master switch is pressed. The rear power windows

operation is enabled when the window lock switch

is pressed again.
