8.9.4 FASCIA SWITCH

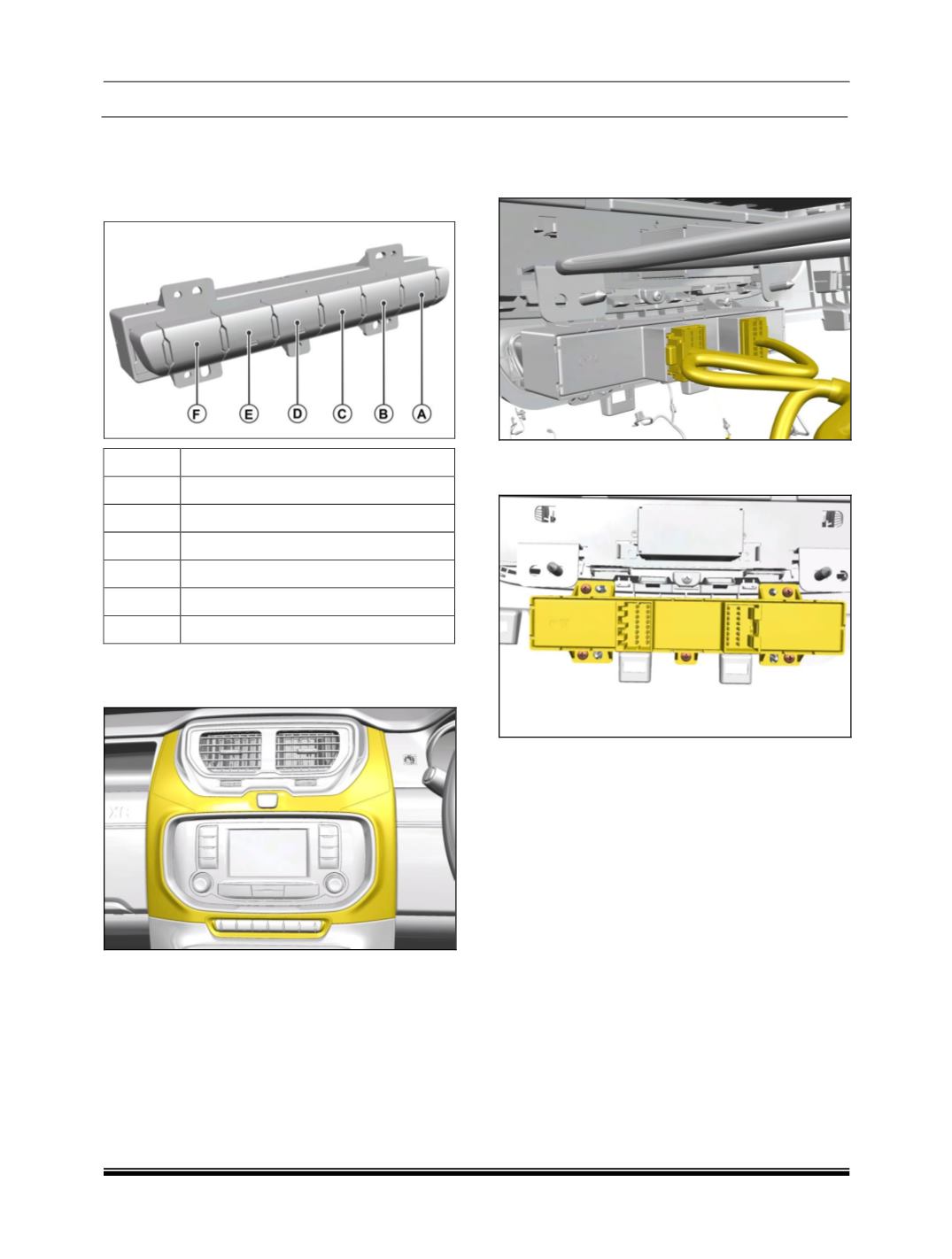

Fascia Switch consists of Door Lock/Unlock,

Electronic Stability Program, Hill Dissent Control,

PDC and 4X2 switch (applicable for AT only).

SR. NO. DESCRIPTION

A

LOCK/UNLOCK SWITCH

B

ESP OFF SWITCH (if applicable)

C

HDC SWITCH

D

PDC SWITCH

E

4 X 2 SWITCH

F

DUMMY

FASCIASWITCH PANEL REMOVAL

1. Carefully pull out fascia switch cover.

2. Disconnect electrical connection from the

fascia switch assembly.

3. Remove five screws from the fascia switch

assembly.

4. Take out the fascia switch panel.

INSTALLATON:

1. Fit the fascia switch panel on fascia cover.

2. Tight the mounting screws of fascia switch

panel.

3. Fit the electrical connection in fascia switch

panel.
