ELECTRICAL
120

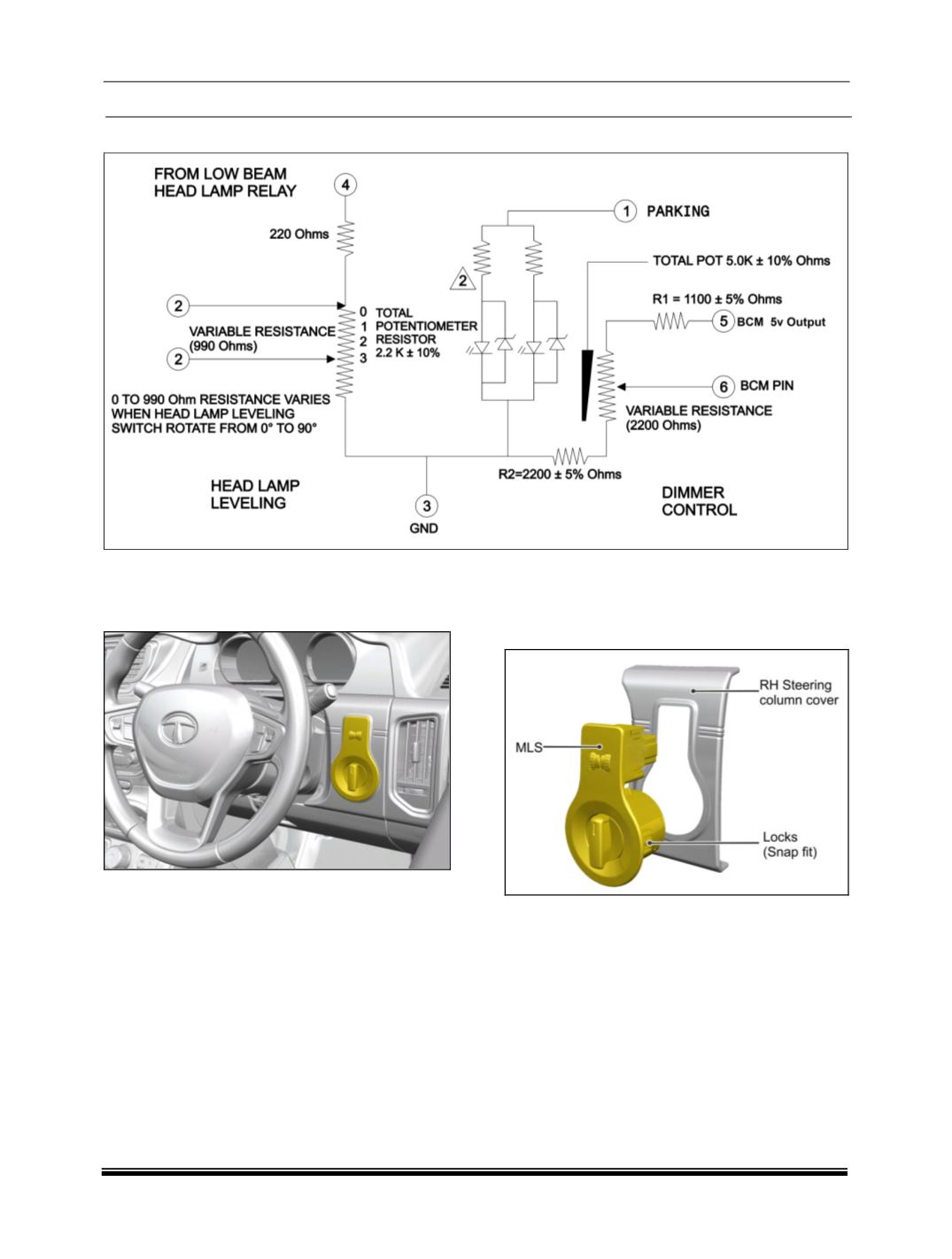

D. HLL AND DIMMER CONTROL SWITCH:
REMOVAL:
1. Carefully pry out the RH side steering column
cover.
2. Disconnect the electrical connection of master
light switch.
3. Push the master light switch from the back by
pressing the locks.
REFITMENT:
1. Fit the master light switch into the cutout
provided on steering column cover. (
Snap
fitted
)
NOTE:
All locks should be properly fitted. There
should not any damage in the locks area.
2. Connect the electrical connection of switch.
3. Fit the steering column RH side cover. (
Snap
fitted
)
