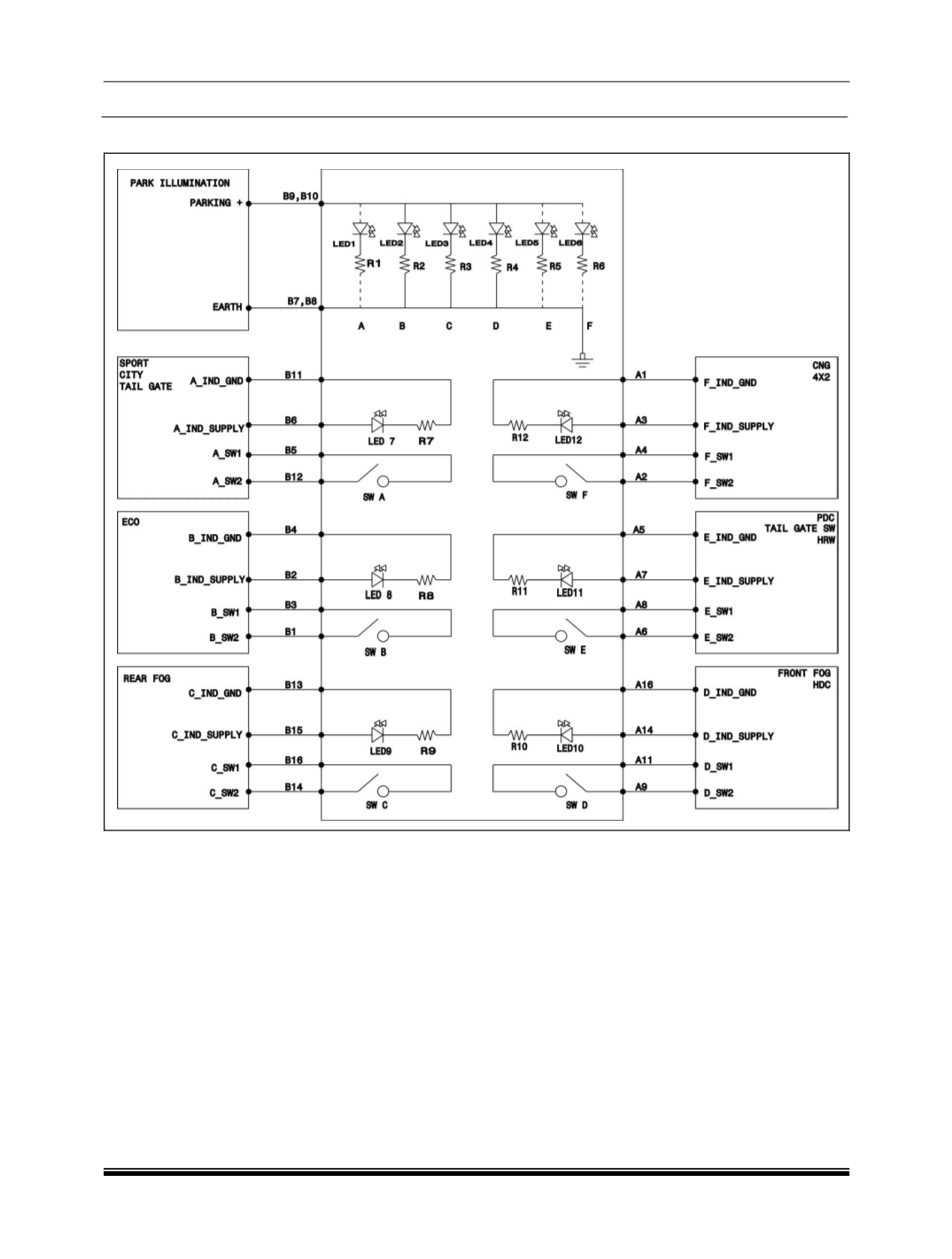

CONNECTION DIAGRAM OF FACIA SWITCH

SPECIFICATIONS:



Operating temperature: -30ºC-85ºC



Storage temperature: -40 ºC-95ºC



Vehicle electrical system voltage: 12V DC



Operating voltage: 9-15V DC



Testing voltage:

13.5±0.5V DCs



Voltage drop: 20mV MAX



Wetting current: 10mA



Contact bounce: on engagement of switch contact bounce duration should be less than 20m sec.
