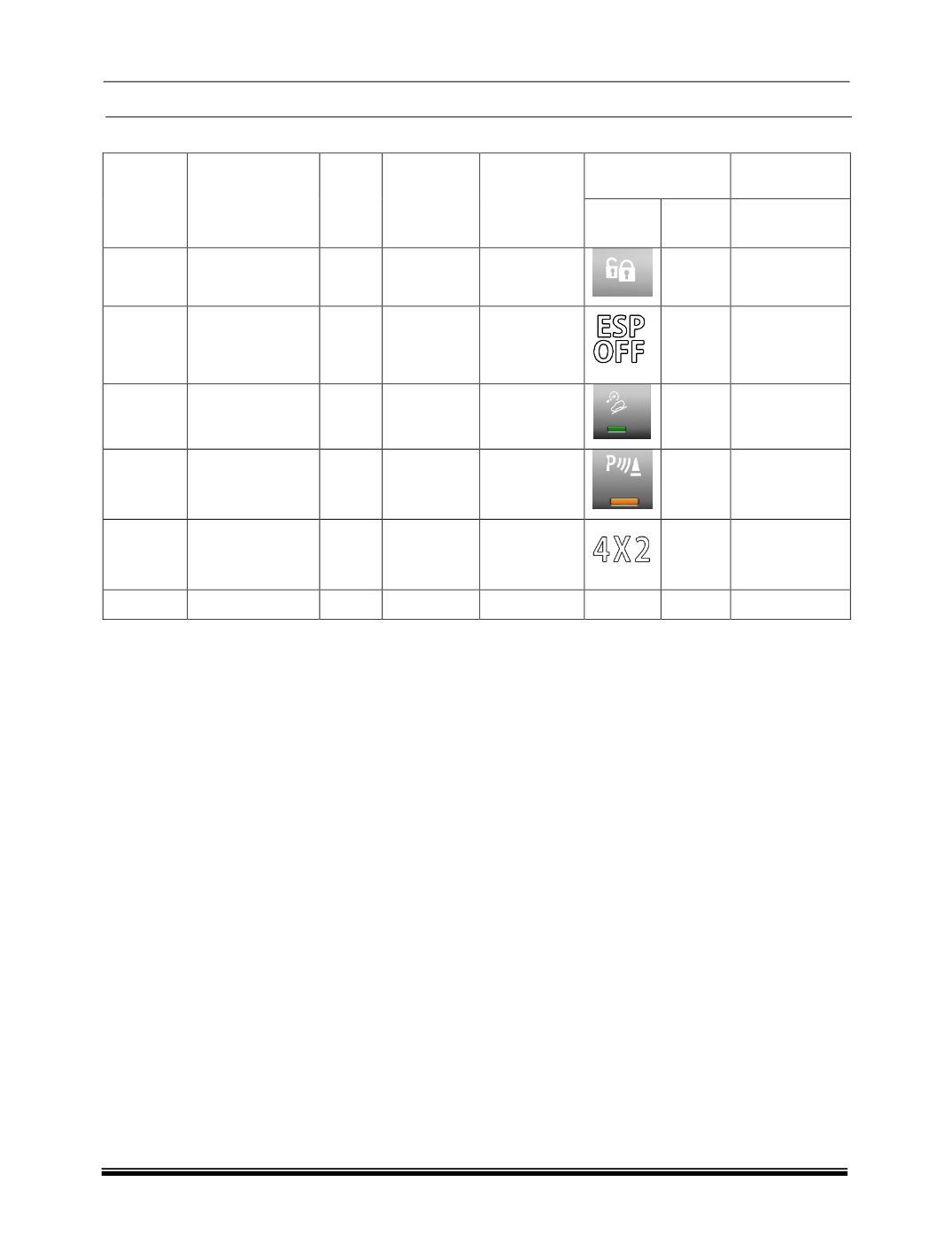

Fascia Switch Variant Matrix
Switch
Location
DESCRIPTION Force
CURRENT
RATING
SYSTEM
VOLTAGE
Park Illumination
On state
illumination
Symbol Color
Color
A
LOCK /
UNLOCK SW
3±1N
0 – 50mA
12V DC
WHITE
--------
B
ESP OFF SW
3±1N
0 – 50mA
12V DC
WHITE
--------
C
HDC SW
3±1N
0 – 50mA
12V DC
WHITE
GREEN
D
PDC SW
3±1N
0 – 50mA
12V DC
WHITE
AMBER
E
4X2 SW
3±1N
0 – 50mA
12V DC
WHITE
AMBER
F-
DUMMY SW
----
----
----
----
----
----
