ELECTRICAL
116

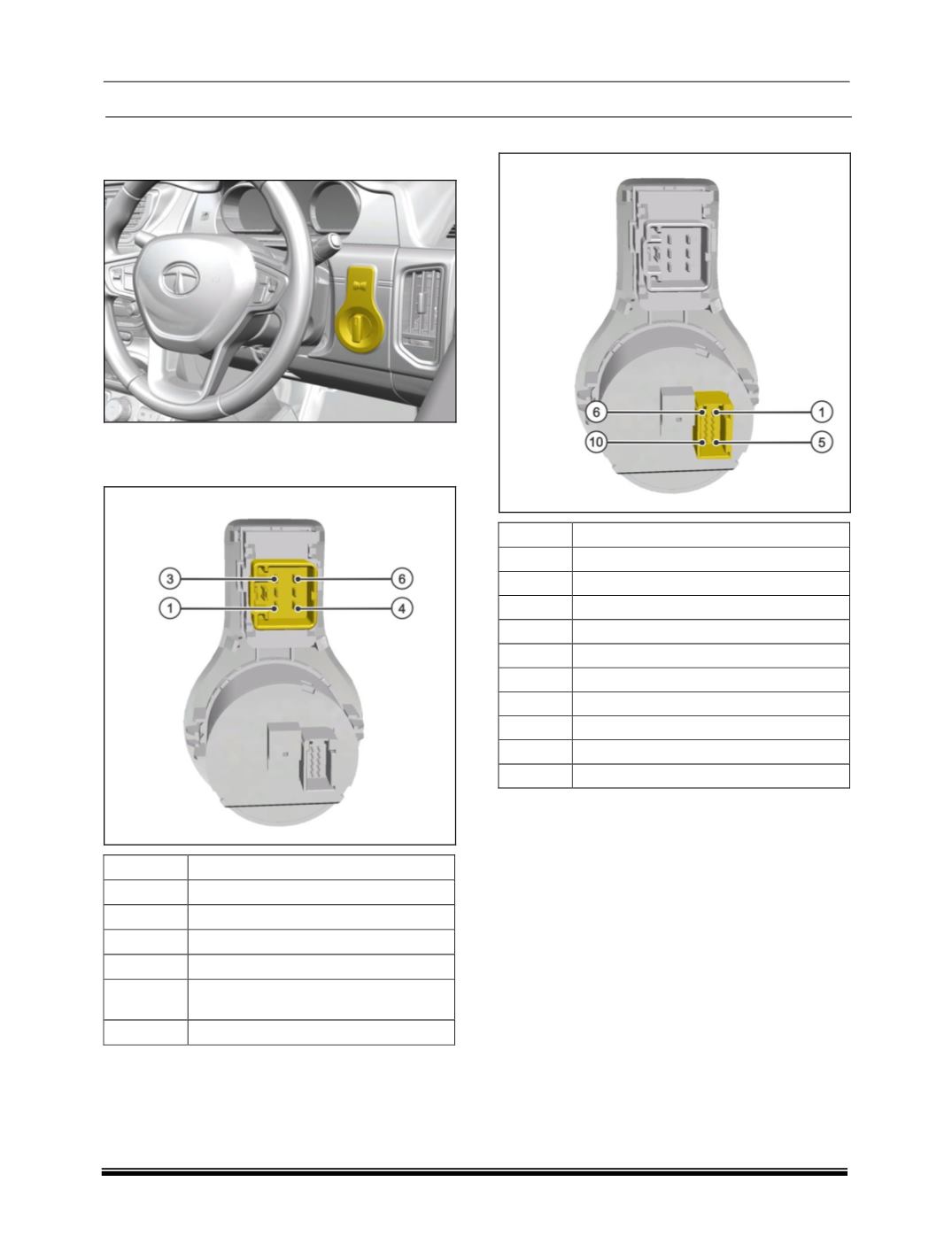

LOCATION:
It is fitted on RH side steering column cover.
PINOUT DETAILS:
HLL& DIMMER SWITCH CONNECTOR:
PIN NO DESCRIPTION
1
Parking
2
Head Lamp leveling
3
GND
4
From low beam head lamp relay
5
Parking relay LH output BCM Pin no.
A- 32
6
BCM Pin No. D - 20
KNOB CONNECTOR:
PIN NO DESCRIPTION
1
Head Lamp(
HL
)
2
NC / AUTO (
Optional for auto mode
)
3
Parking Lamp (
PL
)
4
Ignition supply( NC)
5
Front Fog lamp (
FFL
)
6
Gnd
7
Rear Fog lamp(
RFL
)
8
Battery supply (Ground)
9
Night parking (
TFL
)
10
Parking PWM dimming signal
