8.8.12 FLOAT LEVEL SENSOR

Float level sensor gives the information about the

water level in washer bottle to the instrument

cluster.

NOTE:

Float Level Sensor: If water level sensed low then,

the low water level information will be displayed

only one time per Ignition ON.

REMOVAL:

1. Remove the front bumper assembly.

(For

procedure refer body section)

2. Disconnect the electrical connections of float

sensor and pull out the float sensor from its

mounting hole on the washer bottle

(Rubber

grommet will be remained in the washer bottle).

INSPECTION:

(Without removing the float level sensor)



Connect the Multimeter at two pin connector.



Fill the water in the washer bottle.



There should be continuity between the two

pins when water level in the washer bottle is

more than 1.0 liter.



Drain the water and again check the continuity

between the two pins.

There is no continuity

between the pins when the washer bottle is

empty.



If there is continuity in the pins in washer bottle

empty condition then remove the float level

sensor and check the orientation of sensor on

the washer bottle.



If orientation is not ok then fit the float level

sensor in proper orientation and again do the

continuity checking.

REFITMENT:

1. Locate the float sensor in the grommet and

press fit the float sensor.

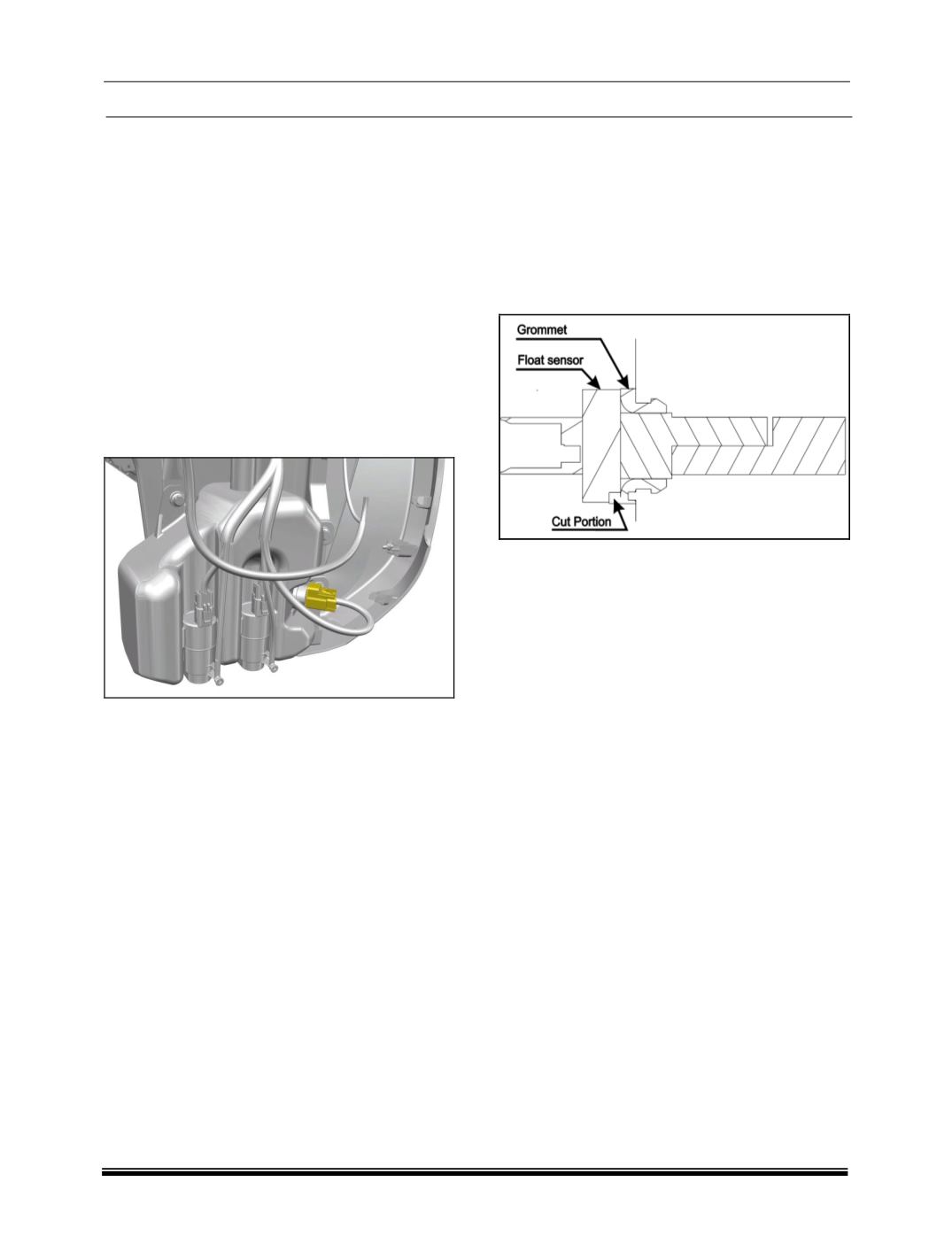

NOTE:

While fitting float level sensor make sure that the

cut portion on the float sensor should be at

downward position as shown in the below figure.

2. Connect the electrical connections to float level

sensor.

Fit the front bumper assembly.

(For procedure

refer body section)
