HEXA

ELECTRICAL

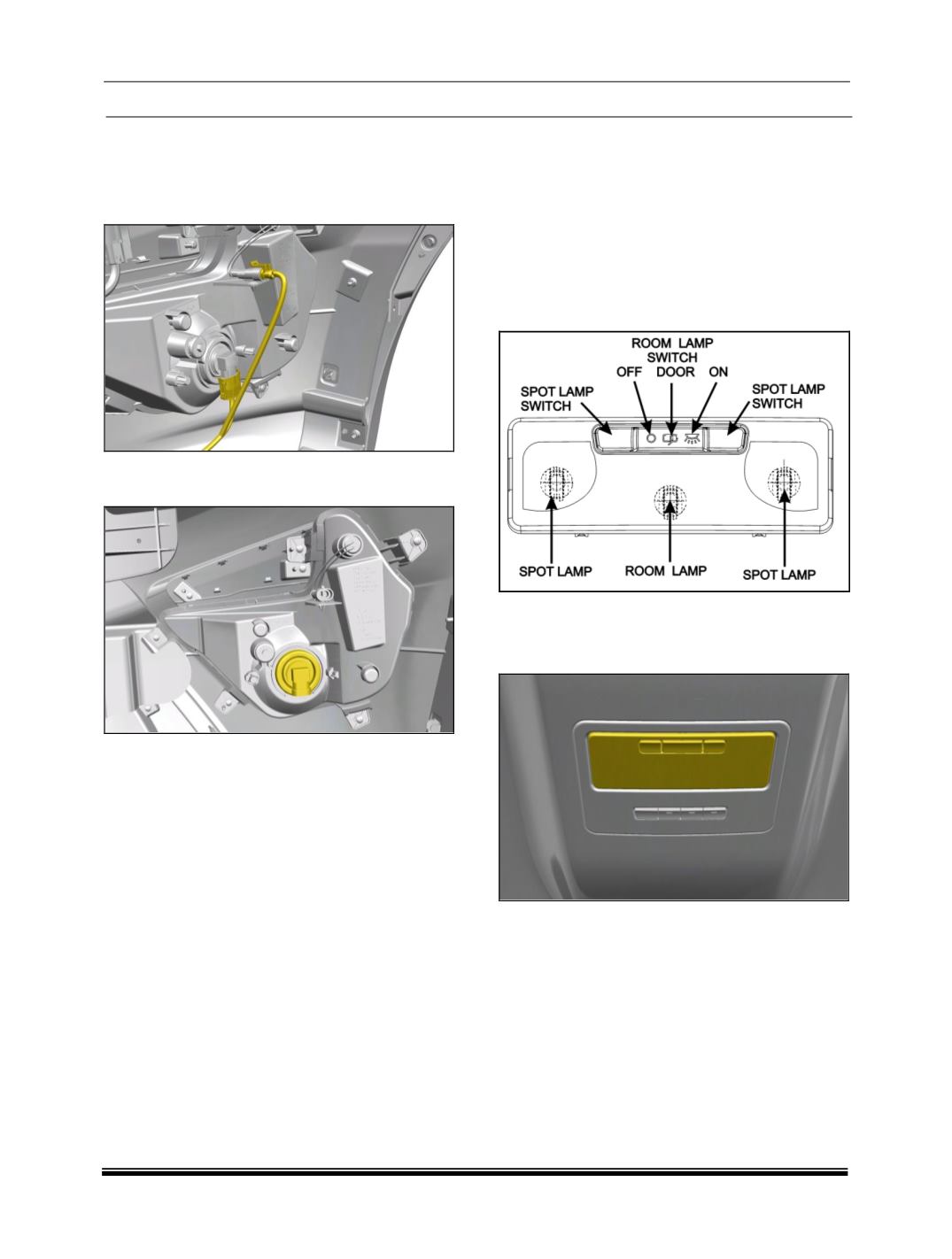

BULB REPLACEMENT PROCEDURE:

1. Remove the Wheel Liner to access the bulb.

2. Disconnect the Electrical connection of Fog

Lamp.

3. Remove the Bulb assembly by rotating in

anticlockwise direction.

4. Take out the bulb and replace with new one.

5. Fit the bulb assembly by rotating in clockwise

direction.

6. Connect the electrical connection.

8.4.6 FIRST and SECOND ROOF LAMP

First and second roof lamps are fitted with a three-

way switch. Switch has ON, OFF and DOOR

positions. In the ON or OFF position, the lamp is

directly controlled by the switch. In ON or OFF

position, no lamp dimming is used.

In the DOOR position, the lamp operation is

controlled directly by the BCM. It consists of LEDs.

These roof lamps also consist of two spot lamps

which are controlled by individual switch.

REMOVAL:

1. Pry out the roof lamp assembly from the roof

console.

2. Disconnect the electrical Connection.

3. Take out the lamp.
