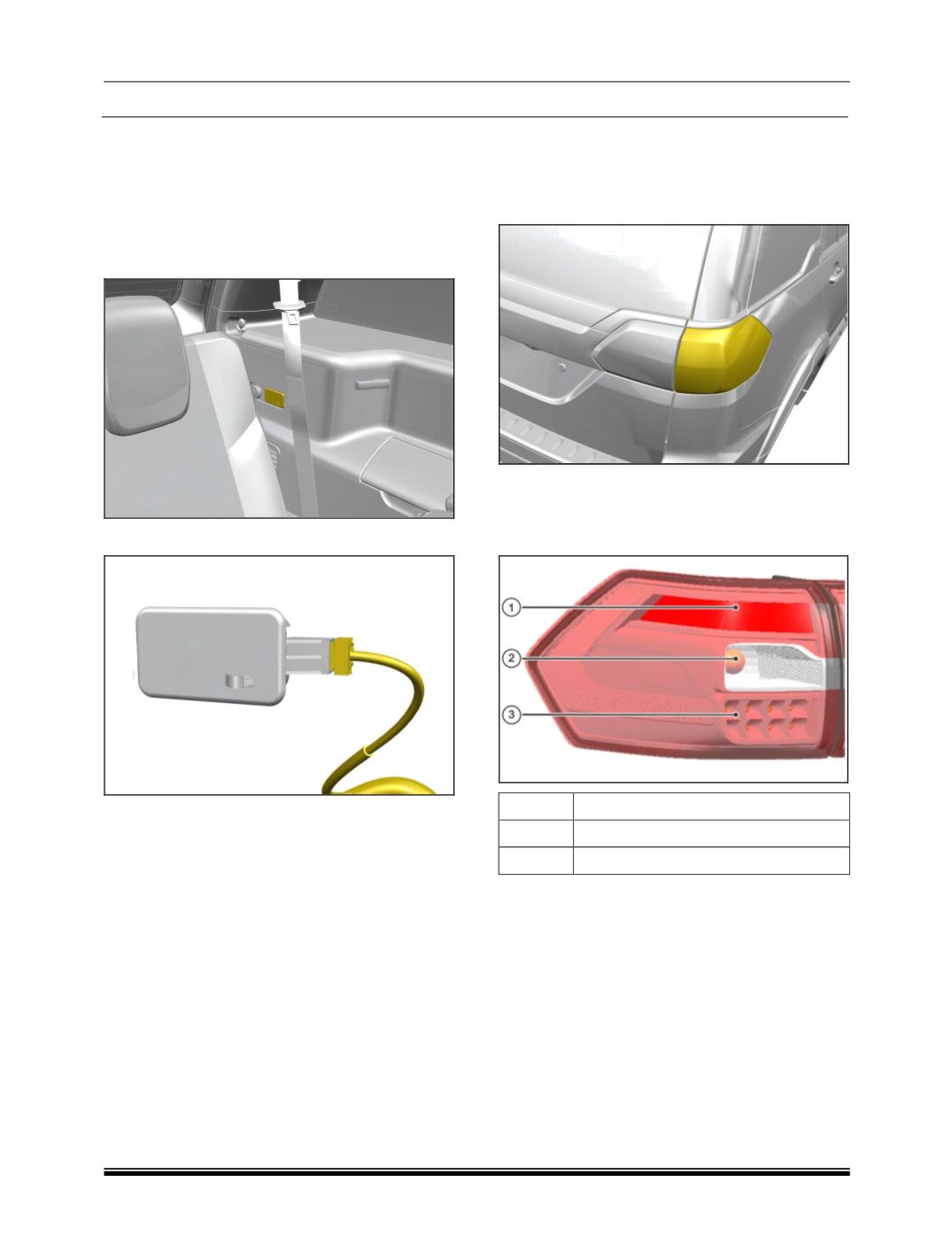

8.4.12 LOAD AREA LAMP
It consists of bulb of ratting 12V; is fitted on
the rear quarter trim LH.
REMOVAL:
1. Open the tailgate
2. Pry out the lamp assembly from the cutout.
3. Disconnect the electrical connection.
4. Take out the lamp.
REFITMENT:
1. Connect the electrical connection.
2. Fit the lamp assembly into the cutout provided
on the rear quarter trim. (Snap fitted)
BULB REPLACEMENT PROCEDURE:
1. Open the tailgate.
2. Pry out the lamp assembly from the cutout.
3. Remove the bulb and replace with new one.
4. Fit the lamp assembly.
8.4.13 TAIL LAMP
Tail lamp consists of following functions and type
of sources.
I. OUTBOARD TAIL LAMP
 Turn Indicator- 12V PY21W
 Stop Lamp- 12V, 0.5W Red LED (8 Nos.)
 Tail lamp- 12V, 0.2W Red LED (12 Nos.)
1 Parking Lamp
2 Turn Function
3 Stop Function
