ELECTRICAL

61

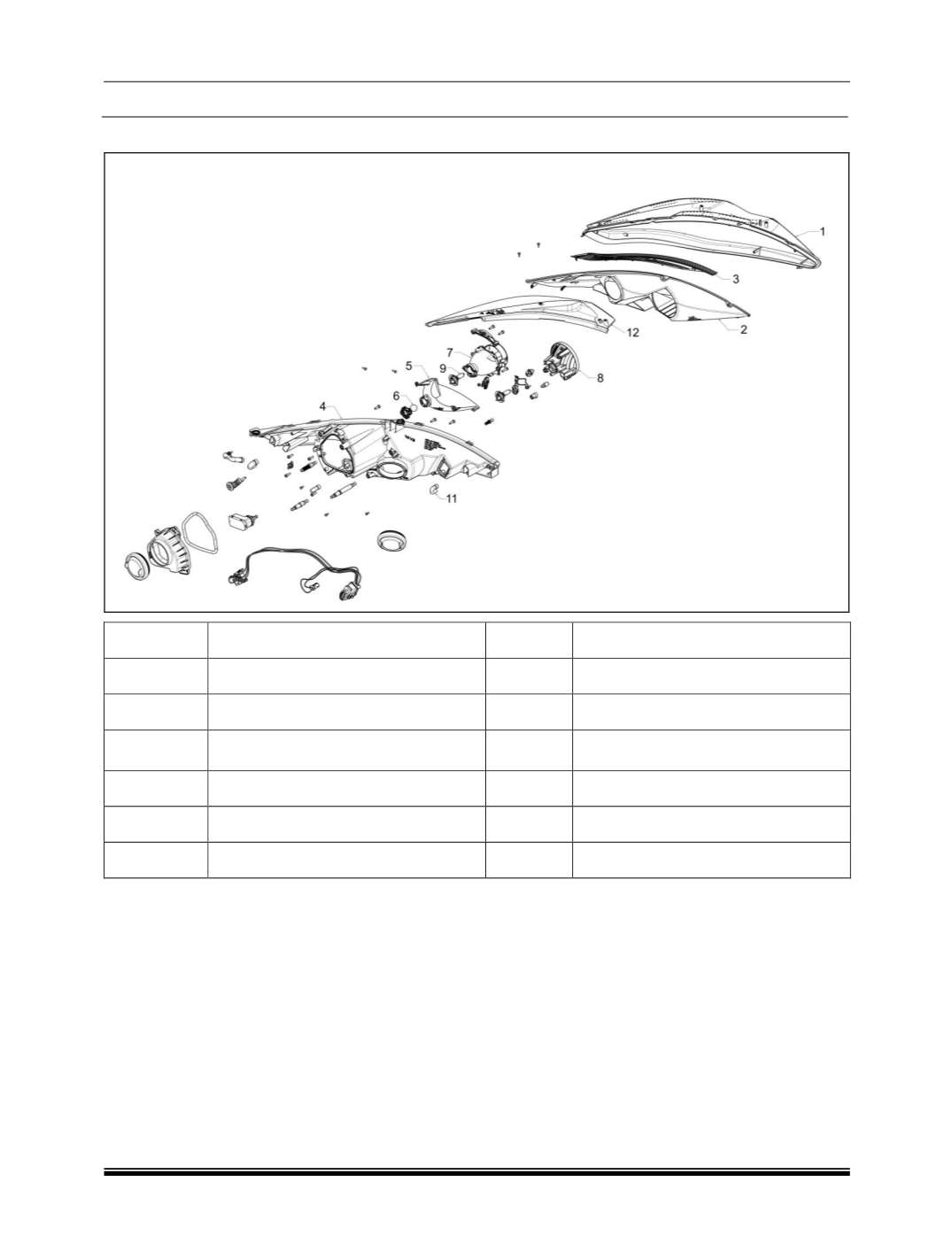

HEAD LAMP EXPLODED VIEW:

.

DESCRIPTION

.

DESCRIPTION

01

LENS

02

BEZEL

03

LENS – INNER FRONT SIGNAL

04

HOUSING

05

REFLECTOR

06

BULB – HIPER (SNAP BASE) – 24W

AMBER (P)

07

PROJECTOR UNIT – LOW BEAM

08

REFLECTOR – HB ASSY

09

BULB – H7

10

BULB – W5W (OSI)

11

VENT ASSEMBLY

12

TRIM – EXTERNAL - APPLIQUE
