ENGINE
.
53

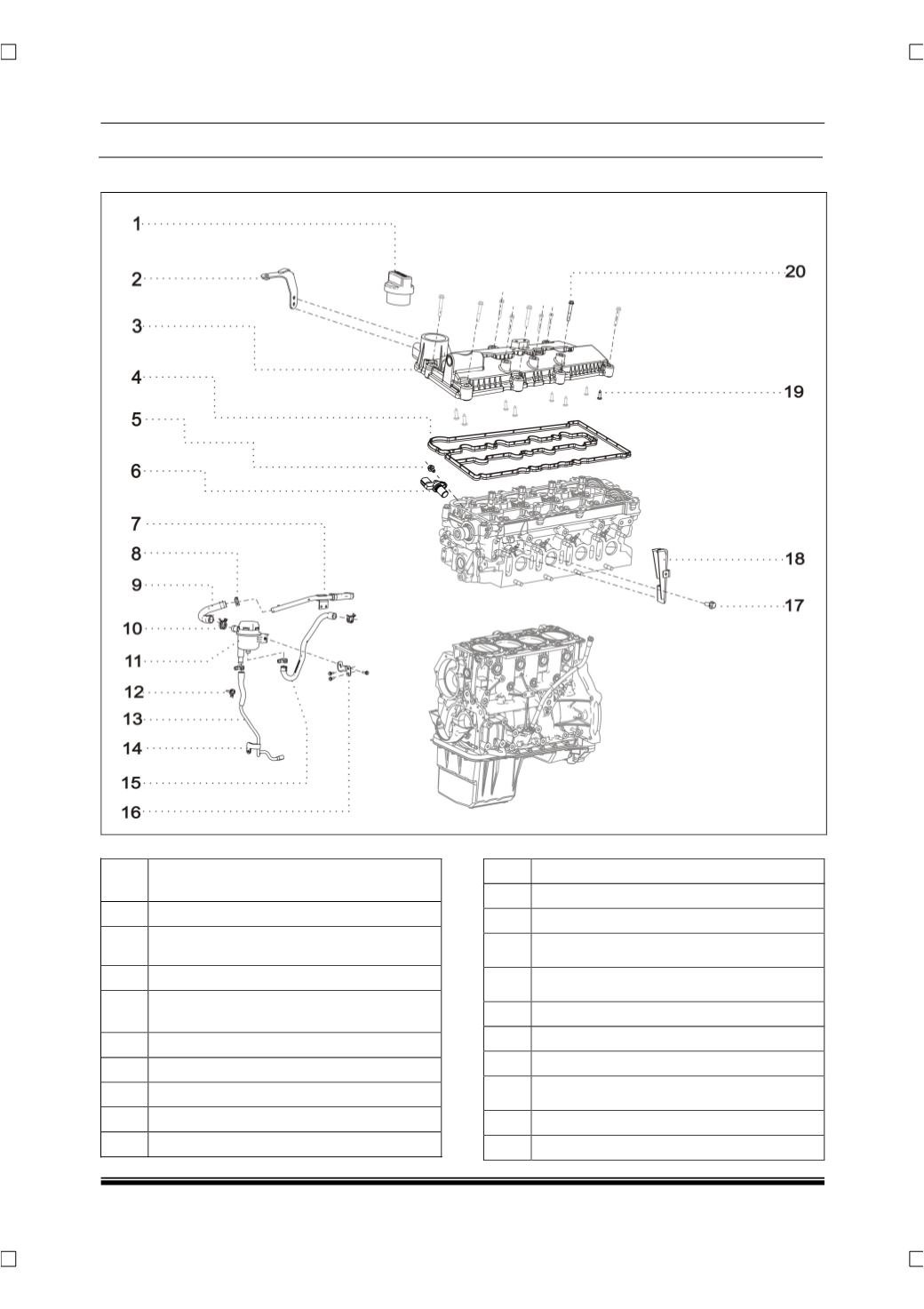

EXPLODED VIEW
SR.
NO.
DESCRIPTION
01 OIL FILLER CAP
02
BRACKET
ASSY;ENGINE
COV-
ER;FRONT - RH
03 ASSY. CYLINDER HEAD COVER
04
GASKET - CYLINDER HEAD
COVER
05 HEX FL SCR M6X16
06 CAM SENSOR
07 PIPE ASSY;OMS TO INTAKE PIPE
08 SPR. BD CLAMP 23DX12W
09 HOSE-OMS TO PIPE
10 SPRING BAND CLAMP
11 OIL SEPARATOR
12 SPR. BD CLAMP 17DX12W
13
ASSY. PIPE (OMS OIL RETURN) WITH
BRACKET.
14
SUPPORT BRACKET(OMS OIL RE-
TURN PIPE)
15 HOSE (CYL. HEAD COVER TO OMS)
16 BRACKET(OIL SEPERATOR MTG.)
17 HEX FL SCR M8X20
18
BRACKET ASSY;ENGINE COV-
ER;FRONT-LH
19 CR PAN HD TAPPING SCR
20 HEX FL BOLT M6X40
