ENGINE
48

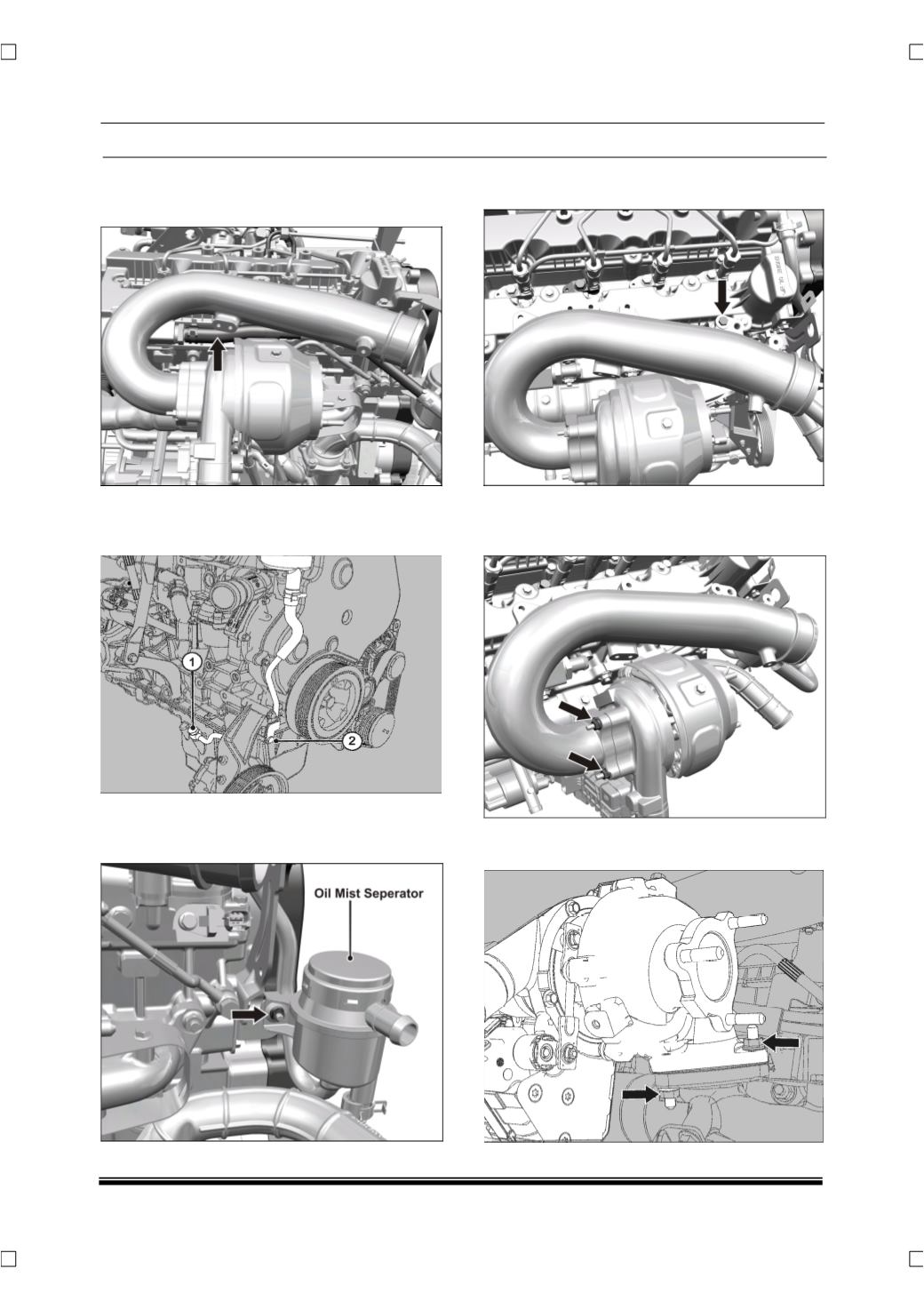

19.Loosen the oil mist separator hose clips from air
intake pipe and cylinder head cover and remove
the hose pipes.
20.Loosen the banjo bolt
(1),
hose bracket
(2) to
separate the pipe between oil mist separator and
oil sump.
21.Loosen and remove the both nut an bolt of oil
mist separator mounting bracket and take the oil
mist separator assembly along with hoses
22.Loosen and remove one mounting bolt of sup-
porting bracket for turbocharger intake pipe.
23.Loosen and remove three mounting nuts between
air intake pipe and turbocharger then take out the
intake pipe from engine.
24.Remove the turbocharger.
(For procedure refer
turbocharger removal in exhaust system section)
