ENGINE
56

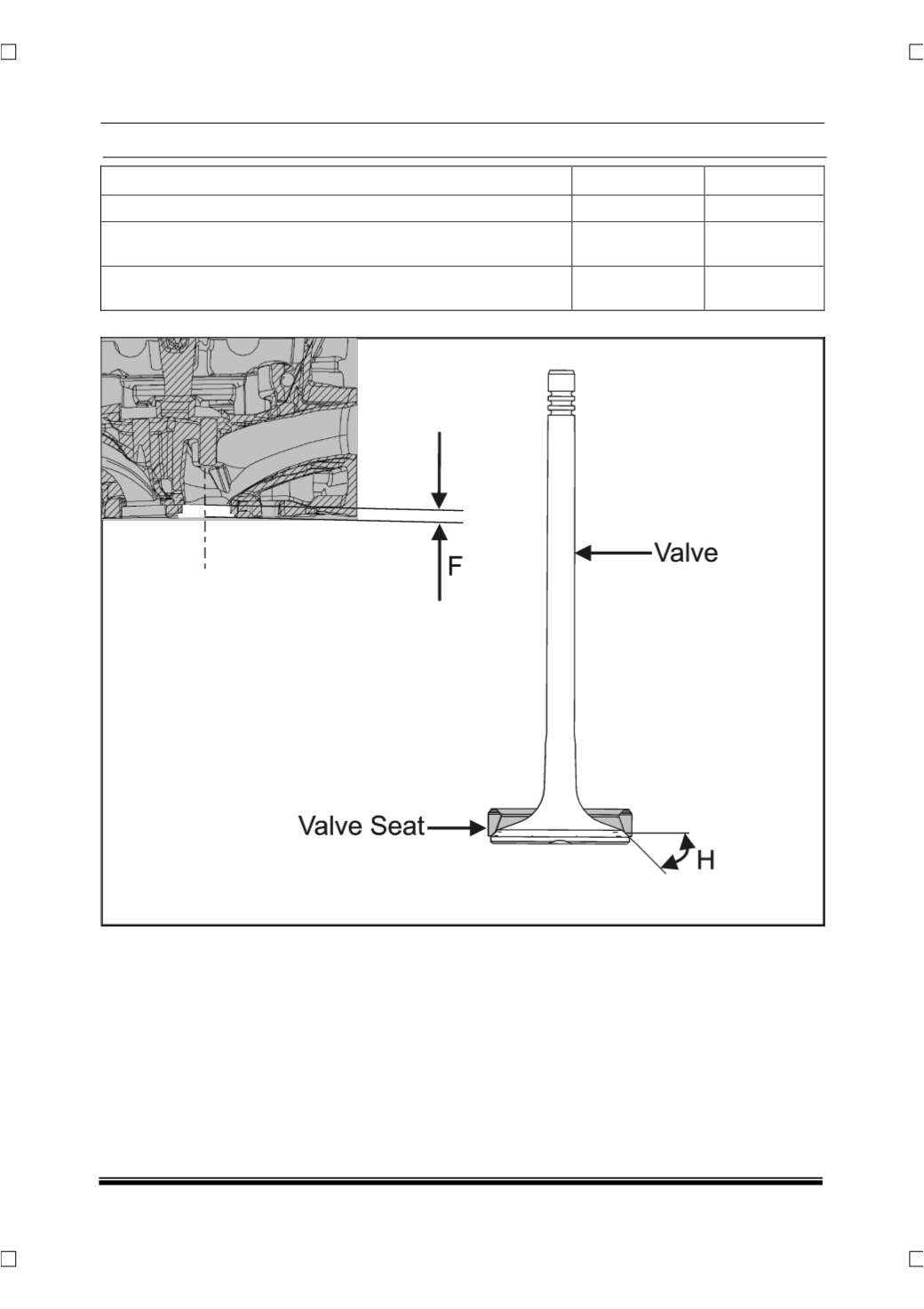

VALVE DIMENSIONS (mm) INLET EXHAUST
Valve seat angle 'H' 450 + 15’ 45 0 + 15’
Distance "F" between cylinder head mating surface with crank case
to valve seat in cylinder head
7.5 - 0.1 7.5 - 0.1
Maximum run out of valve seat in cylinder head with respect mm to
valve guide axis 0.1 0.1
