ENGINE
50

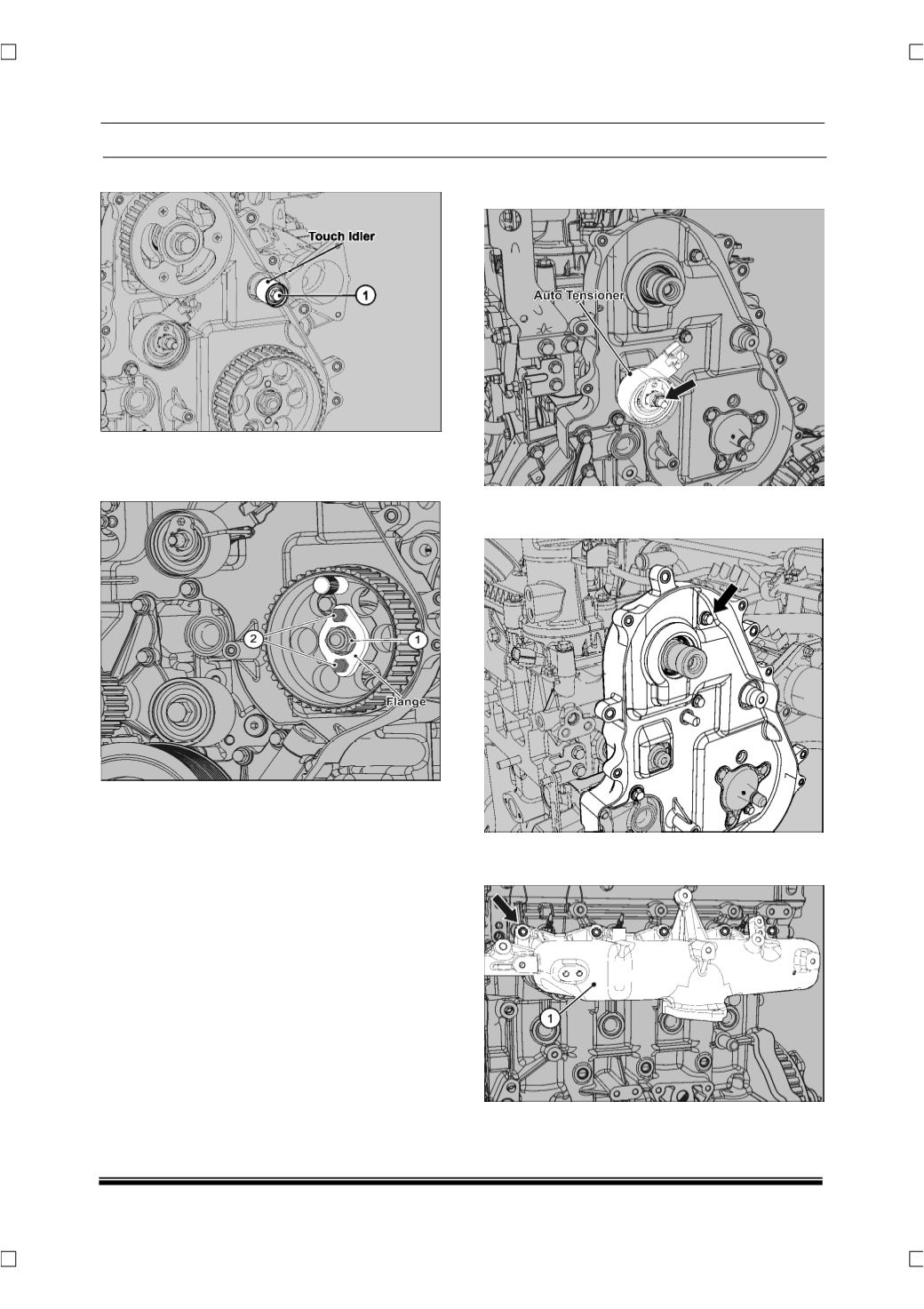

31.Remove the touch idler.
32.Place the flange (2)
(Part No 2547 0713 71 03)
on the HP Gear and tighten the bolts (1) to the
HP pump gear.
33.Now loosen the HP pump gear nut (2) to remove
the HP gear along with the flange and the Lock-
ing pin.
34.Remove auto tensioner bolt and take out the auto
tensioner
.
35.Loosen and remove the rear timing cover bolts
and takeout the rear timing cover.
36.Remove the intake manifold
(1)
along with its
gasket.
37.Remove all the injectors,
(For procedure refer On
vehicle repairs))
