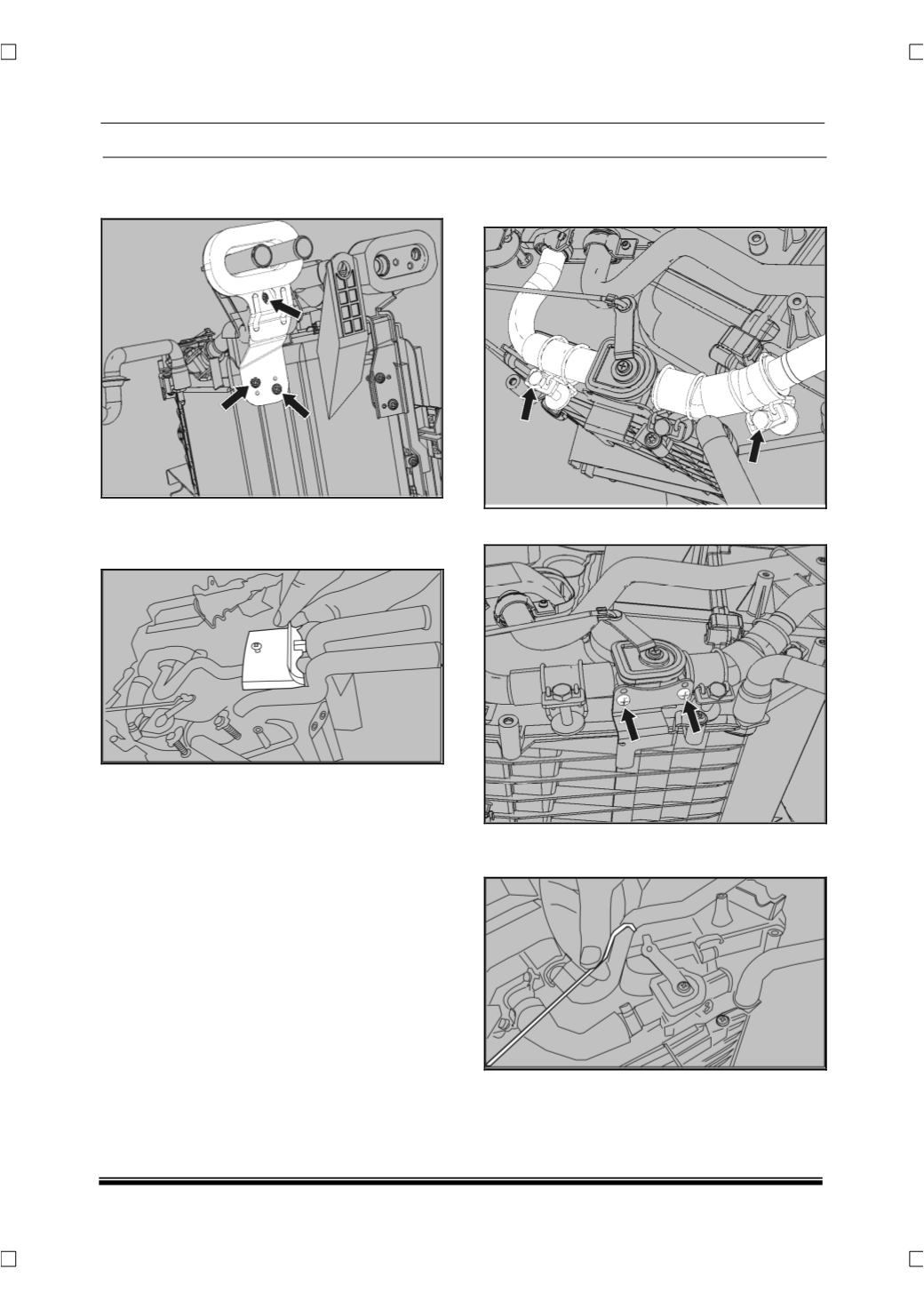

12. Loosen and remove 3 screws and take out the
heater tube mounting bracket assembly.
13. Loosen and remove screw and take out the plas-
tic bracket which holds the heater pipes on
HVAC housing.
14. Loosen and remove the spring clamps of heater
hoses from both the ends of water valve and pull
out the pipe from the valve.
15. Loose and remove 2 screws of water valve.
16. Disconnect the link from water valve end and
take out the water valve assembly.
