HVAC

63

10.4 OVERHAULING

10.4.1 BLOWER

DESCRIPTION

01

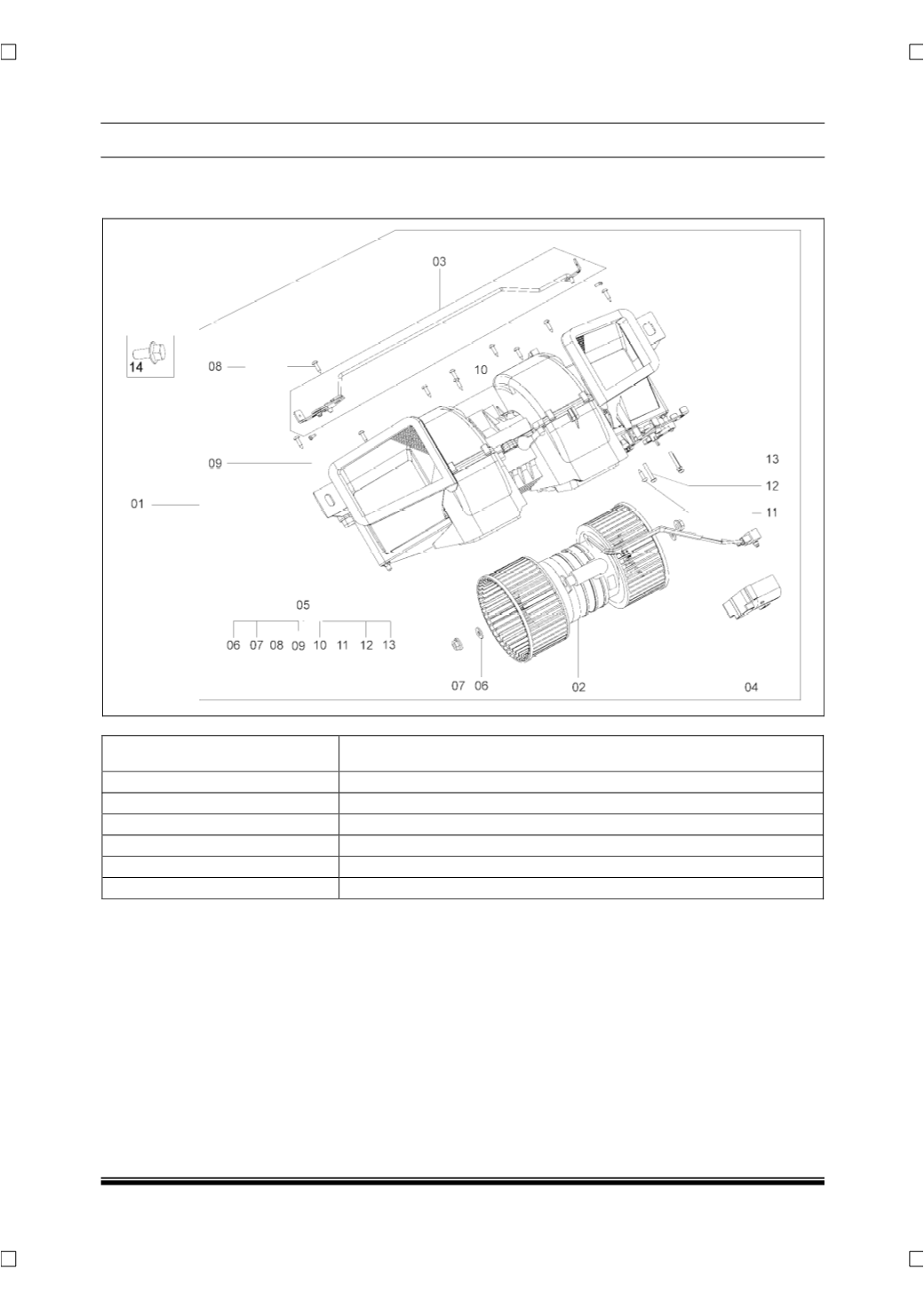

Assembly blower complete HVAC

02

Blower Motor Impeller assembly

03

Linkage set for Fresh/Recirculation

04

Actuator Motor Fresh/recirculation

05

Kit fasteners blower assembly

14

H/fl screw M8x18
