HVAC
66

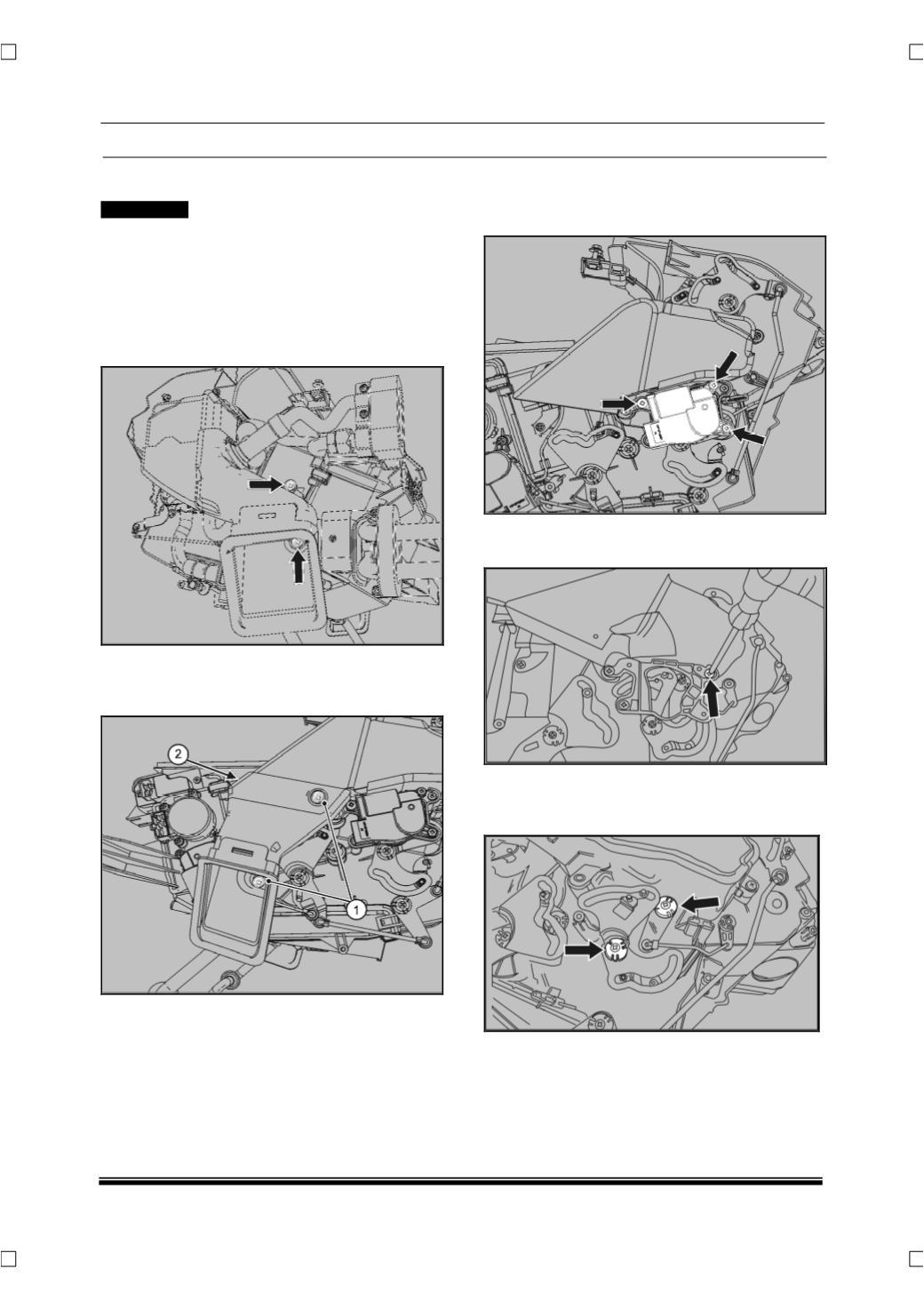

DISMANTLING
!! WARNING
Coolant will be present in the heater coil, so carefully
tilt the HVAC unit and collect the coolant in an ap-
propriate container to avoid it spilling onto the
technician.
1. Loosen and remove 2 mounting screws of right
hand side leg duct and separate it from HVAC
unit.
2. Loosen and remove 2 mounting screws (1) and
remove one tree clip (2) and separate the left
hand side leg duct from HVAC unit
3. Tilt the assembly to its right side and loosen and
remove 3 mounting screws and take out the
temperature operation actuator.
4. Loosen and remove 3 mounting screws and take
out the temperature actuator mounting bracket.
5. Loosen and remove 2 screws along with plastic
washer and take out the linkage assembly (tem-
perature) from HAVC unit.
