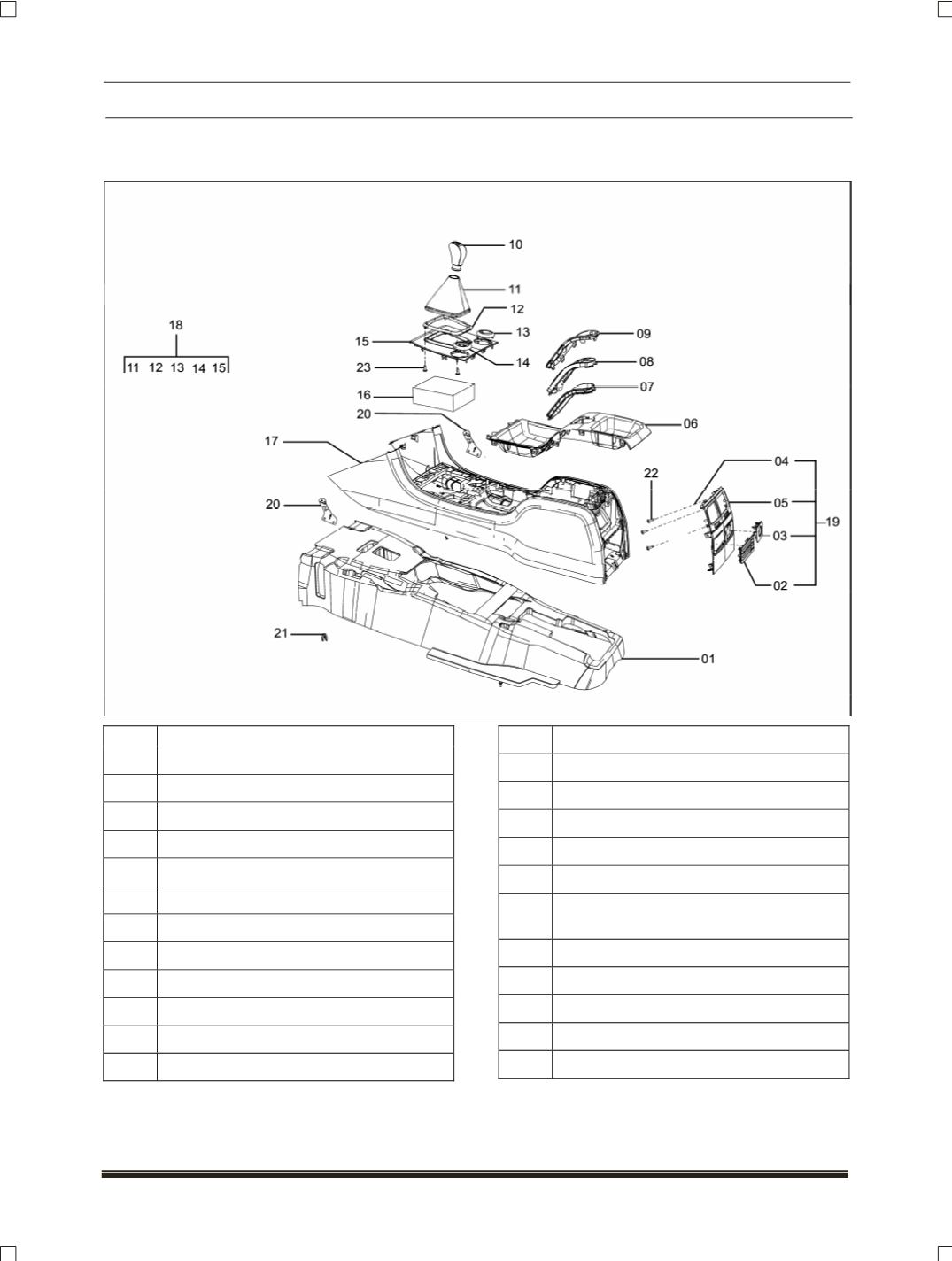

9.2.2 FLOOR CONSOLE
CONSTRUCTIONAL DETAILS
SR.
NO DESCRIPTION
01
Insulation tunnel
02
Floor console ash tray bezel
03
Floor console lighter bezel
04
Floor console air vent assembly
05
Floor console rear
06
Floor console upper
07
Parking brake gap hider ring
08
Parking brake bezel
09
Parking brake gap hider bellow
10
Assembly gear knob-high grade
11
Floor console gear shifter bellow
12
Floor console gear shifter boot ring
13
Floor console 4x4 switch plug.
14
Floor console cigarette lighter bezel
15
Floor console gear shifter bezel
16
Insulation block gear lever foam
17
Floor console structure assembly
18
Floor console gear shifter bezel
assembly
19
Floor console rear assembly
20
Assembly IP mounting side
21
Plastic clip
22
PT 3.5 x 13 screw
23
PT 3.5 x 13 screw
