BODY

11

BODY

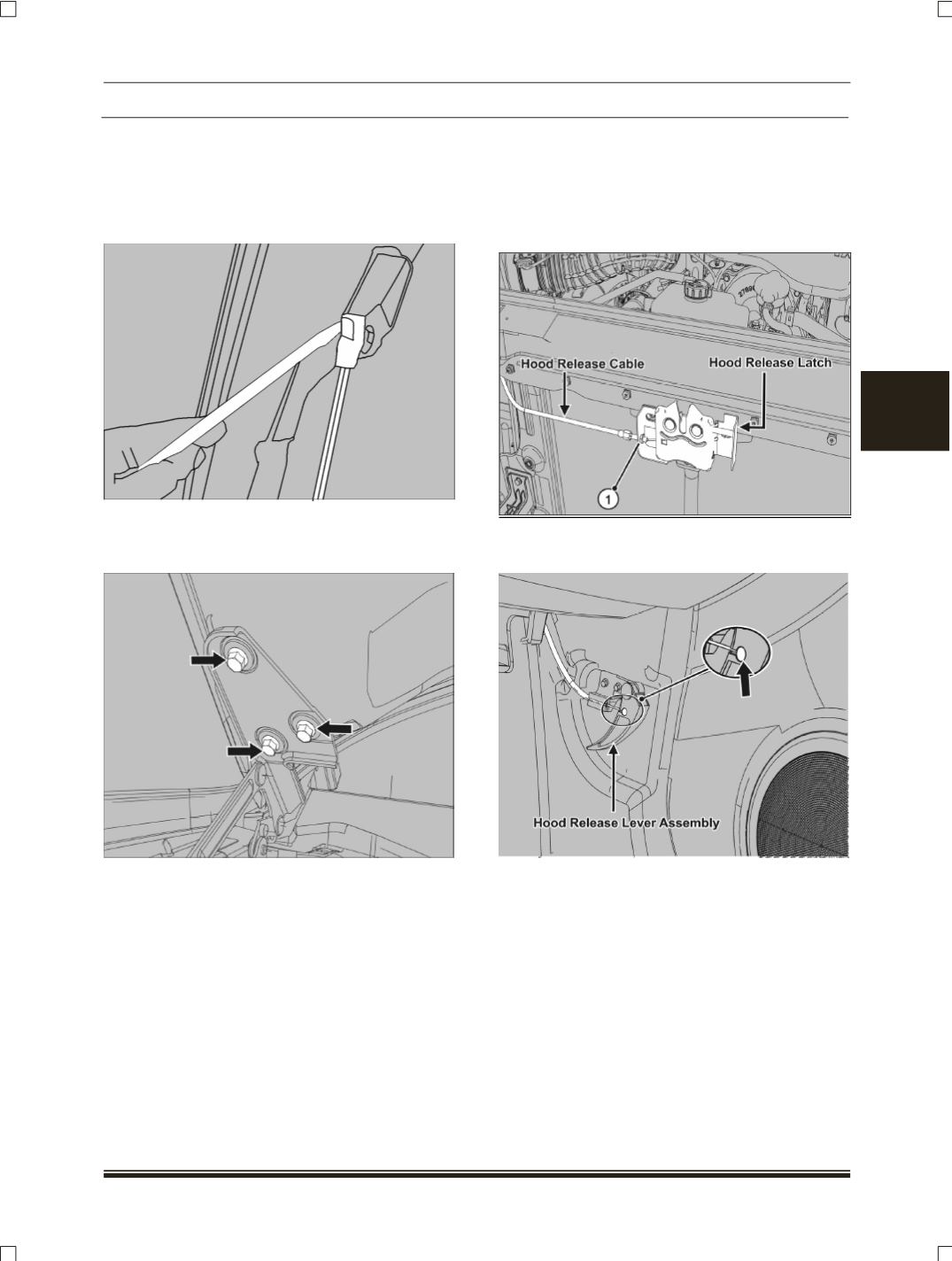

REMOVAL

1. Open the bonnet.

2. Support the bonnet and pull out the balancer

from upper side

(unlock the balancer upper end

before pulling out )

3. Loosen and remove mounting bolts

(1)(3 Nos.)

,

follow the same procedure at the other end and

take out the bonnet assembly.

FITMENT

For fitment follow the reverse procedure of the

removal.

BONNET LATCH RELEASE CABLE

REMOVAL

1. Open the bonnet.

2. Loosen the hex. Thin nut

(1)

and then

disconnect the cable from hood latch assembly.

3. Disconnect the cable from hood release lever

assembly.
