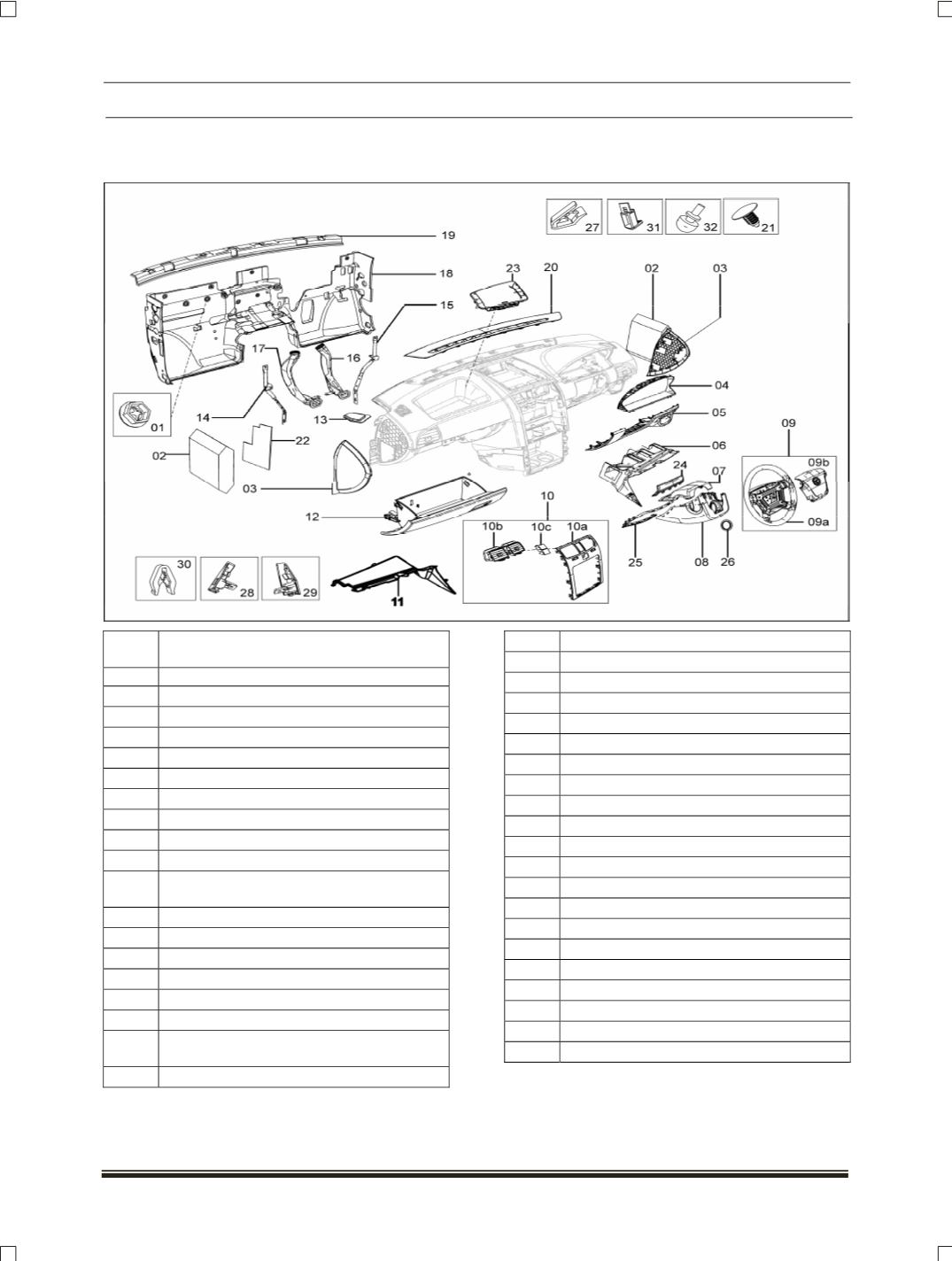

9.2.3 DASHBOARD
A-CONSTRUCTIONAL DETAILS
SR.
NO.
DESCRIPTION
01
Push on clip for M6 stud
02
Insulation block a post assembly
03
End cover assembly RH
03
End cover assembly LH
04
Cluster finisher assembly RHD
05
Cover steering column assembly RHD
06
Assembly hush panel RHD driver side
07
Nacelle upper
08
Nacelle Lower
09
Assembly steering wheel complete
09a Assembly steering wheel with back
Cover and spokes
09b Steering wheel dab cover
10
Centre finisher assembly
10a Center finisher
10b Center air vent assembly
10c 1 Din stowage bin
10d IP logo
11
Assembly bush panel RHD passenger
side
12
Glove box assembly RHD
13
Foam pad for NVH LH
14
IP support tube LH
15
IP support tube RH
16
Console duct rear RH assembly
17
Console duct rear LH assembly
18
Insulation dash panel cabin side-RHD
19
Insulation windshield support
20
Windshield defrost grille assembly
21
Button clip
(Hood insulation)
22
NVH pad a pillar LH
22
NVH pad a pillar RH
23
PAB module
24
Nacelle gap hider upper
25
Nacelle gap hider lower
26
Nacelle ignition switch rubber bush
27
Rib lock
(One side snap)
28
Latch locking bezel LH RHD
29
Latch locking bezel RH RHD
30
Plastic clip
31
Dashboard upper plug LH
Glove box rubber bump
