BODY

9

BODY

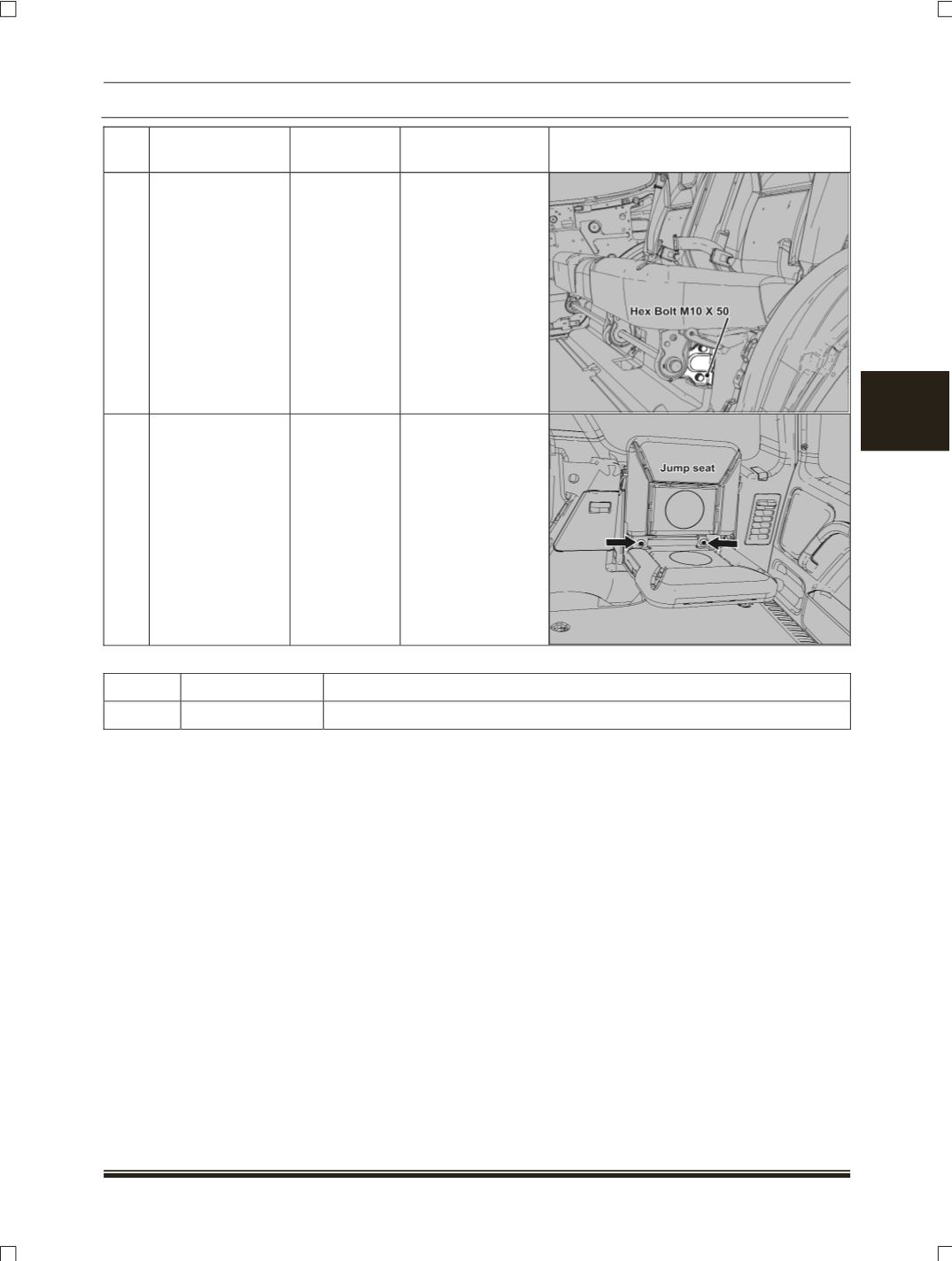

SR.

NO

DESCRIPTION

FASTENER

TIGHTENING

TORQUE(Kg-m)

LOCATION

13

Second row seat

mounting hex flange

bolt

M10 X 50

4.9

14

Third row seat

mounting hex flange

screw

M8 X 25

2.3

9.1.4 SPECIAL TOOL

SR. NO. PART NUMBER

DESCRIPTION

1

2871 5890 40 02

Plastic Wedge
