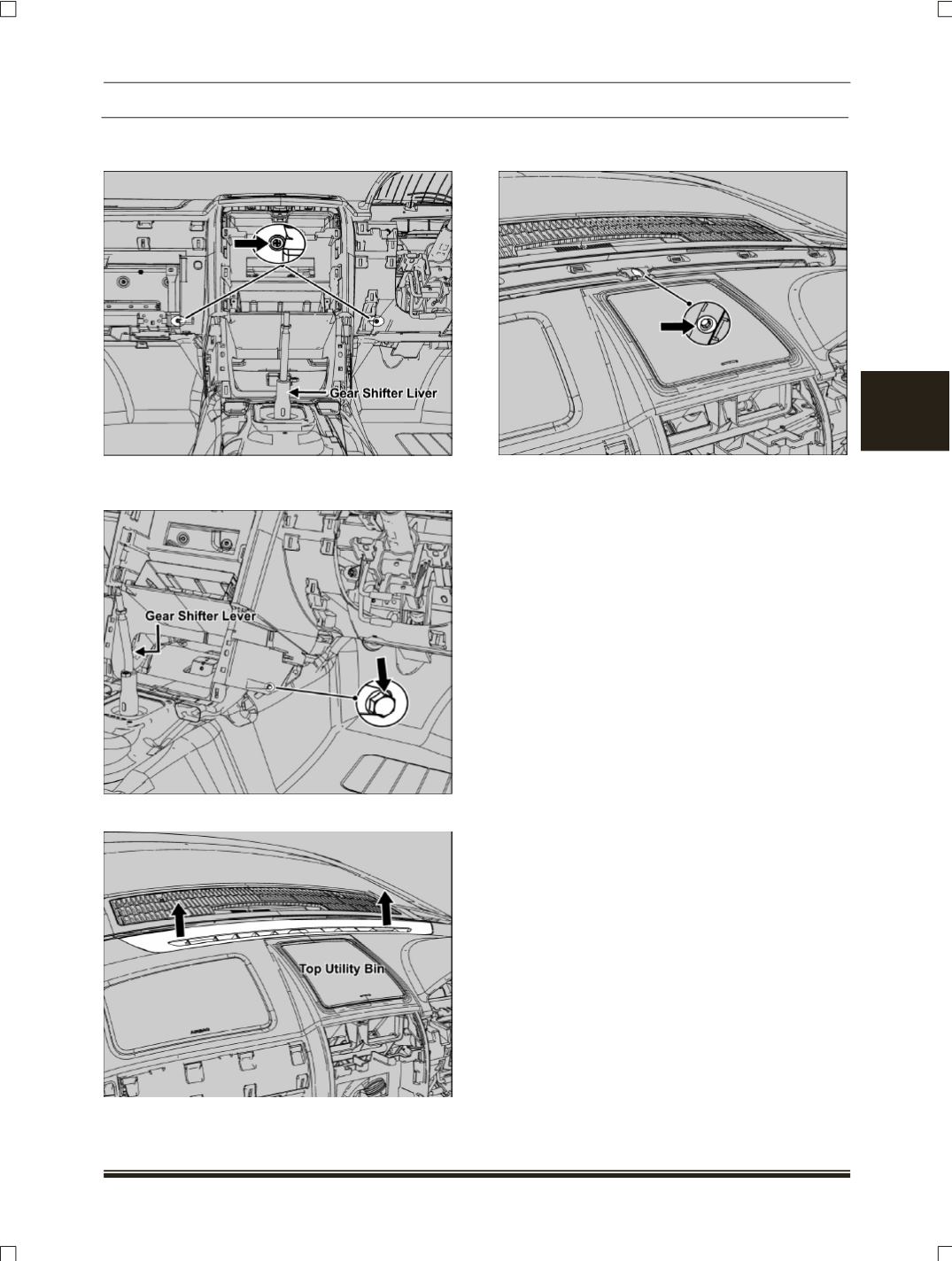

12.Loosen and remove two mounting screws
which is mounted on CCB from both side.
13.Loosen and remove two mounting bolt from
both sides of tunnel.
14.Pry out the windshield defrost grill.
15.Loosen and remove one mounting bolt which is
located at the center of dashboard assembly.
16.Remove the dash board assembly from vehicle.
FITMENT
For fitment follow reverse procedure of the
removal.
