ELECTRICALS

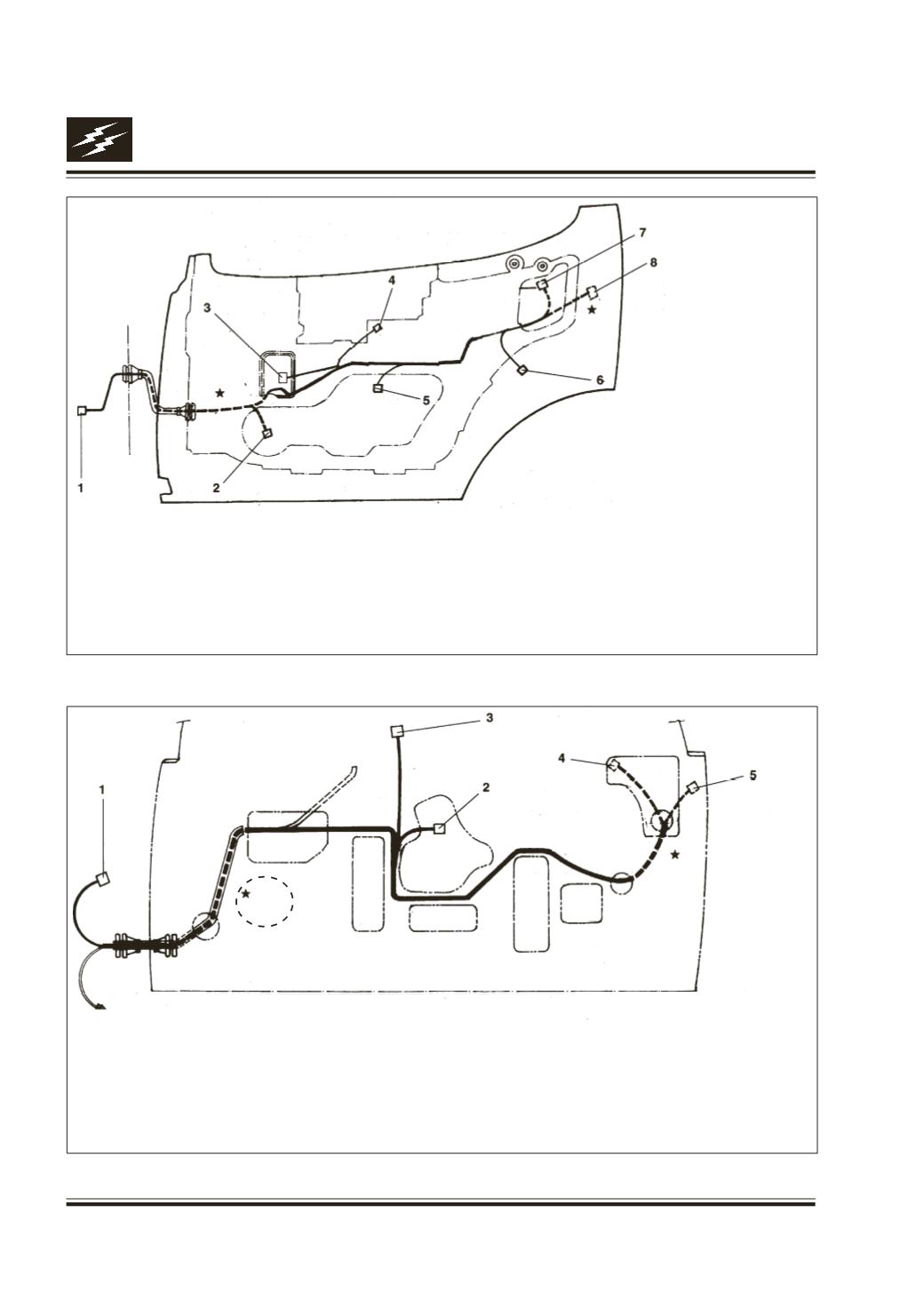

Fig. 3 - Wiring harness rear door RH/LH
Fig. 4 - Wiring harness tail gate
RH SIDE - AS SHOWN
LH SIDE - MIRROR
* DOTTED PORTION
INDICATES WIRING
HARNESS BEHIND
PLASTIC MEMBRANE AND
DOOR INNER PANEL.
1. TO WIRING HARNESS
TAIL RH/LH
2. TO SPEAKER
3. TO DIODE MODULE
4. TOWINDOW WINDING
SWITCHES
5. TOWINDOW WINDING MOTOR
6. TO DOOR LAMP
7. TO POWER LOCK
8. TO DOOR SWITCH
1. TO WIRING HARNESS TAIL - RH
2. TO REAR WIPER MOTOR
3. TO REAR GLASS DEMISTING
4. TO POWER LOCK
5. TO DOOR SWITCH
* DOTTED PORTION
INDICATES WIRING
HARNESS BEHIND
PLASTIC MEMBRANE AND
DOOR INNER PANEL.
SUB WOOFER
