ELECTRICALS

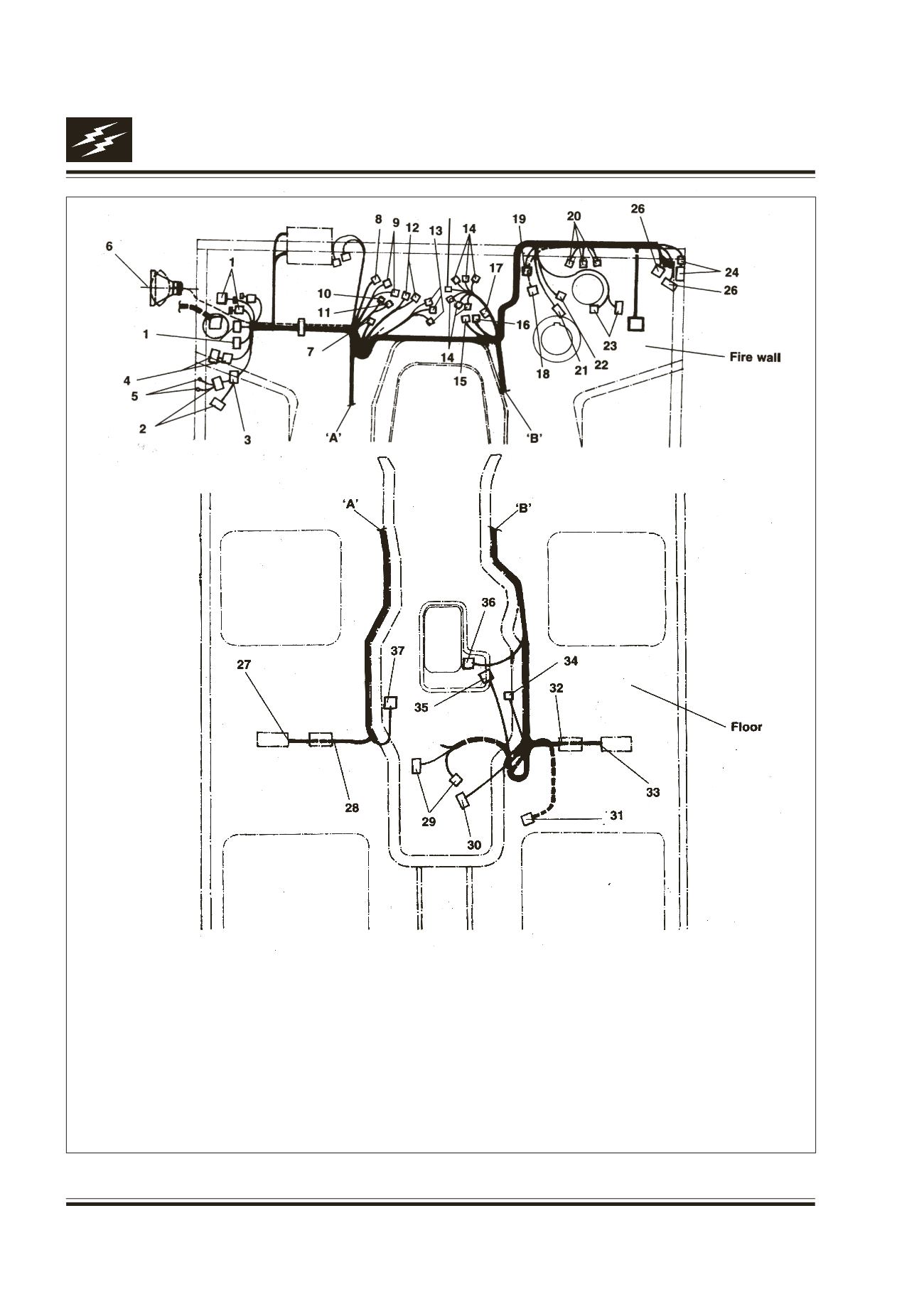

Fig. 7 - Wiring harness cabin (RHD)
1.
TO WIRING HARNESS FRONT
2.
TO WIRING HARHESS TAIL-LH
3.
TO WIRING HARNESS ROOF
4.
TO WIRING HARNESS FRONT DOOR
5.
EARTH
6.
ANTENNA CABLE
7.
TO DIGITAL CLOCN
8.
TO FRONT BLOWER RESISTOR
9.
TO FRONT A/C THERMOSTAT
10. TO SERVO MOTOR
11. TO FRONT BLOWER MOTOR
12. TO RADIO
13. TO CIGAR LIGHTER
14. TO FACIA SWITCHES
14A. HAZARD WARNING
15. TOFRONTA/C
16. TO FRONT BLOWER SWITCH
17. DIODE MODULE
18. TO CLUTCH SWITCH
19. TO RHEOSTAT
20. TO INSTRUMENT CLUSTER
21. TO STEERING LOCK CUM IGNITION
SWITCH
22. TO COMBI SWITCH WIPER
23. TO COMBI SWITCH LIGHTNING
24. TO WIRING HARHESS TAIL - RH
25. EARTH
26. TO WIRING HARNESS FRONT DOOR
- RH
27. TO RELAY BANK - LH
(UNDER FRONT SEAT - LH)
28. TO CENTRAL LOCKING CONTROLLER
29. TO TRANSFER CASE
30. TO PARKING BRAKE SWITCH
31. TO REAR SOLENOID VALVE
32. TO TRANSFER CASE CONTROLLER
33. TO RELAY TANK - UNDER FRONT SEAT -
RH)
34. TO SEAT BELT LOCK SWITCH FRONT - RH
35. TO REVERSE LIGHT SWITCH
36. TO TRANSFER CASE SELECTION SWITCH
(4X4)
37. TO SEAT BELT LOCK SWITCH FRONT - LH
14A
