ELECTRICALS
1. TO WIRING HARNESS CABIN
2. TO SPEAKER / TWEETER
3. TO MIRROR SWITCH (FOR FRONT
DOOR - RH ONLY)
4. TO MIRROR MOTOR
1. WIRING HARNESS FRONT DOOR
2. WIRING HARNESS REAR DOOR
3. WIRING HARNESS TAIL GATE
4. WIRING HARNESSTAIL (FRONT TO TAIL)
22. WIRING HARNESSES

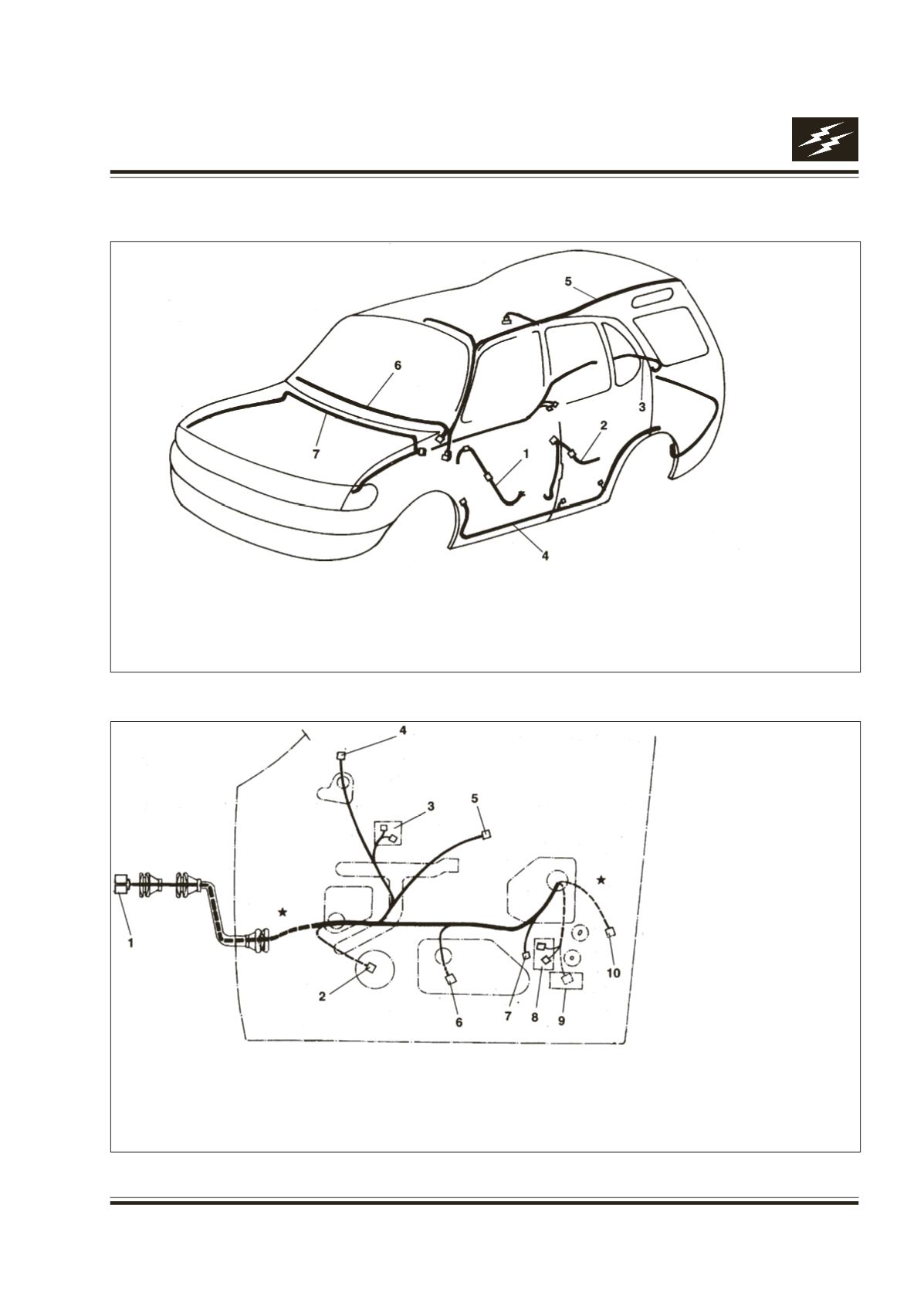

Fig. 1 - Wiring harnesses
5. WIRING HARNESS ROOF
6. WIRING HARNESS CABIN
7. WIRING HARNESS FRONT
5. TO WINDOW WINDING
SWITCHES
6. TO WINDOW WINDING MOTOR
7. TO DOOR AJAR lAMP
8. TO POWER LOCK (FOR FRONT
DOOR - RH ONLY)
9. TO POWER LOCK (FOR FRONT
DOOR - LH ONLY)
10. TO DOOR SWITCH
Fig. 2- Wiring harness front
door RH/LH
RH SIDE - AS SHOWN
LH SIDE - MIRROR IMAGE
* DOTTED PORTION
INDICATES WIRING
HARNESS BEHIND
PLASTIC MEMBRANE AND
DOOR INNER PANEL.
