ELECTRICALS
1. TO CONDENSER FAN
2. TO ENGINE COOLING FAN
3. TO HORNS (LOW TONE & HIGH
TONE)
4. TO FRONT FOG LAMP - LH
5. TO HEAD LAMP - LH
6. TO FRONT BLINKER - LH
7. TO EARTHING LUGS
8. TO FUSE BOX AND RELAYS
9. TO SIDE REPEATER - LH
10. TO WIRING HARNESS ENGINE
LAMP
11. TO WIRING HARNESS CABIN ON
LH SIDE
12. TO GLOW PLUG TIMER
13. TO SIDE REPEATER - RH
14. EARTHING LUGS
15. TO FRONT BLINKER LAMP - RH
16. DIODE MODULE - I
17. TO HEAD LAMP RH
18. TO FRONT FOG LAMP - RH
19. TO A/C CLUTCH
20. DIODE MODULE - II
21. TO DUAL PRESSURE SWITCH
22. TO BRAKE FLUID BOTTLE SWITCH
23. TO STOP LIGHT SWITCH
24. TO GLOW PLUG
25. TO TEMPERATURE SWITCH
26. TO FRONT WIPER MOTOR
27. TO WATER LEVEL SENSOR
28. TO REAR W/S WASHER
29. TO FRONT W/S WASHER
30. TO STARTER SOLENOID
31. TO STARTER MOTOR
32. TO ALTERNATOR
33. TO WIRING HARNESS ENGINE

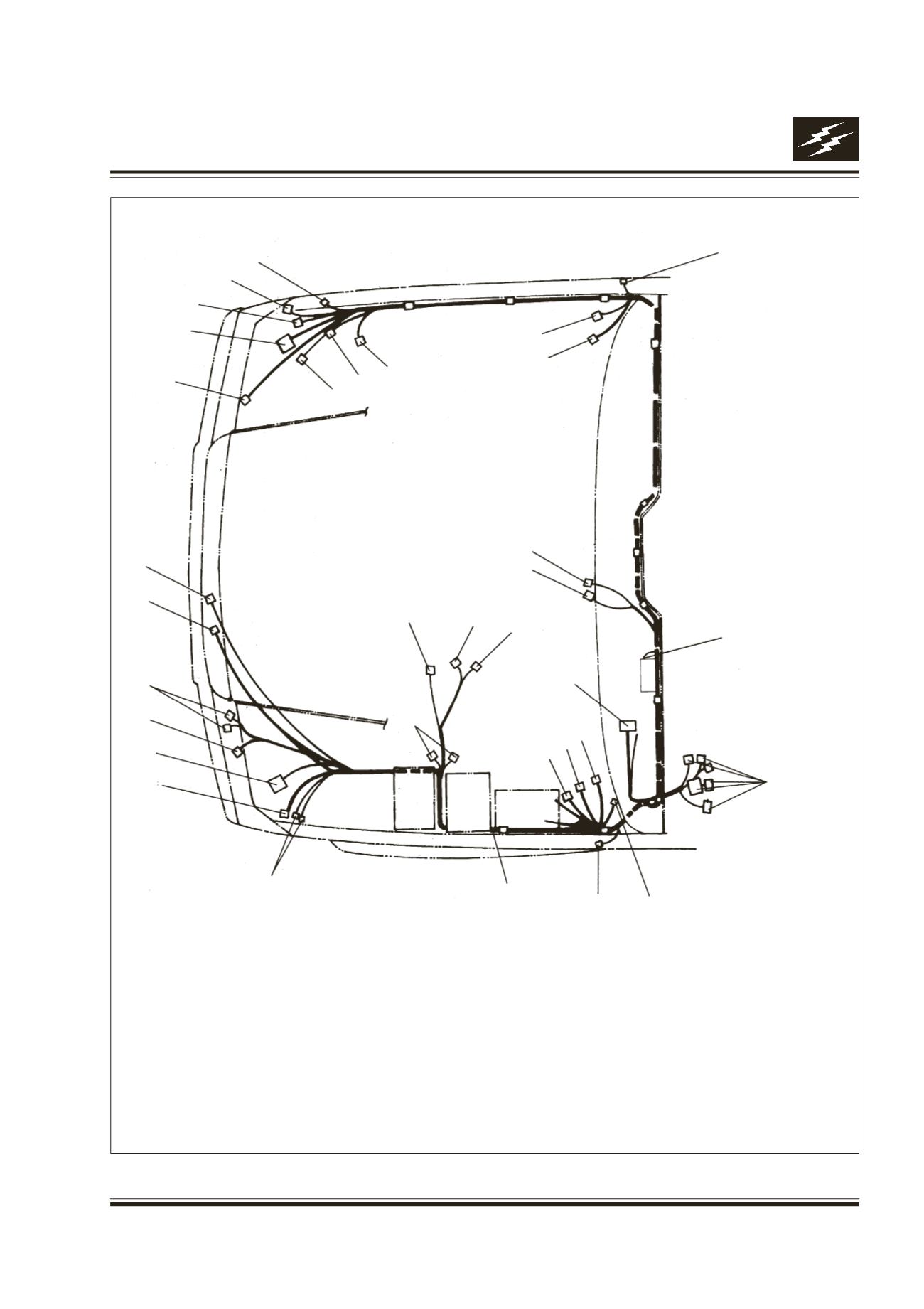

Fig. 8 - Wiring harness front
