SAFARI

4 DLT ENGINE

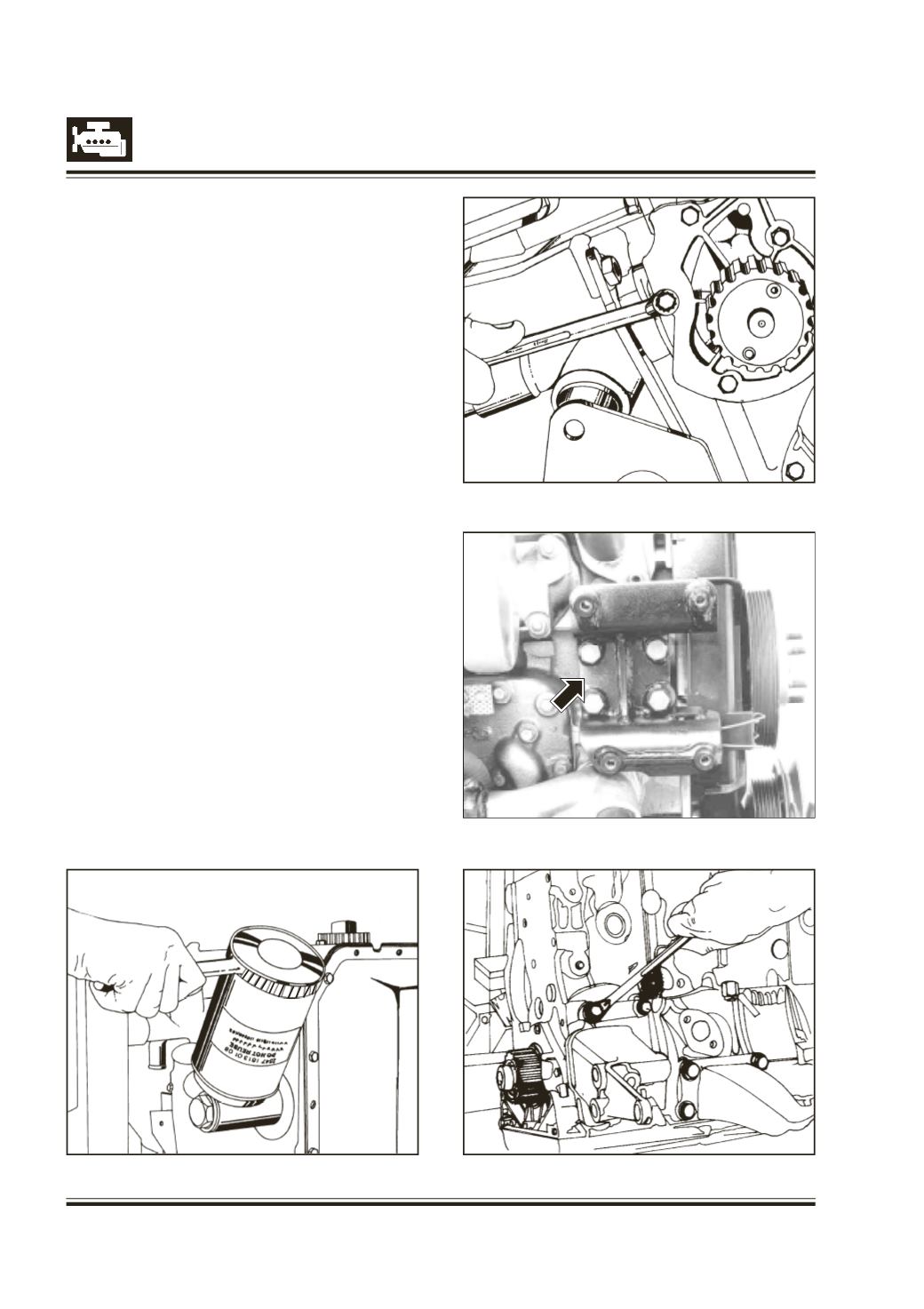

emove

- Oil filter and filter mounting adaptor. Refer figure

39. (Adaptor is fitted on engines for 4x4 version)

- Oil cooler heat shield.

- Oil cooler. Do not loosen 4 screws in the centre.

- Water pump. Refer figure 40.

- A/C compressor mounting bracket. Refer figure 41.

- Water elbow.

- Power steering pump mounting bracket.

Refer figure 42.

Fig. 40

Fig. 41

Fig. 42

Fig. 39
