14

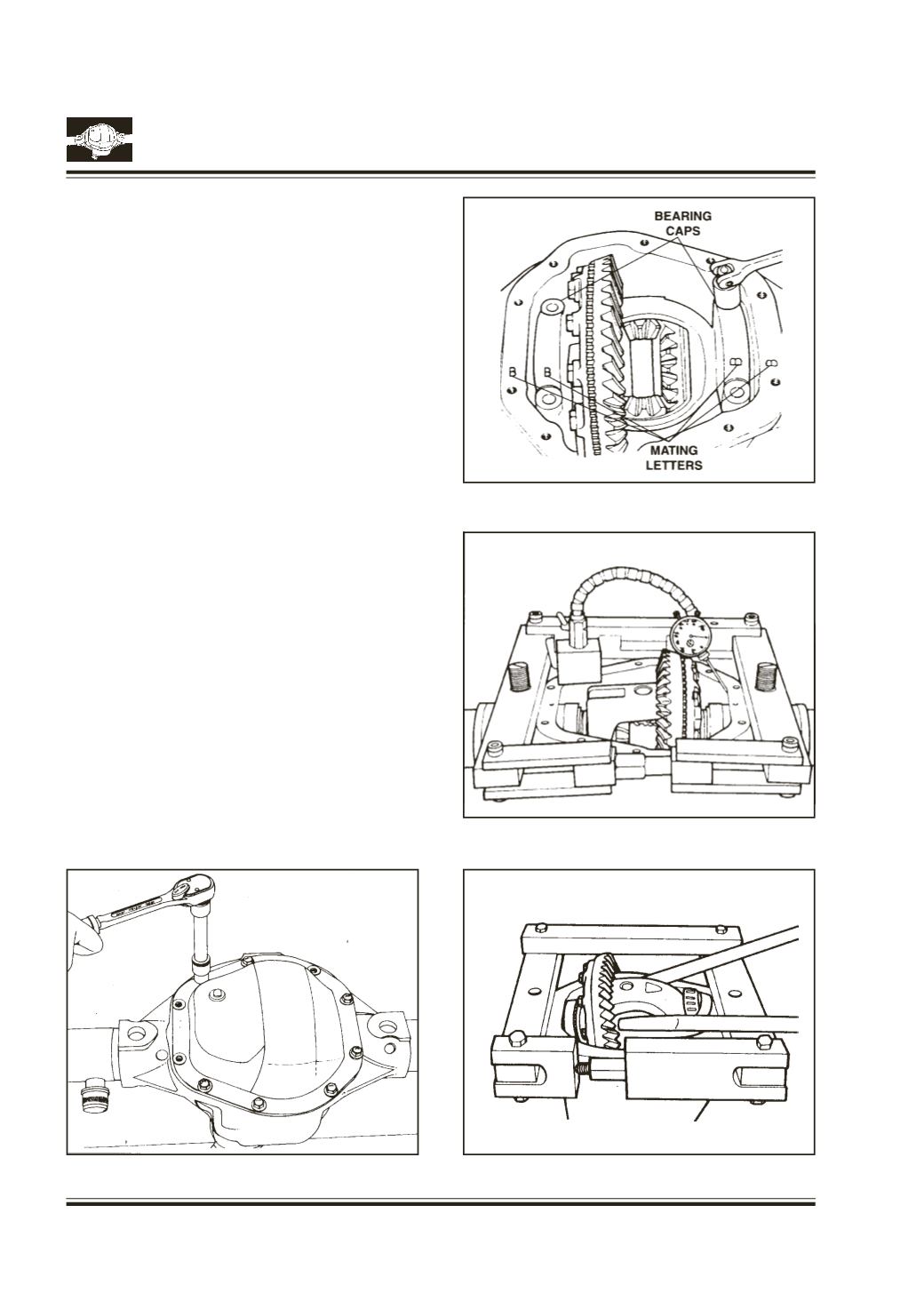

REAR AXLE

Remove cover plate screws, cover plate.

Fig 10

Disassembly of Carrier Center Section.

Note:

Liquid gasket is used to seal the cover plate,

scrape and clear it.

Remove bearing caps.

Fig 11

Note:

Mating letters stamped on caps and carrier. It

is essential to match the letters.

Mount spreader Pt. No. 2698 5890 3517 to housing.

Do not spread carrier more than 0.58 mm. Use dial

gauge.

Fig 12

Pry out differential case from carrier.

Fig 13

Remove spreader.

Fig. 11

Fig. 12

Fig. 10

Fig. 13
