SAFARI

REAR AXLE

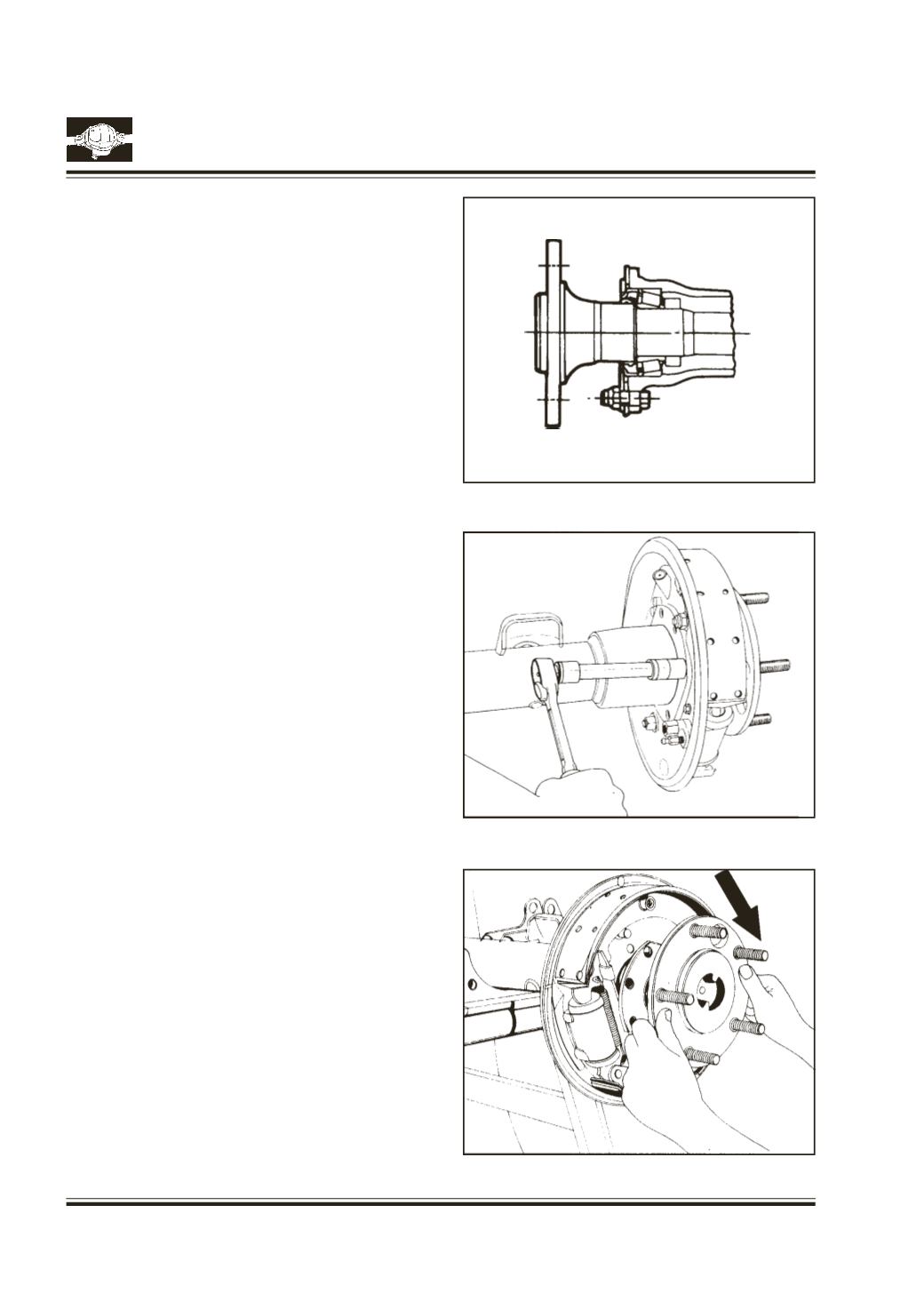

DISASSEMBLY OF REAR AXLE

Unitised wheel bearing lubrication is from hypoid gear

lube, thus it is without grease seal.

Fig. 3

Unscrew and remove backing plate nuts, holding the

brake anchor (back) plate to the axle housing.

Fig. 4

Note : Discard nuts, replace with new ones at the

time of assembly.

Remove the axle shaft.

Fig. 5

Note:

While removing the axle shaft in case the cups

get stuck in the housing, make sure that the

axle shafts sides (LH 8 RH) are not inter-

changed.

This affects the bearing performance as they

are pre-matched bearing sets.

Fig. 3

Fig. 4

Fig. 5
