SAFARI

TRANSFER CASE

ELECTRONIC CONTROL UNIT

Fig. 2.

4WD

PART TIME

ECU

Description

Electronic Control Unit (ECU) is located under the

co-drivers seat. Driver operates a switch to shift the

vehicle from two wheel drive to four wheel drive (and

vice versa) Shifting is possible during driving. (only in

2H to 4H mode).

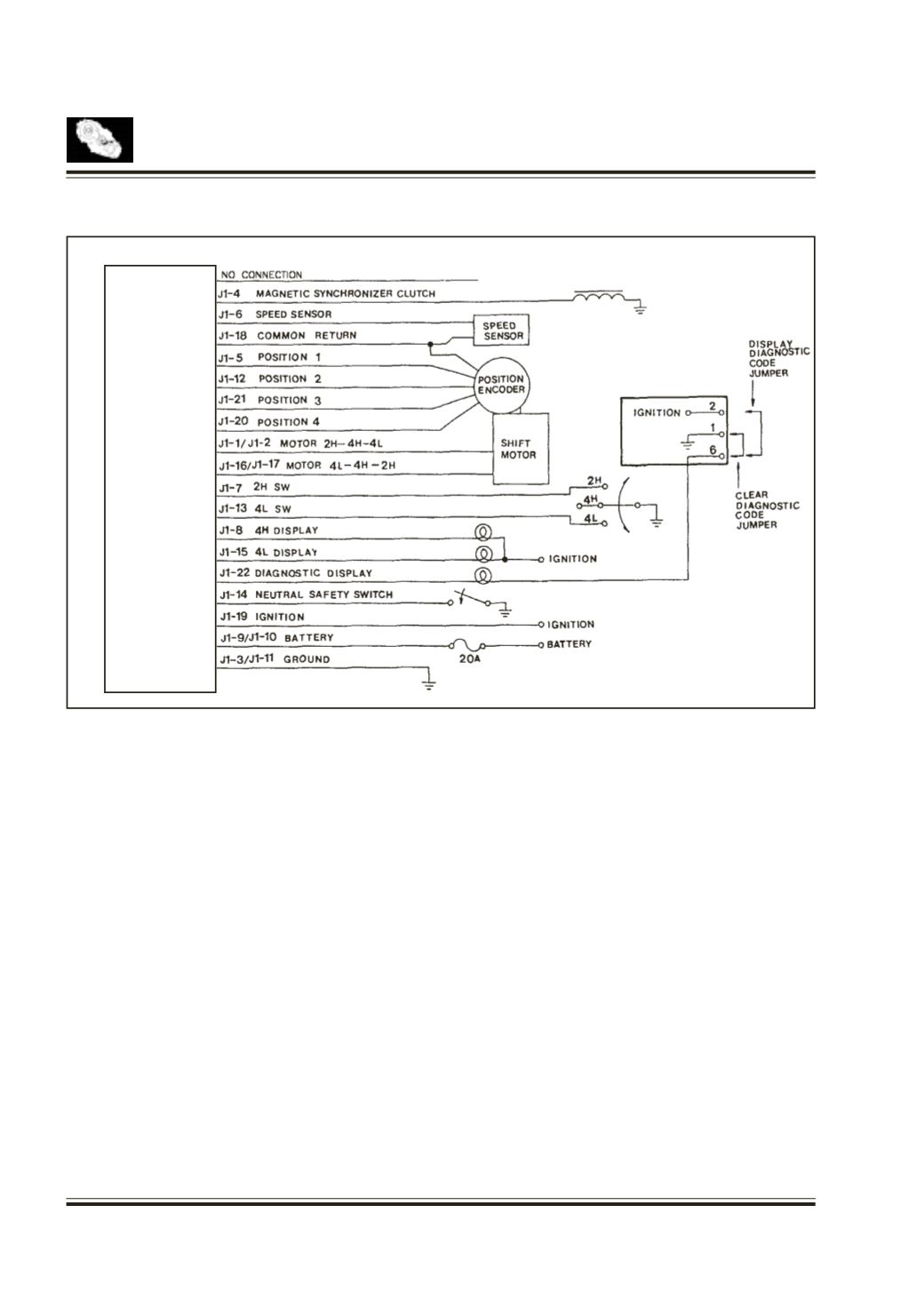

Interconnections between ECU and system blocks

are as shown in

Fig. 2

Operating Transfer Case :

Shifting from 2WD to 4WD

* Position the selector switch from 2H to 4H,

4WD HI indicator light will turn on.

* Shifting is possible during driving.

Shifting from 4WD to 2WD

* Position the selector switch from 4H to 2H,

4WD HI indicator light will turn off.

* Shifting is possible during driving.

Shifting from 4H to 4L

* Stop the vehicle.

* Press clutch pedal.

* Position the selector switch from 4H to 4L,

4WD LO indicator light will turn on.

Shifting from to 4L to 4H

* Stop the vehicle.

* Press clutch pedal.

* Position the selector switch from 4L to 4H,

4WD HI indicator light will turn on.

Fig. 2.
