SAFARI

GEAR BOX G-76

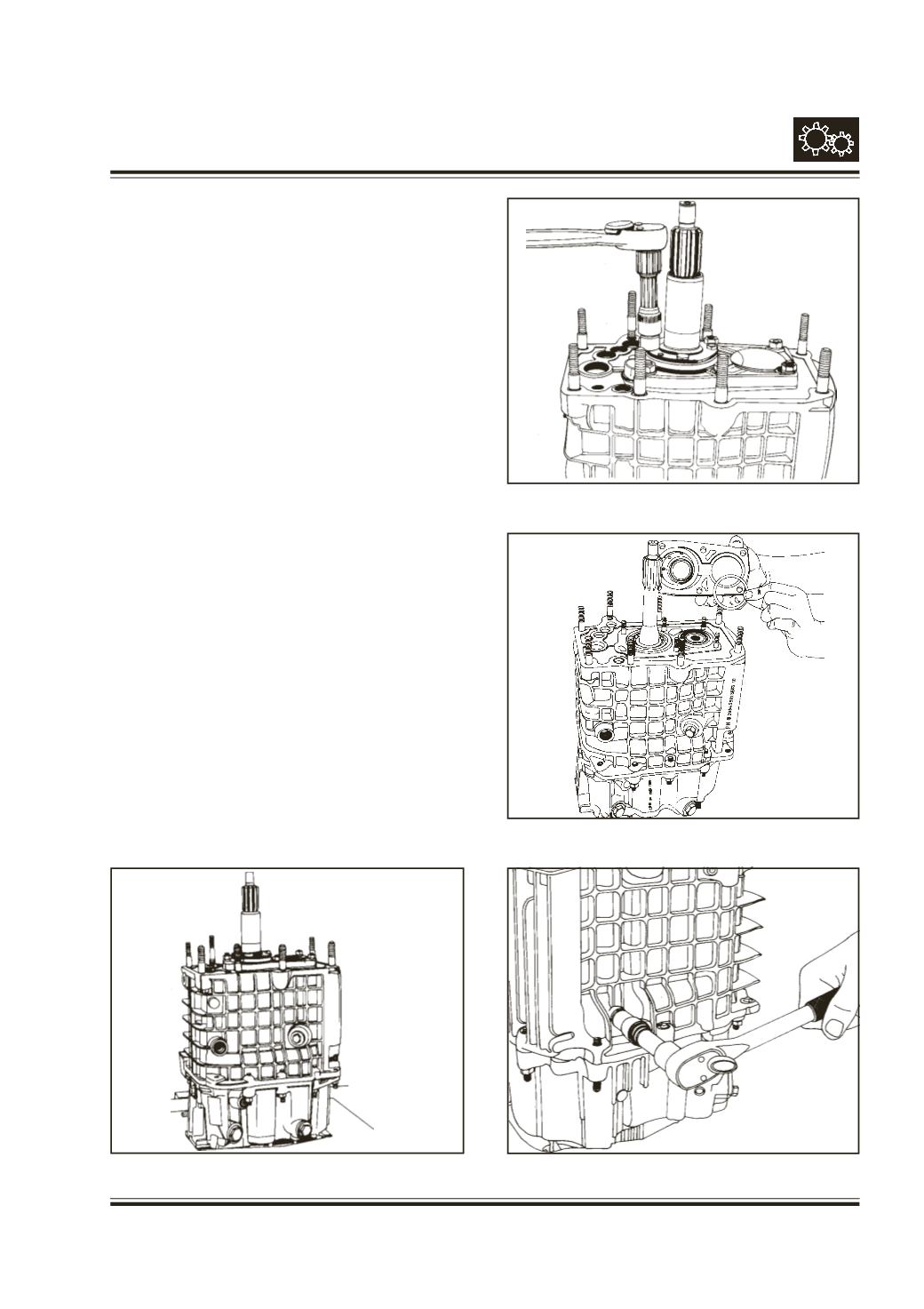

Mount the gear box with up side down such that drive

shaft is facing upwards.

Fig. 9

Loosen screws and pull out Front cover bearing tube (2)

Fig. 10

Loosen nuts and remove Assy. gear case cover - Front

(8). Take out main shaft & Counter shaft bearing play

adjusting shims (10&70a) from cover and keep them

properly.

Fig. 11

Loosen and take out reverse Idler shaft mounting

screw (54) from housing - Front half.

Fig. 12

Fig.12

Fig.11

Fig. 10

Fig. 9
