SAFARI

GEAR BOX G-76

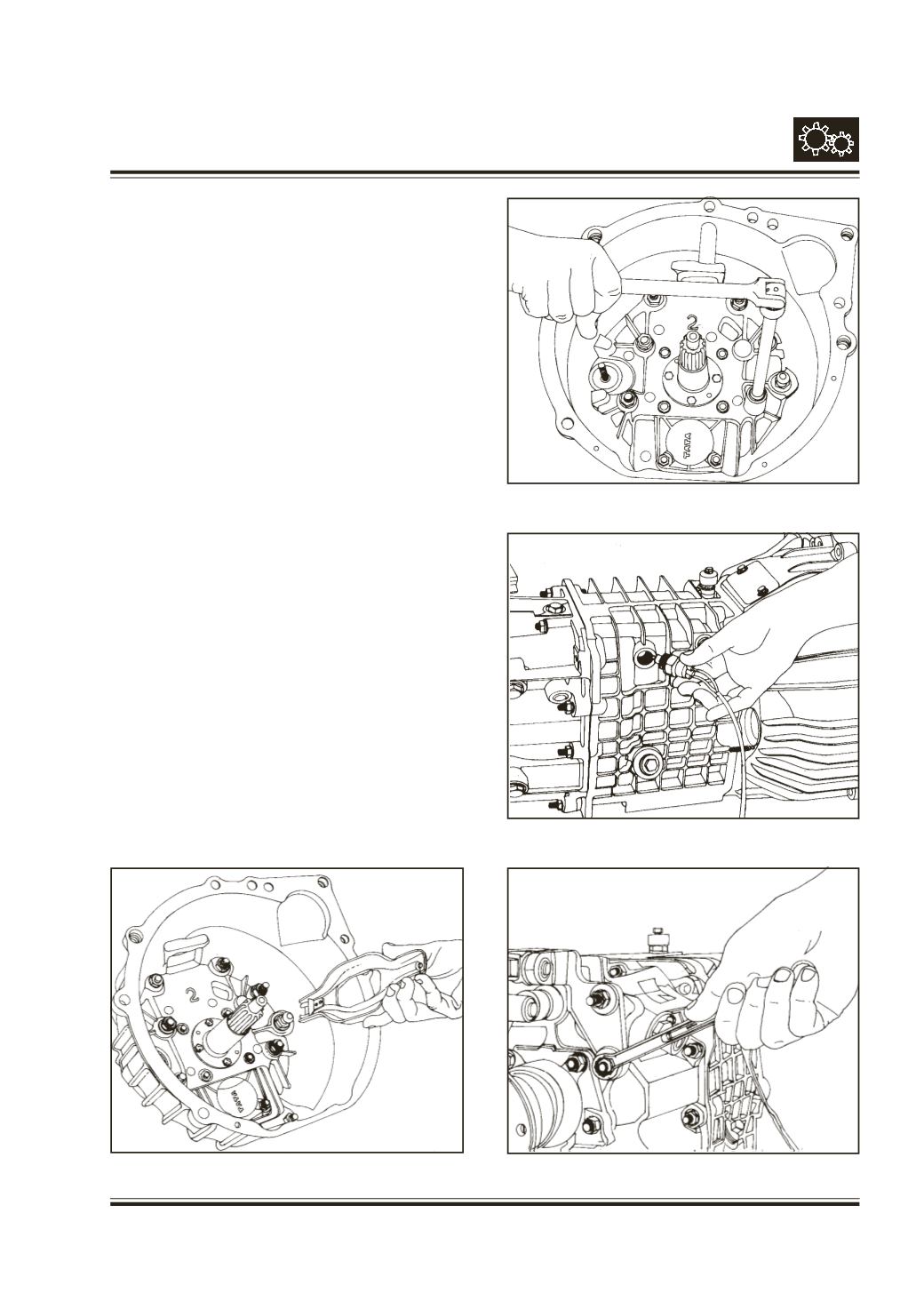

DISMANTLING OF GEAR BOX

(The gear box is removed from the vehicle)

Remove clutch release bearing and fork.

Fig.1

Remove clutch housing by loosening nuts.

Fig. 2

Mount the gear box on drive shaft end face on work

stand (Pt. No. 2573 5890 37 01) fitted with adapter

plate

2654 5890 2613). Drain the oil.

Remove breather (13). Remove reverse light switch

(129)

Fig. 3

Unscrew nuts and loosen extension arm bracket (150)

Fig. 4

Fig. 3

Fig. 2

Fig. 1
