SAFARI

BODY

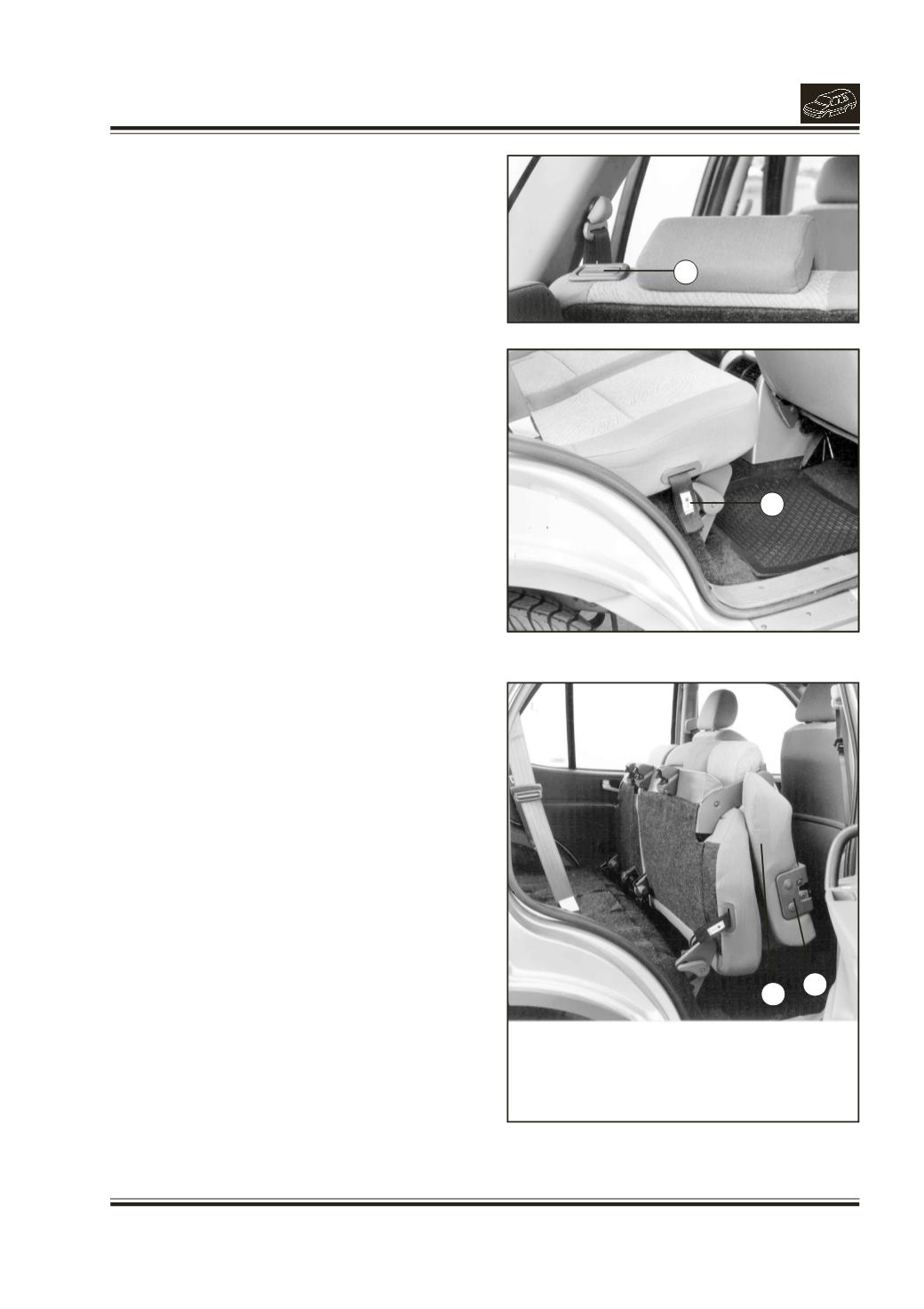

Fig. 24.

LATCH

BACK REST (REAR SEAT)

Fig. 25.

18. REMOVAL/INSTALLATION OF REAR SEATS

(Fig.

24 & 25)

REMOVAL

Release the latches at both side of back rest by

pressing the button A and then pulling the strap

B to fold the back rest.

Remove the mounting screws of rear split seat

from floor and remove the rear seat.

INSTALLATION

Fit the rear seat on the mounting bracket with hex.

screw (M8x20), spr. washers (B8) and bright

washers (8.4), 4 nos. at middle and 2 nos. each at

both sides and tighten the screws.

While installation of seat care should be taken for

seat belt, not to be caught between seat latch

and pin.
