BODY

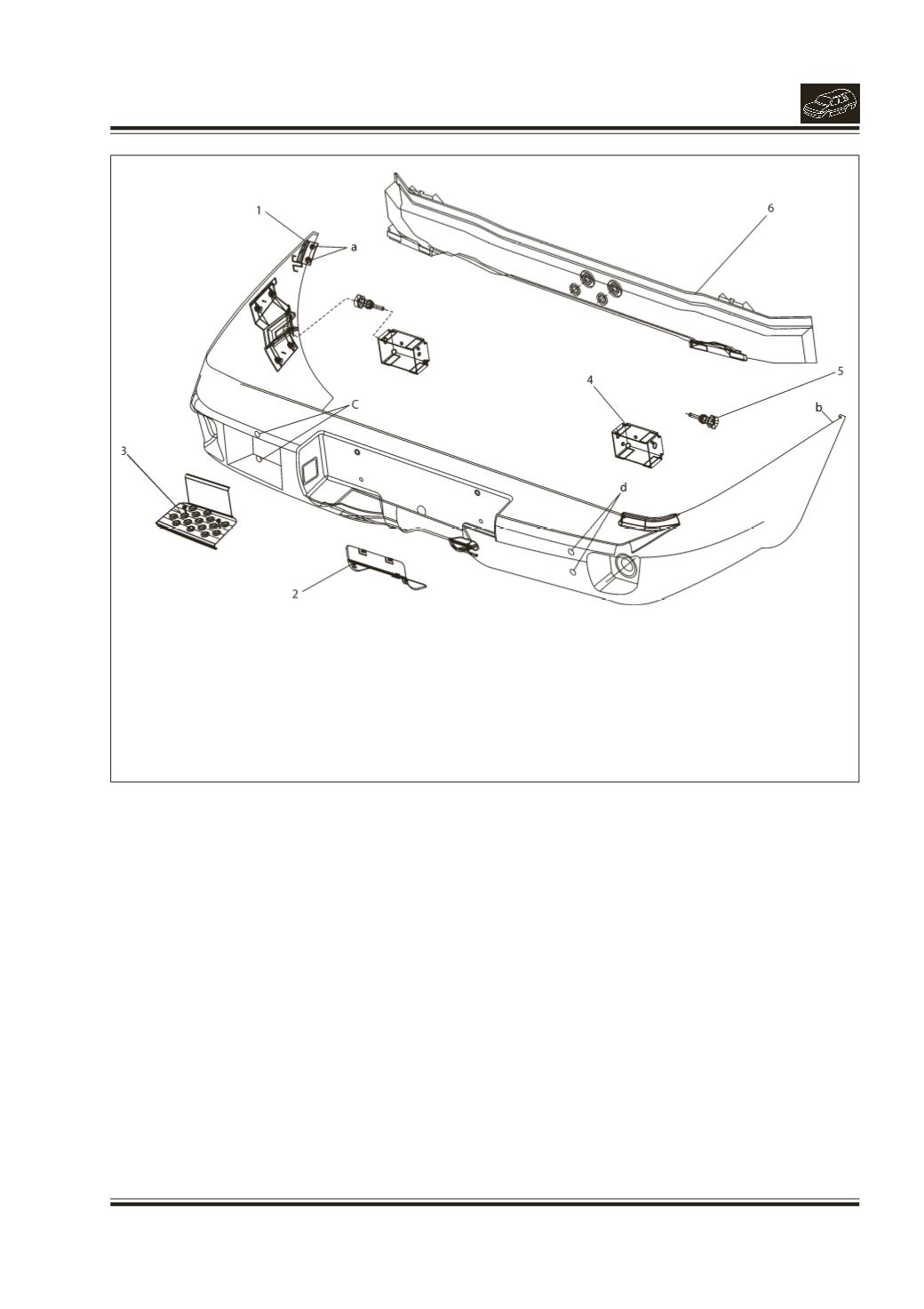

1. Rear Bumper skin
2. Tow Hook Cover
3. Foot step plate
4. Assy. side mtg. brkt. LH/RH
5. Adjusting screw
6. Assy. Rear bumper beam
16. REMOVAL/INSTALLATION OF REAR BUMPER
(Fig. 22)
REMOVAL
l
Remove the two screws of each side strip
mounting bumper with the rear wheel arch at both
sides (at location a, b).
l
Remove the mud flap from the side mounting
bracket from both sides.
l
Remove the electrical connections for fog lamps
and number plate lamps.
l
Support the bumper and remove the two nuts
from each rear mounting bracket from below the
bumper (at location c, d).
l
Pull out the bumper.
INSTALLATION
l
Support the bumper and complete the electrical
connections for fog lamps and number plate
lamps.
l
Loosely mount the bumper on side adjusting
screws.
l
Fit the 2 hex. fl. nuts (M8) and washers (8.4) on
each bracket, loosely from below the bumper
(at location c, d).
l
Adjust the gaps and once they are set tighten the
nuts and adjusting screws.
l
Fit the mud flap on side bracket at both sides.
l
Tighten the two screws of each side strip with the
wheel arch at both sides (at location a, b).
