BODY

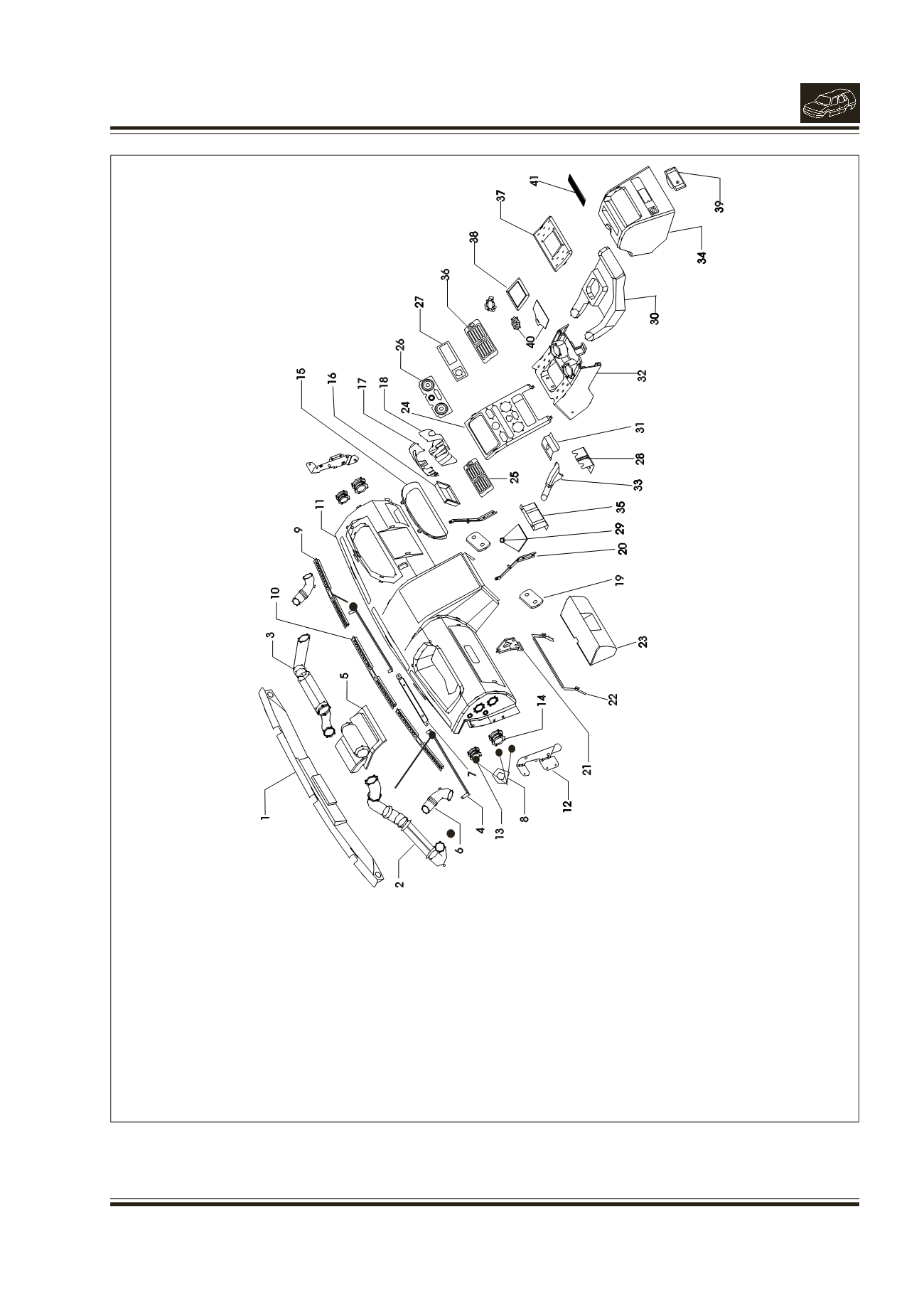

EXPODED VIEW OF DASHBOARD
SR.
PART NAME
NO.
1.
DUCTDEMISTDASHBOARD
2.
ASSY.DUCT DOOR VENT
3.
ASSY.DUCT DOOR VENT RHD
4.
ASSY.KNEE BOLSTER
5.
AIRDISTRIBUTIONBOX RHD
6.
DUCTDOORDEMIST
7.
BKTDISTRIBUTIONBOXMTG
8.
PLUGBUTTON
9.
GARNISHFORW/SDEFROST LH
10.
GARNISHFORW/SDEFROSTCENTER
11.
ASSY.DASHBOARD
12.
ASSYBKTDASHMTG.
13.
BELLOWDOORTODASHUPPER
14.
BELLOWDOORTODASHLOWER
15.
BEZEL INST PACK
16.
COVER FUSE BOX
17.
NACELLEUPPER
18.
NACELLE LOWER
19.
LINK SUPPORTTOKNEETOBOLSTER
20.
ASSY SUPPORT (KNEE BOLSTER)
21.
ASSY STRIKERGLOVE BOXMTG.
22.
FINISHERGLOVEBOX
23.
ASSYGLOVEBOXCOMPLETE
24.
CENTERCLUSTERFRAME
25.
ASSYAIR VENT (CENTER CLUSTER)
26.
ASSY CONTROLS (HVACUNIT)
27.
ASSYASHTRAY FRONT
28.
BKT.FLOOR CONSOLEMTGFRONT
29.
GAITOR FORGEARSHIFT LEVER
30.
DUCT CONSOLE REAR VENT
31.
BKT.CONSOLEMTG.MIDDLE
32.
FLOORCONSOLEHSG.FRONT
33.
ASSY.COVER FOR HAND BRAKE
34.
FLOORCONSOLEHSG.REAR
35.
BKT.REAR FLOOR CONS.MTG.
36.
ASSY AIRVENT (FLOOR CONSOLE)
37.
COVER FLOOR CONSOLE
38.
SURROUNDGEARSHIFT LEVER
39.
ASYASHTRAYREAR
40.
MAT CONSOLE FRONT
41.
MAT CONSOLE REAR
a
c
b
