BODY
10. REMOVAL/INSTALLATION OF WINDOW GLASS
(Fig. 13)
REMOVAL
l
Remove the inner trim
l
Pull out required portion of plastic membrane.
l
Disconnect window winding motor connector
from wiring harness.
l
Lower window glass by connecting 12V battery
to motor.
l
Remove 2 mounting screws & nuts and lift up the
glass carefully.
INSTALLATION
l
Insert the door glass in the window slot properly.
l
Align mounting holes of door glass and regulator.
Fit 2 screws (M6x10) and tighten the screws with
nuts.
l
Roll up and down the glass and ensure that glass
is moving without binding. Ensure that there is no
gap between glass and glass run mould, when the
glass is lifted up. Use 12V battery for rolling up
and down the glass.
l
Connect window winding motor connector to
wiring harness.
l
Apply sealant (Butyl mastic) on the door inner
panel and fix plastic membrane on it.
l
Fit the inner trim.

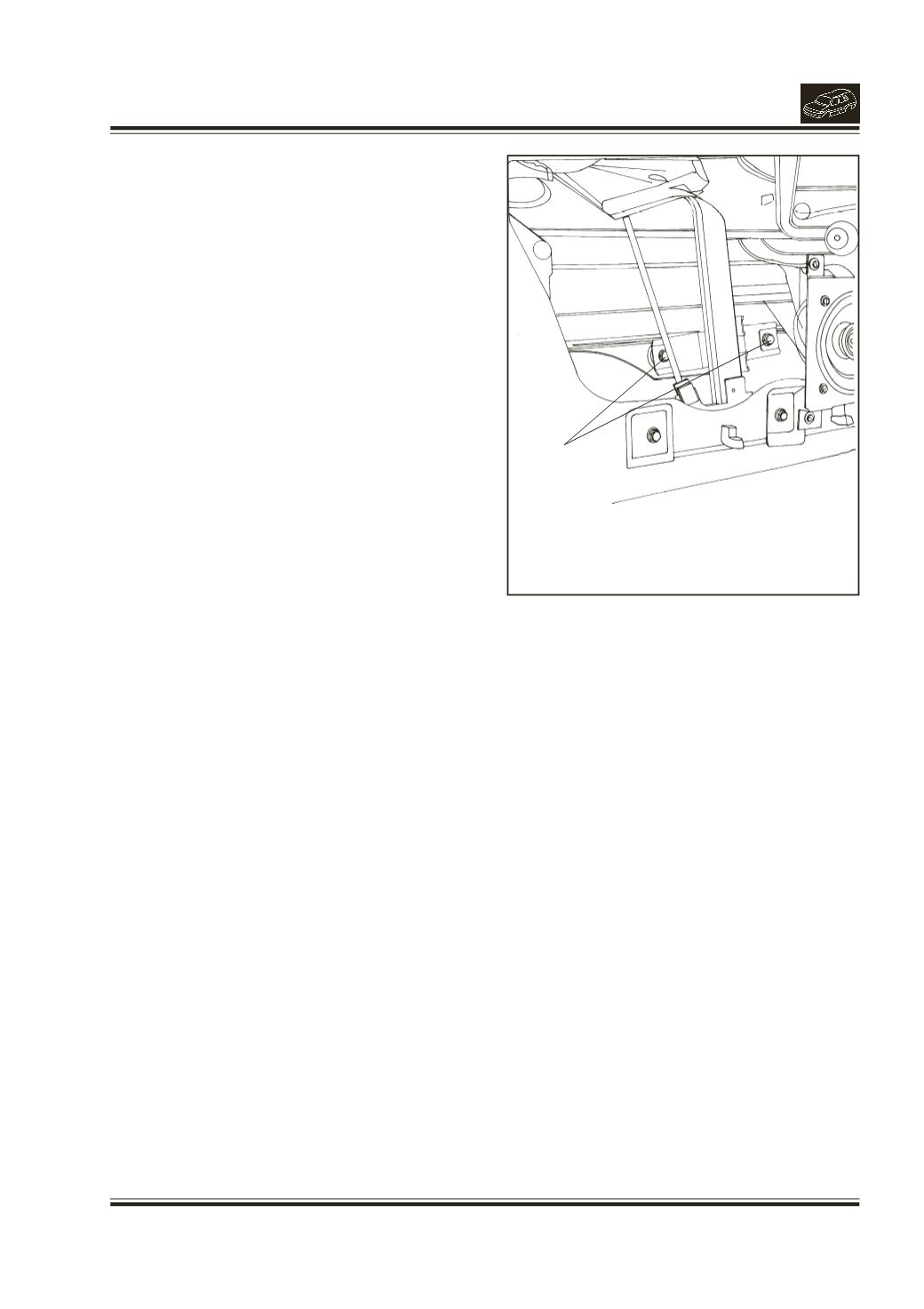

Fig. 13.
1.
WINDOW GLASS MOUNTING SCREWS
1
