1502 / 1526
13
BODY
8. REMOVAL/INSTALLATION OF DOOR INNER
HANDLE
(Fig. 9 & 10 )
REMOVAL
l
Remove inner handle housing screw 2 and then
remove housing.
l
Remove the inner trim.
l
Pull out required portion of plastic membrane.
l
Disconnect links from inner handle.
l
Remove 3 mounting screws.
l
Remove inner handle.
INSTALLATION
l
Locate inner handle on the door panel
l
Install a washer, cr. pan. hd. screws (M6x16) and
tighten the screws.
l
Connect links to inner handle properly.
l
Apply sealant (Butyl mastic) on the door inner
panel and fix the plastic membrane on it.
l
Fit the inner trim.

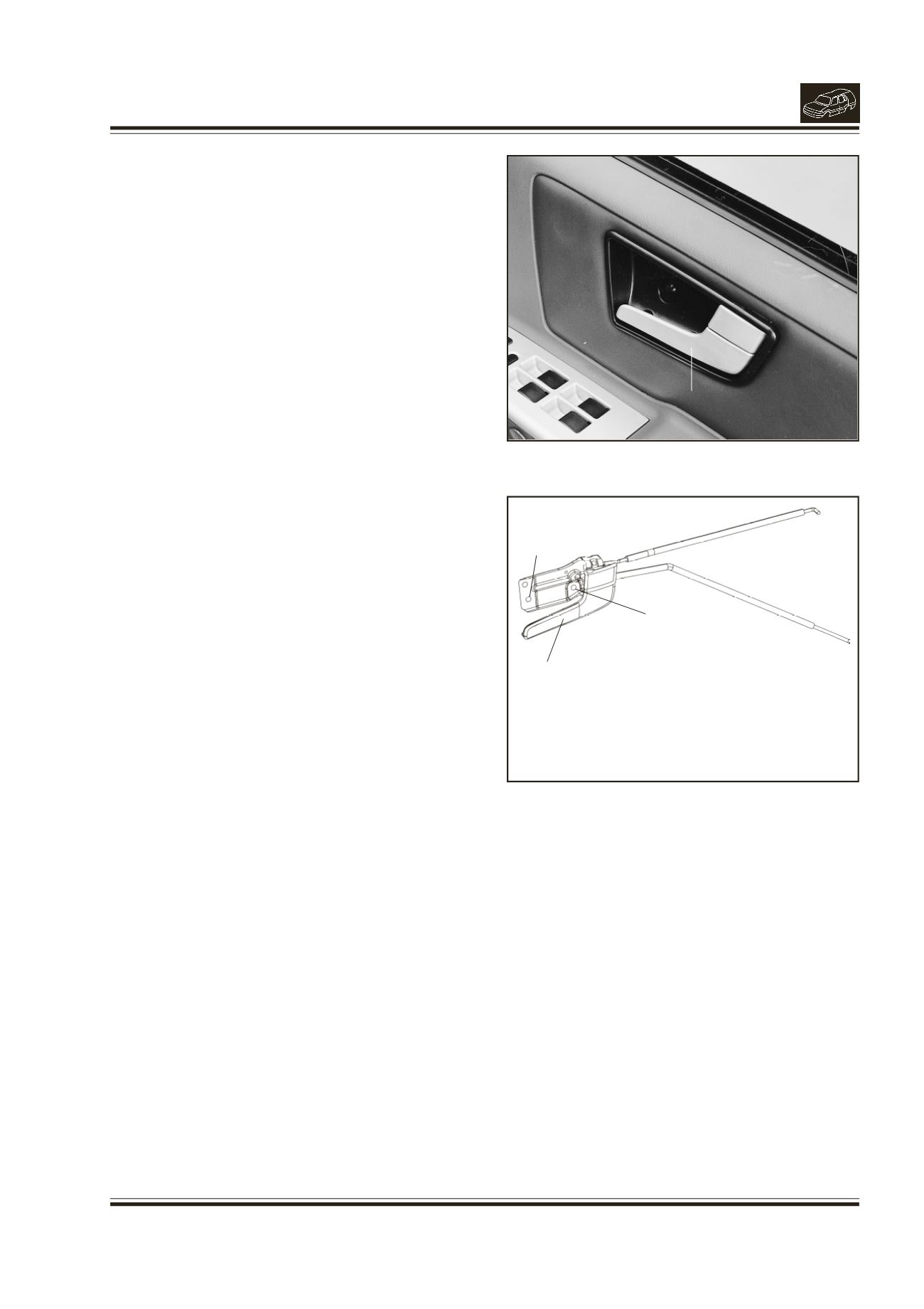

Fig. 9.
1.
MOUNTING SCREWS
2.
HOUSING SCREW
3.
INNER HANDLE REAR DOOR
1
3
2
Fig. 10 Assy. door handle inner
DOOR INNER HANDLE
