3. REMOVAL/INSTALLATION OF FRONT/REAR

DOOR INNER TRIM

(Fig. 1 & 2)

REMOVAL

Note :

Disconnect battery before doing repair work

on the body.

l

Open the door.

l

Remove 2 mounting screws of door pull and

remove the door pull.

l

Remove the mounting screw of inner handle cover

and door pull. Remove the cover and door pull.

l

Remove the decorative caps at the top 1 No. for

front and 2 No. for rear door and remove 3

mounting screws viz. 1 at side and 2 at bottom for

front door. (3 at side and 2 at bottom for rear door

trim)

l

Pull out the door trim halfway and disconnect

power window switch connector, speaker

connector and courtesy lamp connector.

Disconnect mirror switch connector for driver

door.

l

Remove the trim.

INSTALLATION

l

Replace the trim fixing clips.

l

Locate the trim on the door.

l

Connect courtesy lamp connector and power

window switch connector to speaker connector

wiring harness. Connect mirror switch connector

for driver door.

l

Ensure that 7 trim clips are properly located in

mounting holes for front door (6 trim clips for rear

door).

l

Press the trim on the door properly.

l

Fit the (door pull) using 2 sl. ch. screws and tighten

the screws.

l

Fit the cover of inner door handle with cr pan hd

screw M6x16.

l

Fix decorative caps. (1 for Front & 2 for Rear Door

Trim)

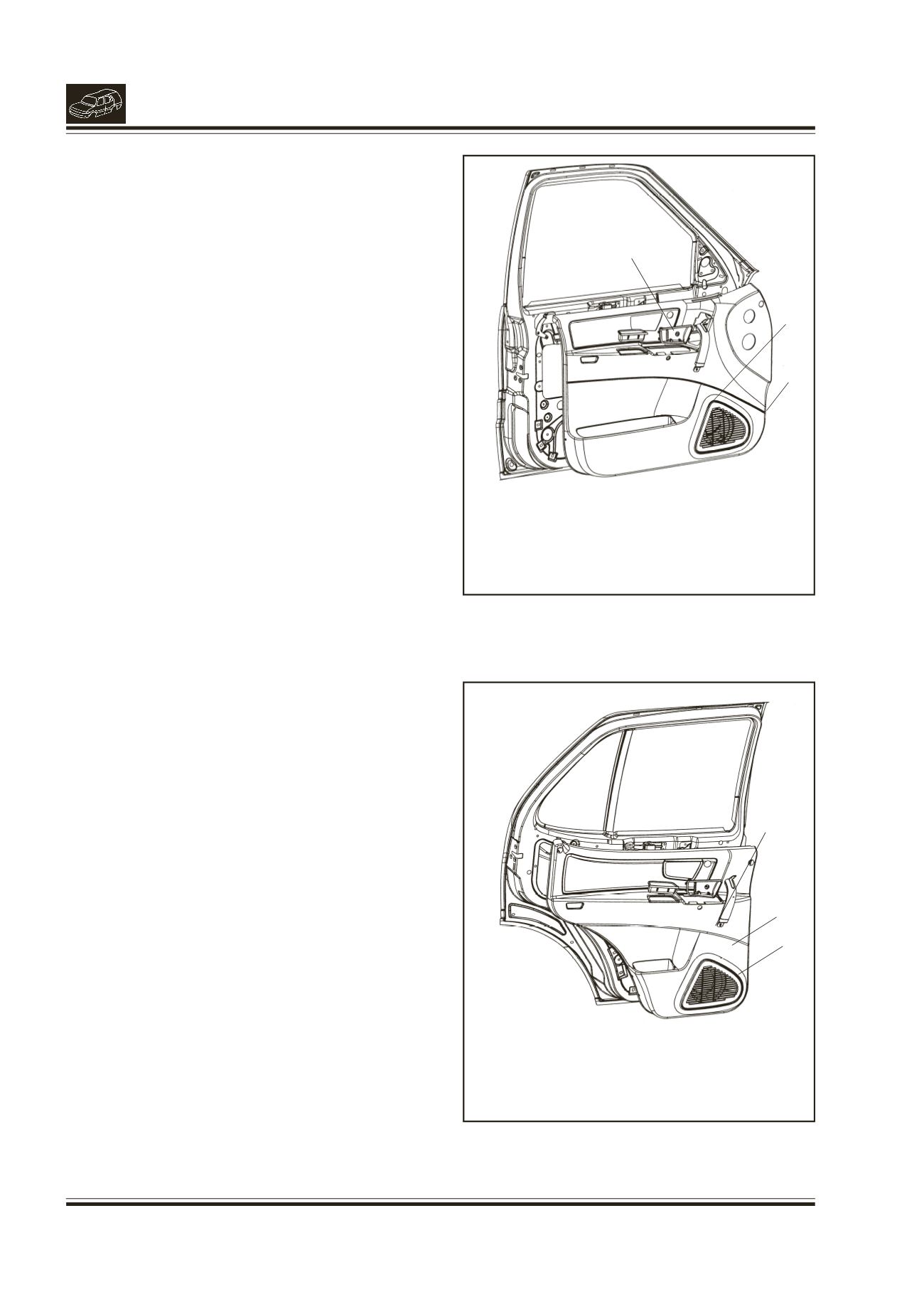

Fig. 1 - Front Door

Fig. 2 - Rear Door

1

2

3

1.

INNER HANDLE COVER

2.

DOOR PULL

3.

DOOR INNERTRIM

1

2

1.

INNER HANDLE COVER

2.

DOOR PULL

3.

DOOR INNERTRIM

3
