REVERSE GUIDE SYSTEM :
The reverse guide system (RGS) provides un-
obstructed view of what is right behind the vehicle.
This reduces the blind zone behind the vehicle almost
by 99% while parking or reversing the vehicles in
narrow, congested spaces / on busy streets.
Reverse Guide System consists of CCD Camera
installed on the Bumper tow cover & LCD TFT Monitor
(Screen) integrated in Inner Rear View Mirror. These
are connected with set of power cables. The display
on LCD Screen gives clear view of what is behind the
vehicle.
Kit-Reverse Guide System consists of:
Sr
Part Description
TML Part No.
No.
01 Camera CC-CBB 808 2699 5421 9991
02 Module Box
2699 5421 9992
03 Metal Pad Lock
2699 5421 9993
04 Mirror cum Monitor
2699 8110 0276
MR-201
05 Stem Mount
2699 8110 3805
06 Camera side wiring set 2699 5461 9971
07 Mirror side wiring set
2699 5461 9972
08 Camera Cap
2699 8660 6322
09 Cap washer/Ring/Base 2699 8660 6321

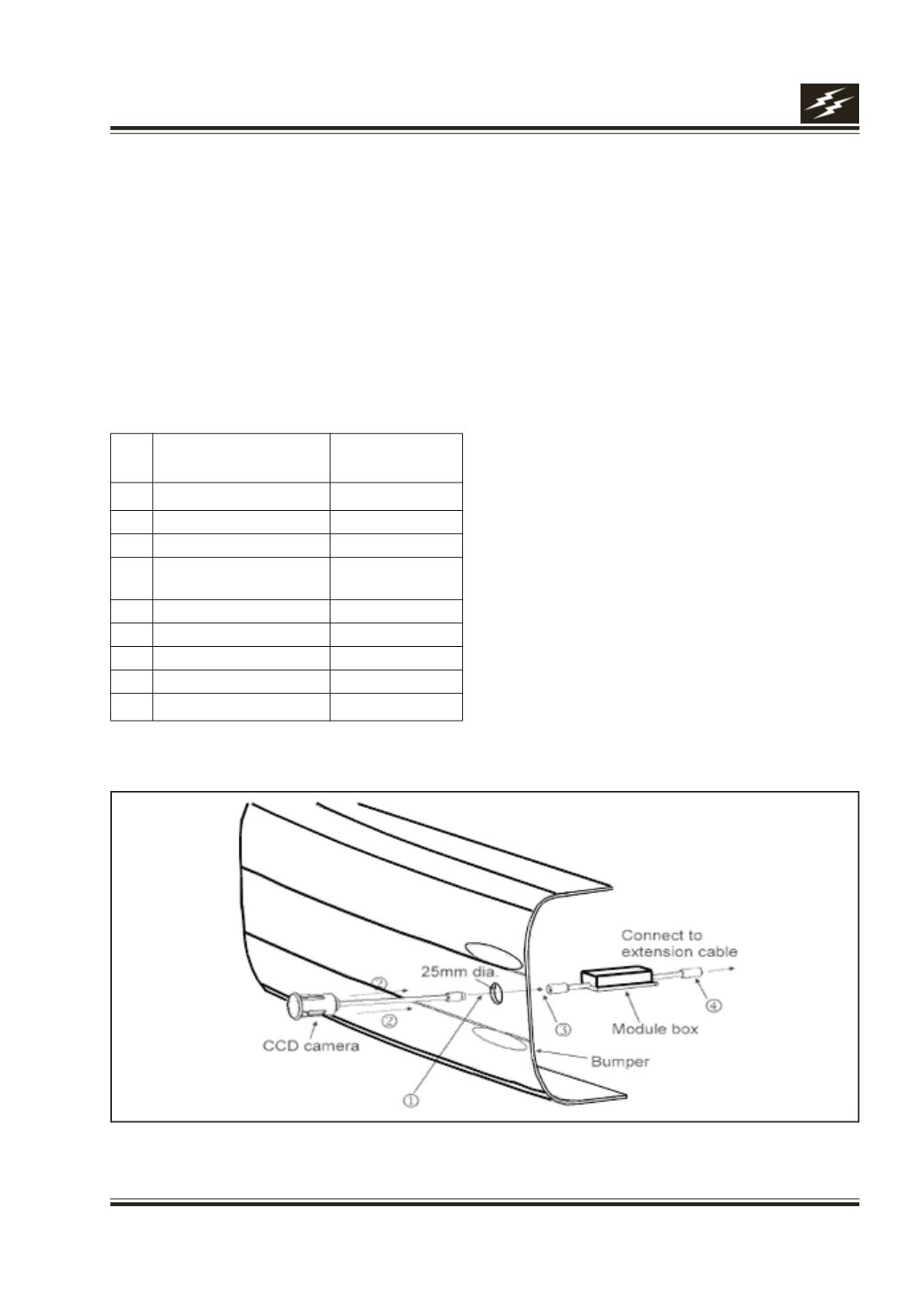

Exploded view of Camera assembly
